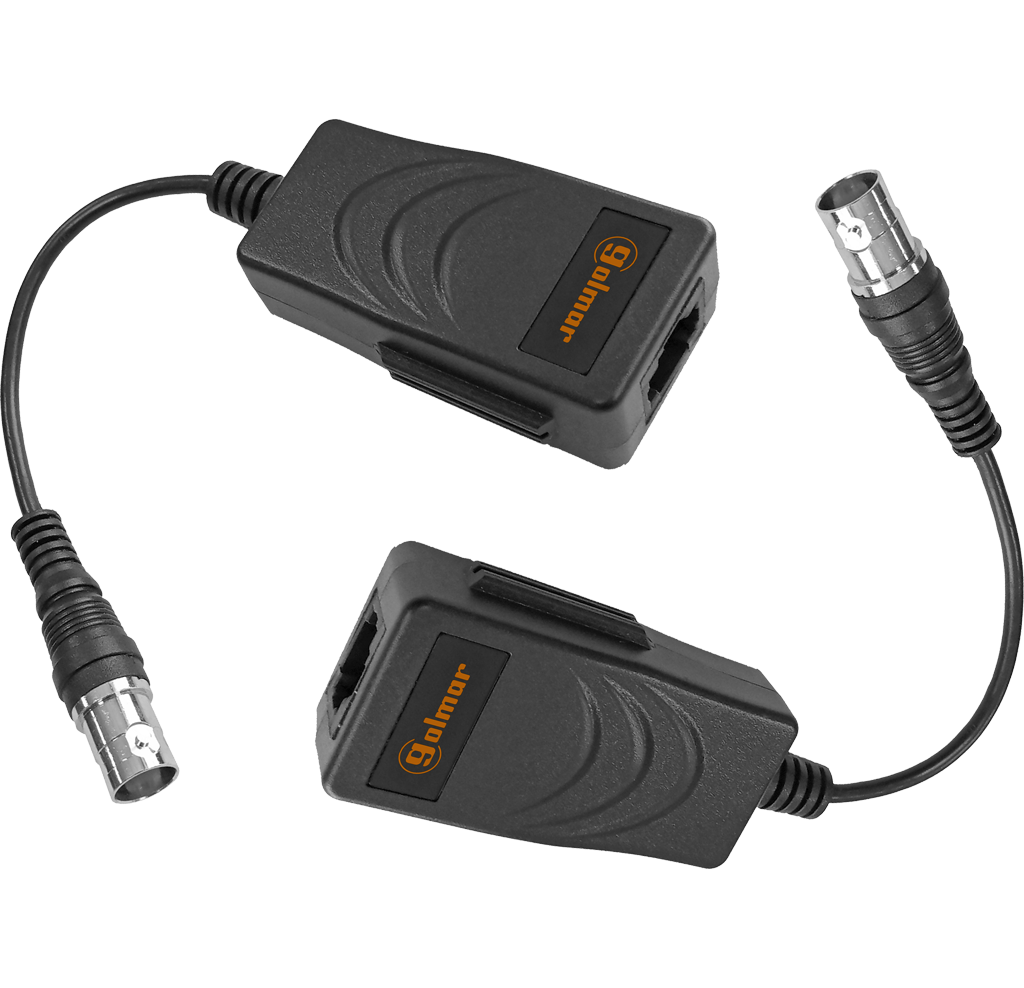

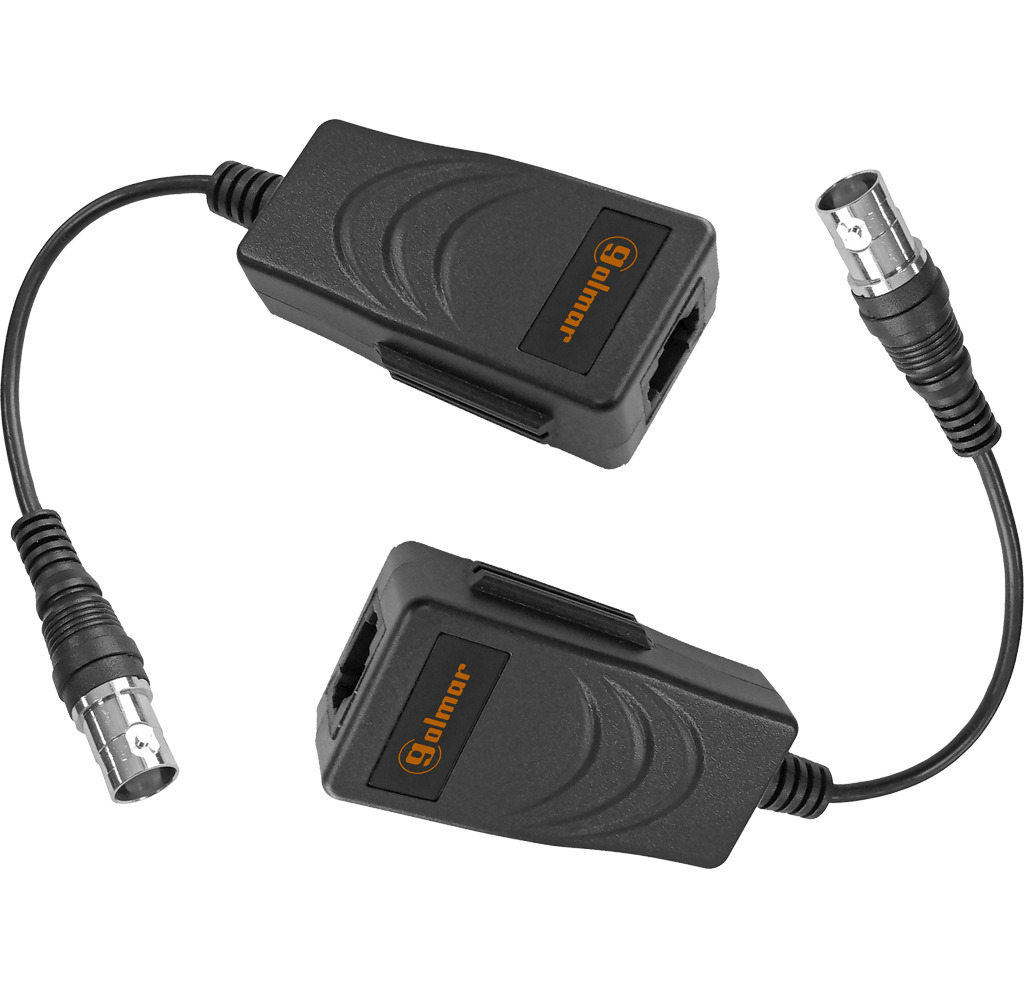

EOC-7001 Ethernet to coaxial converter kit
Reference : EOC-7001
Product code: 31600506
EAN code : 8429898034287
- 1-channel IP converter over coaxial cable
- Transmits Ethernet signal via coaxial cable
- Maximum transmission distance of up to 200 m
- Access control and physical layer specification compliant with IEEE802.3, 10BASE-T and 100BASE-T
- Passive device, no power supply required
- Real-time transmission
- Integrated TVS for surge protection
- Compact size, easy to install
- ABS housing
Video
Ethernet port: 10/100 Mbps
Impedance: UTP: 100 Ohm / Coaxial: 75 Ohm
Distance: Up to 200 m (100 Mbps)
Power supply: No additional power supply required
Connectors
Video port: RJ45 (female)
Video port: BNC (female)
Protection level
Surge protection type: Renewable solid protection
Coaxial surge protection: 2KV (common mode), 10/700 ,s IEC6100-4-5/1955 (GB/T 1726, 5-1999)
Twisted pair surge protection: 2KV (differential mode), 10/700 ,s IEC6100-4-5/1955 (GB/T 1726, 5-1999)
Operating environment
Storage temperature: -20 to 85,
Humidity: 0~95%
Physical properties
Dimensions (Length * Width * Height): 115 mm x 82 mm x 22 mm
Housing: ABS plastic
Colour: Black
Weight: 90 g
Reliability
MTBF: Mean time between failures >20,000 h
