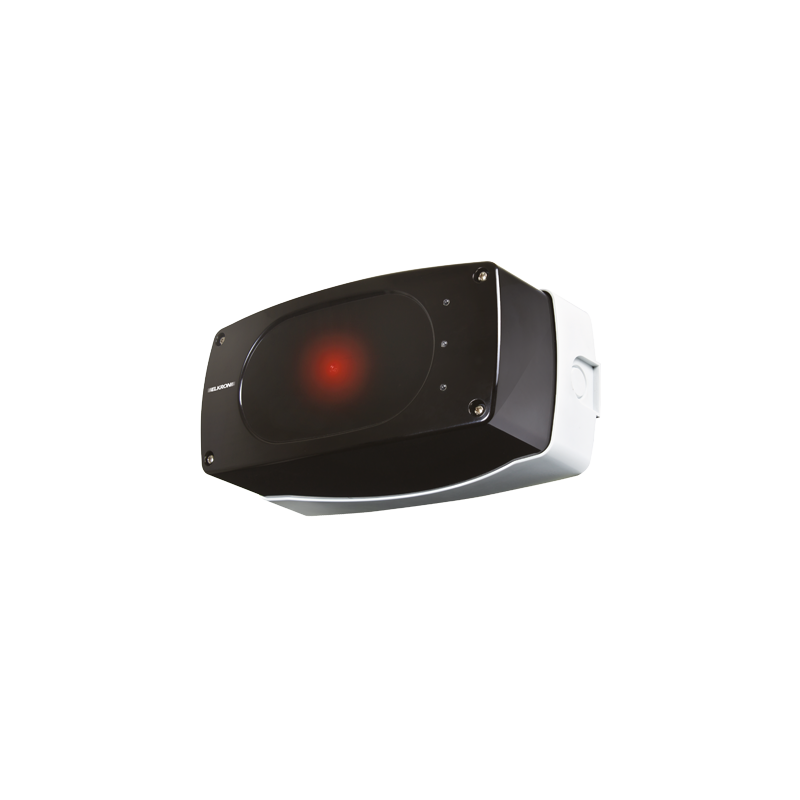

Analog Linear Barrier

• Power supply voltage (through detection line): 20 V DC (-15%, +10%) modulated
• Average consumption (normal conditions): 250 ,A at 20 V DC
• Average consumption (alarm conditions): 2 mA at 20 V DC
• LED indicators: Alarm 2, Alarm 1, Normal operation, Fault, Maintenance
• Alarm 1 attenuation threshold: 20%, 25%, 30%, 35%
• Alarm 2 attenuation threshold: 35%
• Fault attenuation threshold: 95%
• Beam misalignment tolerance (Tx Rx unit and passive reflector): ±0.5°; ±5°
• Maximum alarm/functional relay output current: 2 mA
• Self-calibration
• Built-in short-circuit isolator
• Alarm relay output voltage: 20 V DC (-15%, +10%)
• Maximum alarm/functional relay output current: 2 mA
• Range: 5-20 m with reflector code RIFLE20; 20-50 m with reflector code RIFLE50; 50-100 m with reflector
• Operating temperature: (-10 ± 3)°C to (55 ± 2)°C
• Protection class: IP55
• Dimensions (W x H x D): 248 x 122 x 120 mm
• Weight: 900 g
• Certificate of conformity with EN54 Part 12 Final 17, No. 1293-CPR-0857
• Reflector not included
