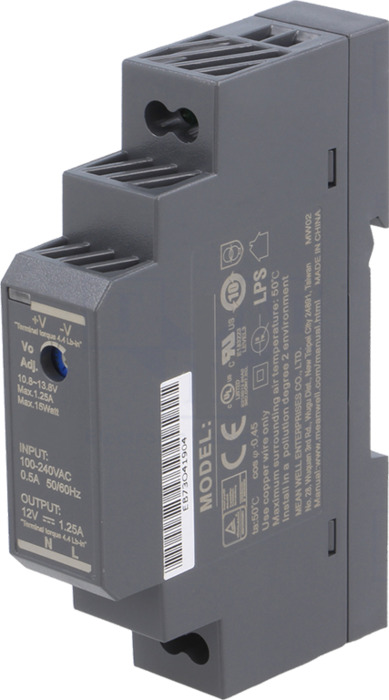

HRF-12/1,25A local power supply for monitors G+
Reference : HRF-12/1,25A
Product code: 10900012
EAN code : 8429898024288
- Local power supply for monitors G+.
- Stabilised power supply 12 VDC / 1.25A.
- Supply voltage 85 ~ 264V.c.a.
- Installation on DIN rail.
Dimensions: 17,5(W) x 90(H) x 58,4(D) mm.
More information
- Stabilised power supply 12Vdc / 1.25A.
- Supply voltage 85 ~ 264V.c.a.
- Protection against overload, short circuit, overheating and voltage increase.
- Frequency range 47 ~ 63Hz.
- Working temperature -20...+60°C.
- DIN rail installation.
- Dimensions: 17,5(W) x 90(H) x 58,4(D) mm.
| Specifications | |
|---|---|
| Input voltage (Vac) | 85 |
| Output voltage (Vac) | 85 |
| Output voltage (Vdc) | 12 |
| Adjustable output voltage | Yes |
| Output current (A) | 1.25 |
| Input frequency (Hz) | 47 |
| Ground terminal | No |
| Electrical protection | Cortocircuito,Sobretensión,Sobrecarga |
| With backup battery | No |
| Batteries included | No |
| Battery charger | No |
| Terminals | 1 |
| Certifications | 0 |
| Mounting | 1.25 |
| Manufactured according to Norma. | 58.4 |
| Material | 1.25 |
| Rest consumption (W) | 0 |
| Max. consumption (W) | 15 |
| Maximum working temperature (ºC) | 70 |
| Minimum working temperature (ºC) | -30 |
| Relative humidity work (max.) | 90 |
| Relative humidity Work (min.) | 20 |
| Dimensions - High (mm) | 90 |
| Dimensions - Width (mm) | 17.5 |
| Dimensions - Deep (mm) | 58.4 |
