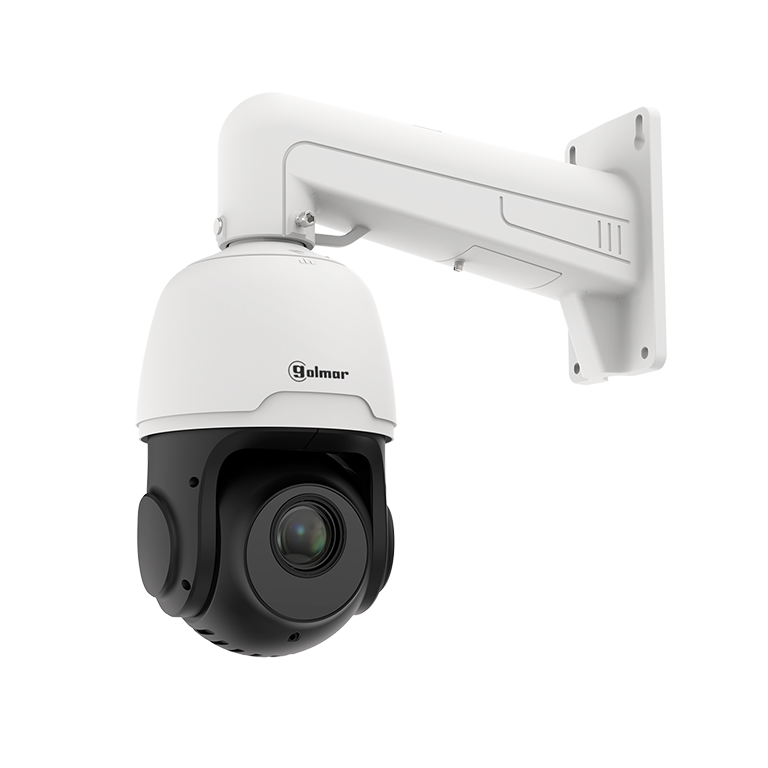

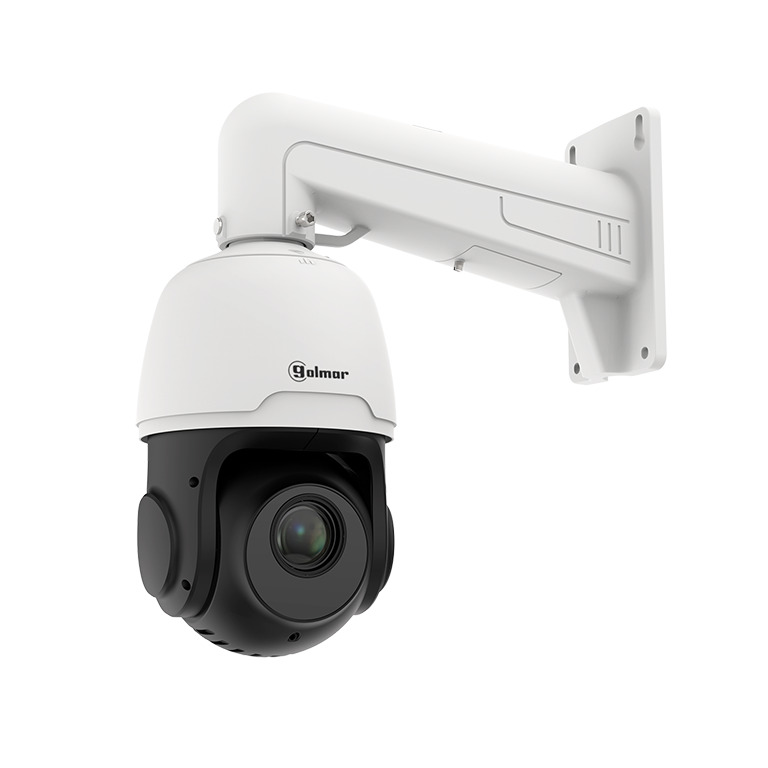

PTZ-25X2IPT 2Mpx camera with motorized lens and autotracking
Reference : PTZ-25X2IPT
Product code: 31600335
EAN code : 8429898026060
- PTZ dome with IP technology
- Full HD 1080p resolution
- 25x optical zoom
- Focal length 5-125mm
- IR distance up to 100m
- ONVIF compatibility (Profile S, G, T)
- 120dB True WDR
- Video Analytics Functions
- Intelligent auto tracking function
- Dynamic privacy zones
- Dimensions: 160 (Ø) x 270 (H) mm
- Weight: 2.5 kg
More information
| Specifications | |
|---|---|
| Type | PTZ |
| Technology | IP |
| Image sensor | 1 |
| Max. Resolution | 2Mpx |
| Colour | Blanco |
| Mounting | Pared |
| Lense | Motorizada |
| Focal length | 5-125 mm |
| Max. Aperture ratio | F1.5 |
| Horizontal field of view (º) | 56.9° - 2.9° |
| Vertical field of view (º) | 32.2° - 1.6° |
| Night vision mode | Día/Noche |
| IR distance max. (m) | 100 |
| Pan range | 360º |
| Pan speed | 0.6° - 80°/s; Velocidad preset 120°/s |
| Tilt range | -10º a 90º (con auto flip) |
| Tilt speed | 0.6° - 80°/s; Velocidad preset 100°/s |
| Presets | 255 |
| Scan A-B | 1 |
| Pattern | 4 |
| Autotracking | Yes |
| WDR | Yes |
| Additional functions | AWB,BLC,AES,DNR,3D-DNR |
| Bitrate | 8 kbps hasta 8192 kbps |
| Main Stream (FPS) | 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub Stream (FPS) | 25 fps (640 × 480, 320x240) |
| Video compression | H.264,H.265,H.265+ |
| Audio compression | Blanco |
| Video Analysis | LCD,PID,PD,VD,FD,SOD,CC,CD,QD,HM |
| Internal storage | No |
| Vehicle speed (Km/h) | 0.6° - 80°/s; Velocidad preset 100°/s |
| Network interface | RJ45 |
| Integrated WiFi | No |
| Remote Access / App | Web,App GolmarView,VMS Pro |
| Compatibility | Blanco |
| Degree of protection (IP) | 65 |
| Material | 25 fps (1920 Ã 1080, 1280 Ã 960, 1280 Ã 720) |
| Maximum working temperature (ºC) | 60 |
| Minimum working temperature (ºC) | -30 |
| Relative humidity work (max.) | 90% |
| Input voltage (V) | 12Vcc,PoE |
| Included power supply | No |
| Max. consumption (W) | 22 |
| Dimensions - High (mm) | 270 |
| Dimensions - Diameter (mm) | 160 |
| Weight (gr.) | 2500 |
| Certifications | CE,RoHS |
