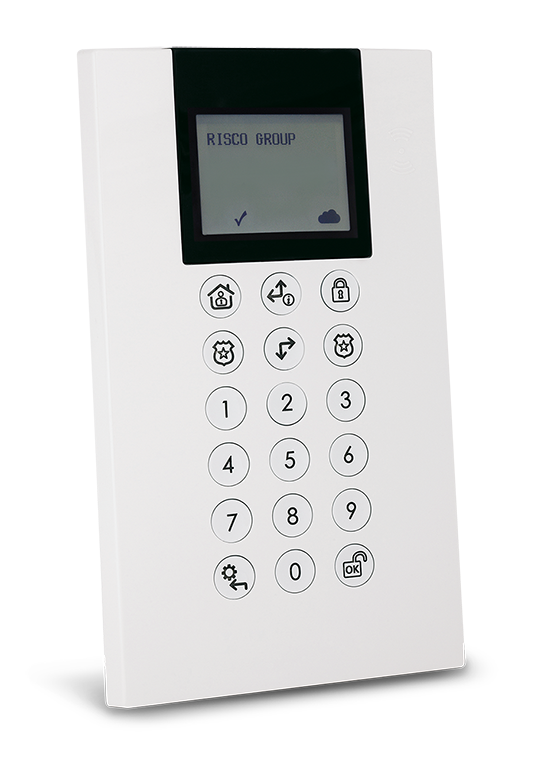

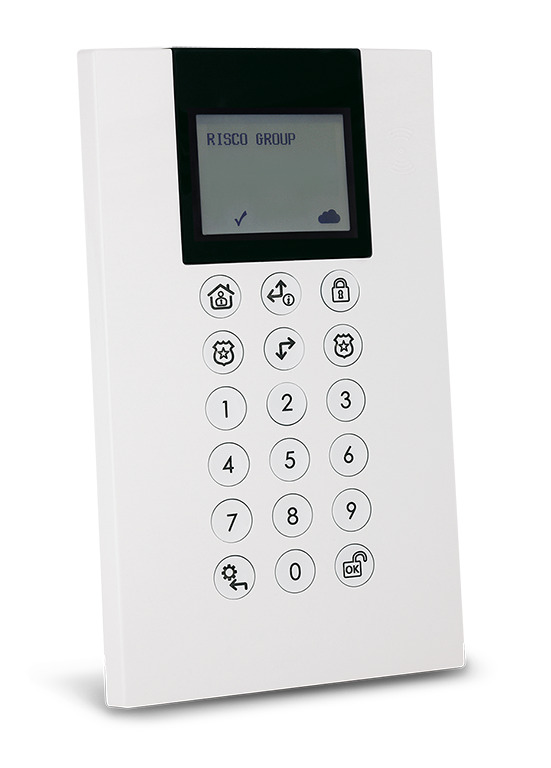

Wired Grade 2 keypad for LightSYS+ control panel
Reference : RP432KPP
Product code: RP432KPP200
EAN code : 848584011612
- White graphic display
- White backlit membrane keypad
- 4-wire BUS connection3
- Maximum distance from control panel: 300 m
- Maximum power consumption: 180 mA
- Includes 13.56 MHz proximity reader
- Dimensions: 178(W) x 103(H) x 38(D) mm
More information
| Specifications | |
|---|---|
| Installation | 4 hilos BUS |
| Technology | 1 |
| Serie | LightSys + |
| Grade of security | 2 |
| Assignable to an area | Yes |
| Proximity reader | Yes |
| Number of buttons | 18 |
| Signaling | Led,Pantalla,Acústicamente |
| Tactile | Yes |
| Use | Interior |
| Colour | 1 |
| Voltage | Interior |
| Material | 1 |
| Dimensions - High (mm) | 178 |
| Dimensions - Width (mm) | 103 |
| Dimensions - Deep (mm) | 38 |
