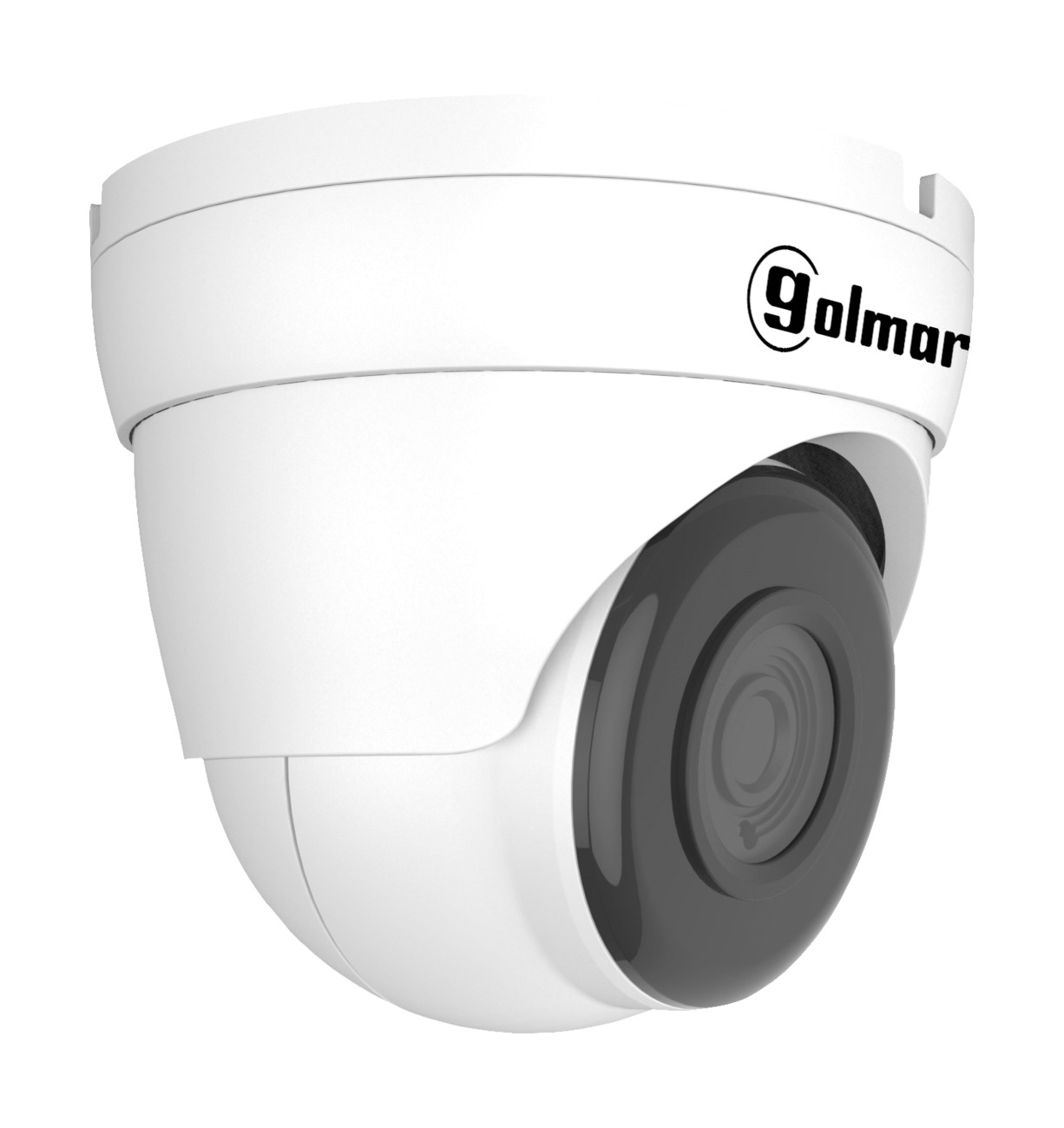

AHD4-21D2 dome camera with 2.8mm optics

Reference : AHD4-21D2

Product code: 31600701

EAN code : 8429898024523

  • Type Domo
    Technology Analogue
    Image sensor IMX307 1/2.8" Progressive CMOS
    Video format HDTVI / HDCVI / AHD / CVBS
    Maximum resolution 2 MPx
    Video output 1 x BNC
    Lense 2.8mm
    Minimum illumination 0 lux
    Day / Night
    Max. infrared range 30m
    Additional functions WDR, BLC, 3D DNR, AGC, ATW, Mirror
    Audio (RCA) No
    Built-in microphone No
    Base compatible C-BASE01 and C-BASE02
    Protection rating (IP) IP66
    Material Aluminium
    Operating Temp. -30°C ~ 55°C / 90% RH
    Power consumption 3,5 W (300mA)
    Power supply 12Vdc
    Dimensions Ø100 x 90mm
    Weight 454 g
