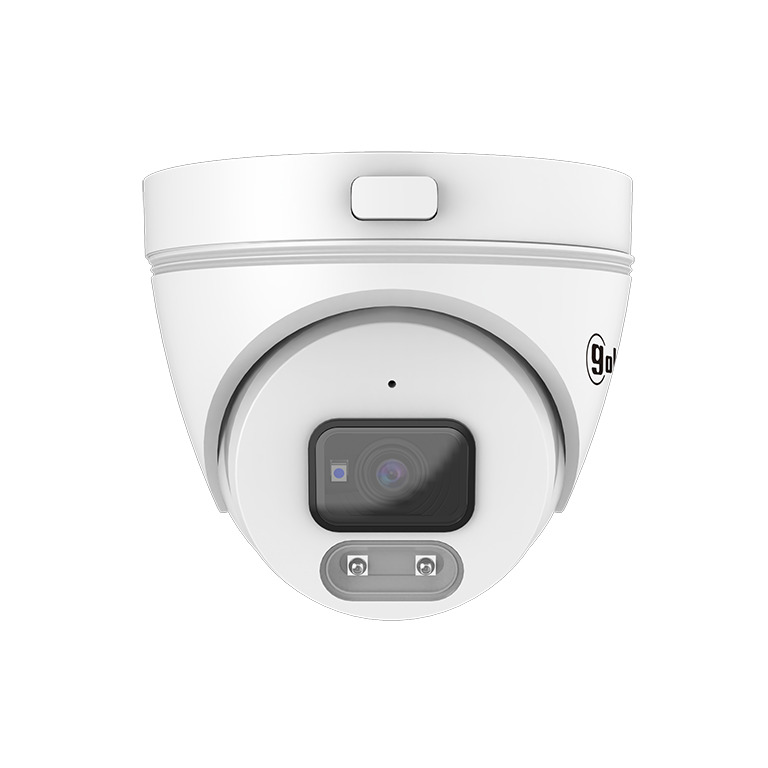

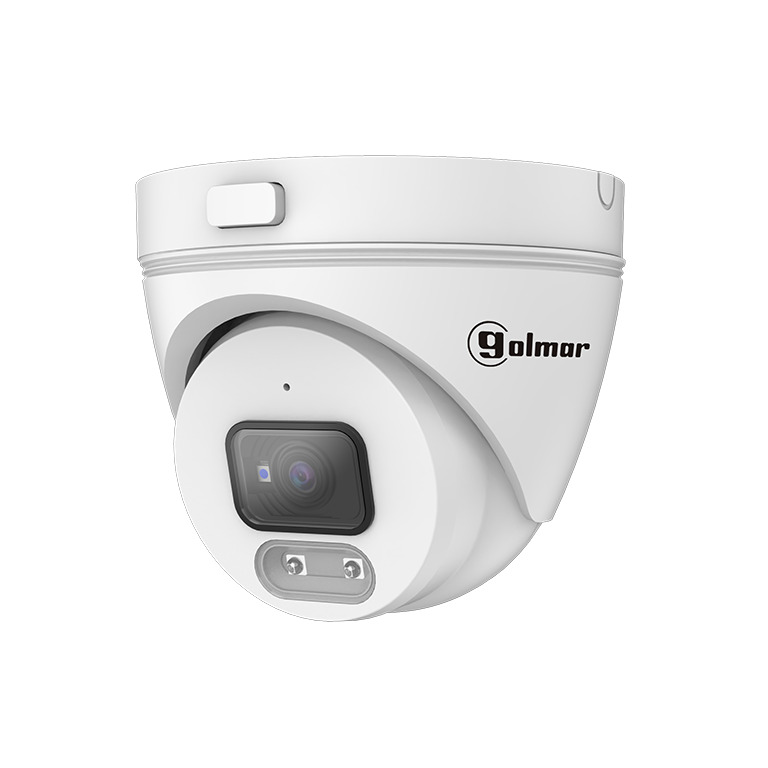

AHD4-21D5 5Mpx camera with 2.8mm lens
Reference : AHD4-21D5
Product code: 31600213
EAN code : 8429898033020
- SC5238 sensor with 5Mpx resolution
4 in 1 technology (AHD / CVI / TVI / CVBS)
Built-in microphone
With AOC technology (audio over coaxial)
2.8mm fixed optics
102° horizontal viewing angle
Infrared illumination with 20m range
IP66 protection rating
Compatible with connection sockets: C-BASE01 (31691010) and
C-BASE02 (31691011)
Dimensions: 100(Ø) x 90(H) mm
More information
| Specifications | |
|---|---|
| Type | Dome |
| Technology | Analogic |
| Video format | HDTVI,HDCVI,AHD,CVBS |
| Image sensor | SC5238 1/2.7" Progressive CMOS |
| Max. Resolution | 5Mpx |
| Images by sec. (FPS) | 20 |
| Colour | White |
| Mounting | Ceiling |
| Video output | BNC |
| Lense | Fixed |
| Focal length | 2,8 mm |
| Max. Aperture ratio | F2.0 |
| Horizontal field of view (º) | 102° |
| Vertical field of view (º) | 57,4° |
| Minimum illumination (lux) | Color 0.04lux @ F2.0(AGC ON) |
| IR distance max. (m) | 20 |
| WDR | No |
| AOC | No |
| Additional functions | AWB,BLC,AES,DNR |
| Built-in microphone | No |
| Built-in speaker | No |
| UTC | No |
| Compatibility | C-BASE01 and C-BASE02 |
| Degree of protection (IP) | 66 |
| Material | Plastic |
| Maximum working temperature (ºC) | 50 |
| Minimum working temperature (ºC) | -30 |
| Relative humidity work (max.) | 90% |
| Input voltage (V) | 12Vcc |
| Included power supply | No |
| Rest consumption (W) | 1 |
| Max. consumption (W) | 4 |
| Certifications | CE, RoHS |
