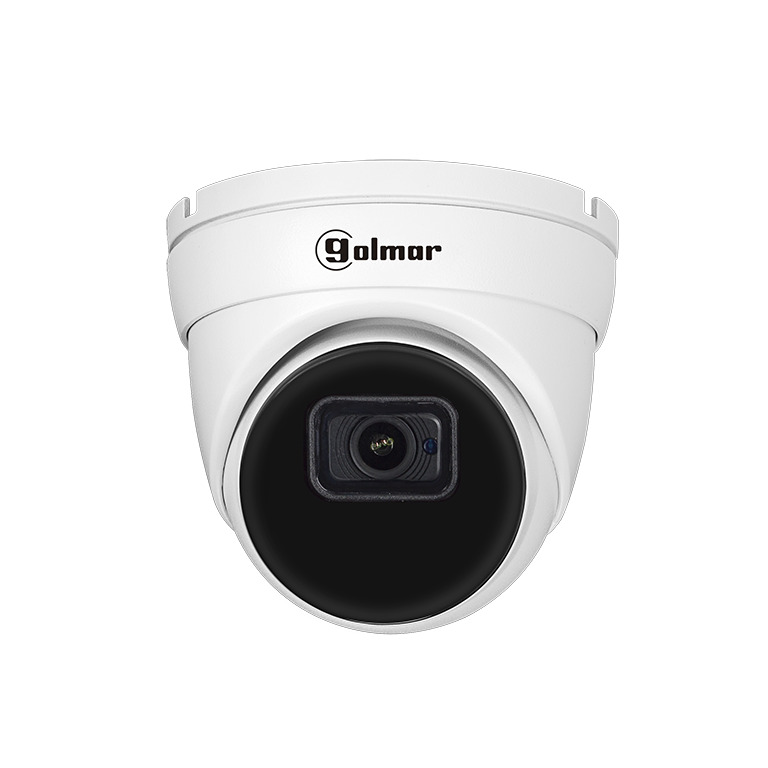

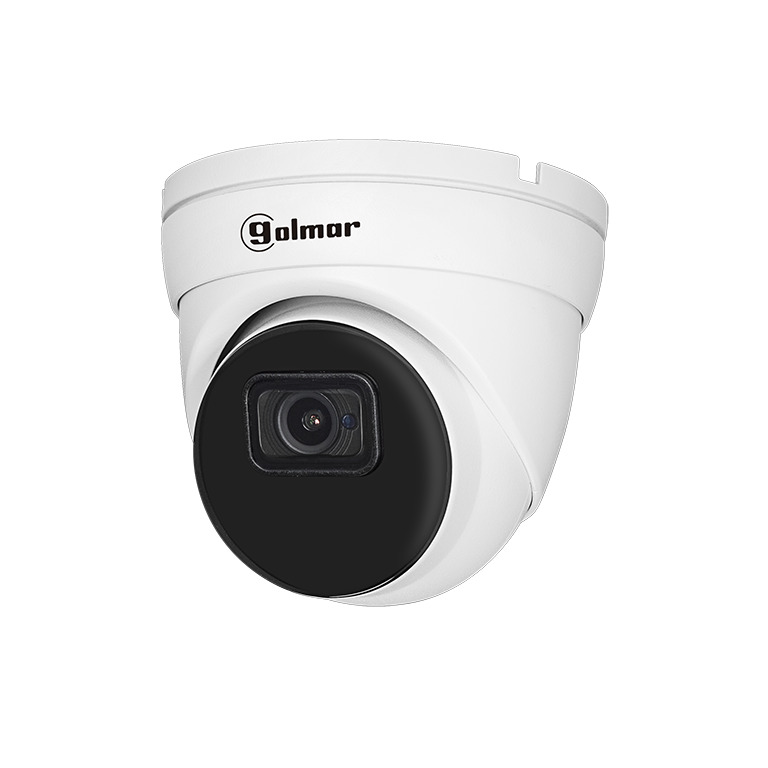

AHD4-21D5A 5Mpx camera with 2.8mm lens
Reference : AHD4-21D5A
Product code: 31600211
EAN code : 8429898033013
- IMX335 sensor with 5Mpx resolution
4 in 1 technology (AHD / CVI / TVI / CVBS)
2.8mm fixed optics
106° horizontal viewing angle
Infrared illumination with 30m range
IP66 protection rating
WDR 120dB
Compatible with docking stations: C-BASE01 (31691010) and
C-BASE02 (31691011)
Dimensions: 100 (Ø) x 90 (H) mm
More information
| Specifications | |
|---|---|
| Type | Dome |
| Technology | Analogic |
| Video format | HDTVI,HDCVI,AHD,CVBS |
| Image sensor | IMX335 1/2.8" Progressive CMOS |
| Max. Resolution | 5Mpx |
| Images by sec. (FPS) | 20 |
| Colour | White |
| Mounting | Ceiling |
| Video output | BNC |
| Lense | Fixed |
| Focal length | 2,8 mm |
| Max. Aperture ratio | F1.6 |
| Horizontal field of view (º) | 106,9 |
| Vertical field of view (º) | 56,9 |
| Minimum illumination (lux) | Color 0.02lux @ F1.6(AGC ON) |
| Night vision mode | Day/Night |
| IR distance max. (m) | 30 |
| Autotracking | No |
| WDR | Yes |
| AOC | No |
| Additional functions | AWB,BLC,AES,DNR,3D-DNR |
| Face recognition | No |
| Built-in microphone | No |
| Built-in speaker | No |
| UTC | No |
| Integrated WiFi | No |
| Degree of protection (IP) | 66 |
| Material | Aluminium |
| Maximum working temperature (ºC) | 55 |
| Minimum working temperature (ºC) | -30 |
| Relative humidity work (max.) | 90% |
| Input voltage (V) | 12Vcc |
| Included power supply | No |
| Rest consumption (W) | 1.5 |
| Max. consumption (W) | 4 |
| Dimensions - High (mm) | 90 |
| Dimensions - Diameter (mm) | 100 |
| Certifications | CE, RoHS |
