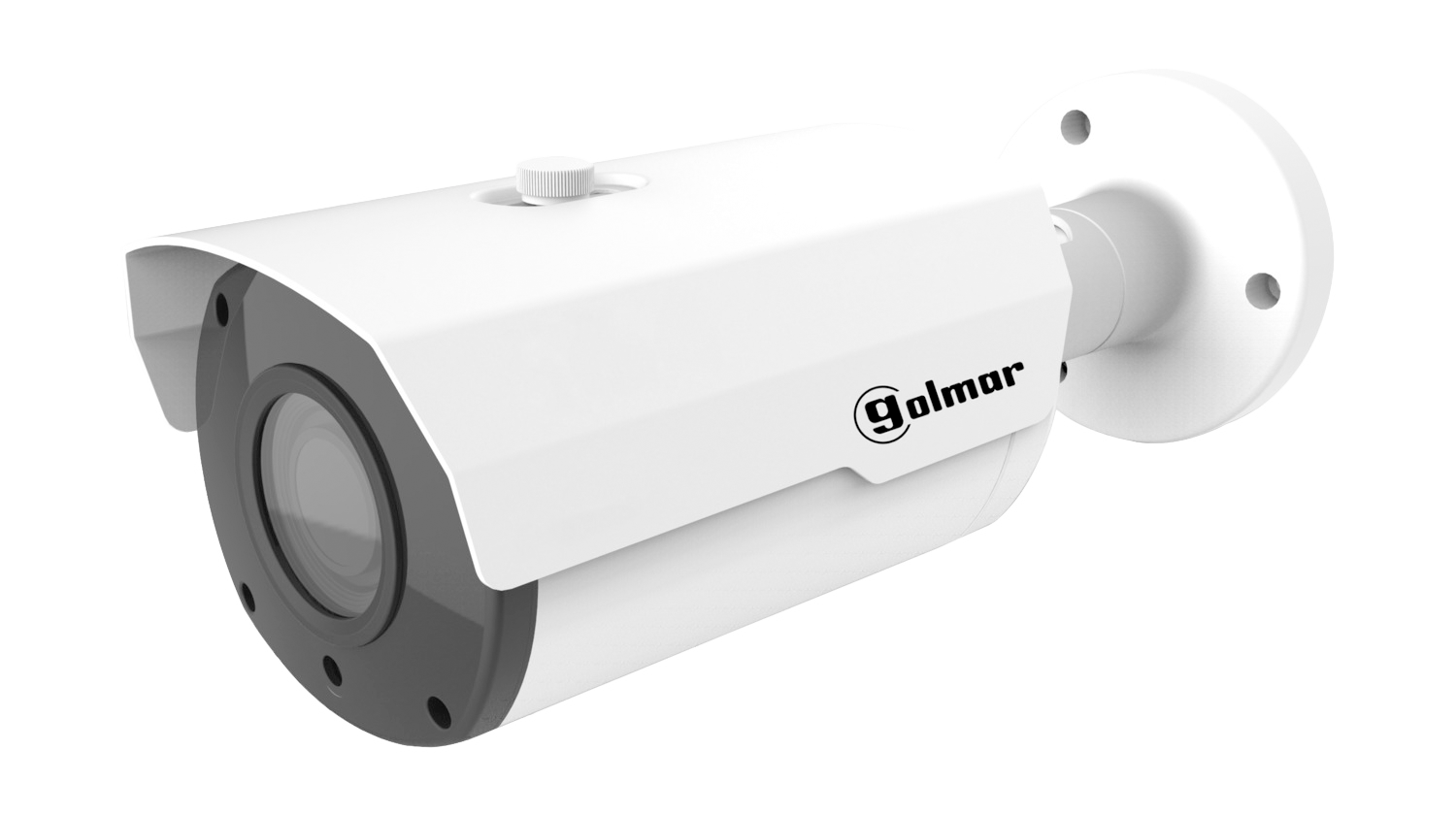

AHD4-24B5 motorised bullet camera 5MPx

Reference : AHD4-24B5

Product code: 31600253

EAN code : 8429898020570

  • 1/2.7" progressive CMOS sensor
    4-in-1 technology (AHD / CVI / TVI /CVBS)
    2.8 to 12mm autofocus motorised optics
    40m range infrared illumination
    IP66 protection rating
    Compatible with C-BASE01, C-BASE02 and C-BASE05
    Dimensions: 84(Ø) x 242(D) mm

More information
Camera
Image sensor SC5235 1/2.7" Progressive CMOS
System PAL/NTSC
Image Refreshment 5AHD/5TVI: 5MP@20fps
  4AHD/4CVI/4TVI: 4MP/P@25fps 4MP/N@30fps
  CVBS: 960H
Resolution 5MP 2592(H)×1944(V)
Minimum illumination 0.05lux @ F1.2 (AGC ON), 0Lux with IR ON
Shutter 1/15 s ~ 1/50,000 s
Optics 2.8-12 mm motorized
Horizontal field of view H.FOV:81.04°(W)—28.78°(T)
Day / Night Mechanical IR filter
IR cut filter 850nm
Synchronisation Internal Sync
DWDR Yes
Menu
AGC Yes
Day/Night mode EXT / Auto / Colour / BW
WB Auto / Manual
BLC Yes
S/N Ratio 35dB
OSD Yes
Interface
Video output 1 x BNC
Switch AHD / TVI / CVI / CVBS
General
IP rating IP66
Power supply 12V
Power consumption Max 4W
IR range up to 40m
Communication UTC (coaxial)
