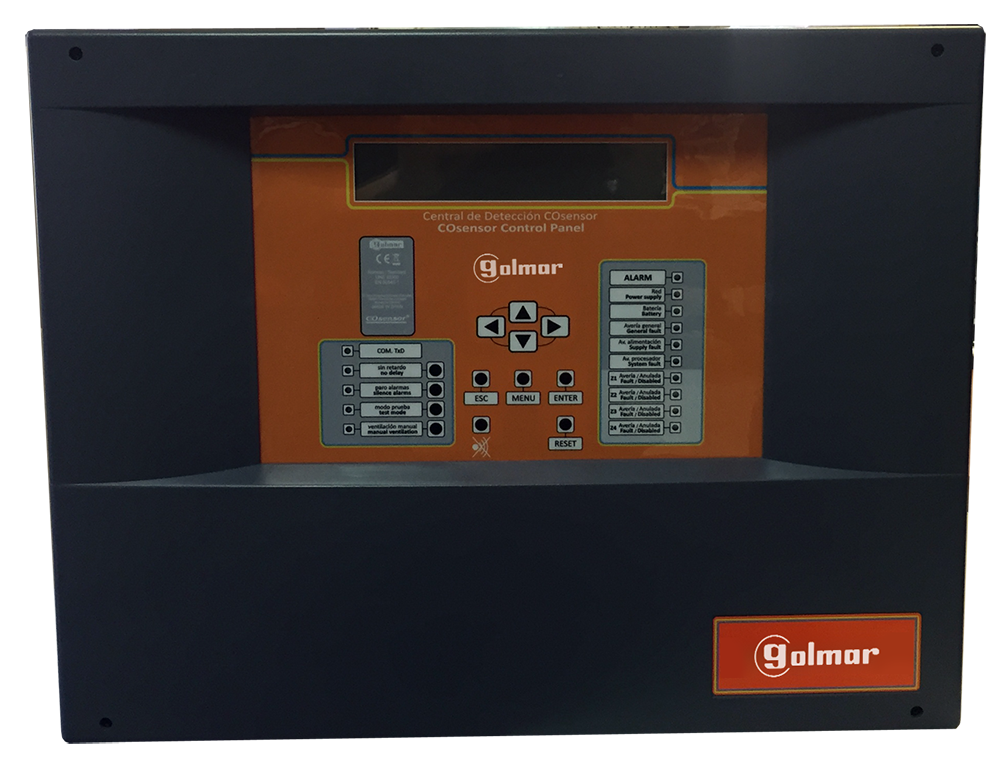

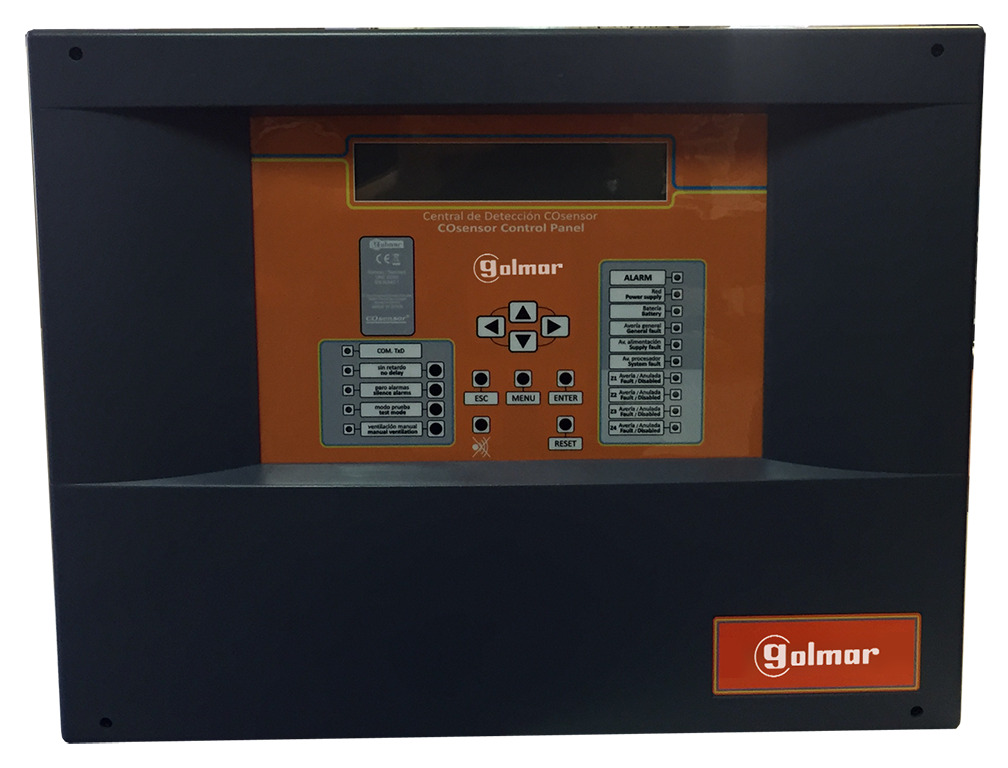

4-Zone Carbon Monoxide Control Panel
Reference : CCO4/25
Product code: 21113145
EAN code : 8429898026367
- Certified according to UNE 23300 and EN 50545-1 standards
- Equipped with a backlit 4 x 40 LCD display and membrane keypad
- Programmable ventilation level from 5 to 300 ppm for CO
- Programmable ventilation delay from 1 to 10 minutes
- Programmable post-ventilation delay from 1 to 10 minutes
- Ventilation output via volt-free relay
- Programmable alarm level from 200 to 300 ppm for CO
- Programmable alarm delay from 0 to 5 minutes
- Programmable post-alarm delay from 0 to 5 minutes
- Alarm output via volt-free relay
- Includes fault output via volt-free relay
- Maximum capacity of 25 detectors per zone
- Maximum line length: 1000 m (shielded cable 2 x 1.5 mm²)
- Operating temperature: -10ºC to 50ºC
- Dimensions: 418 (W) x 324 (H) x 150 (D) mm
More information
| Specifications | |
|---|---|
| Serie | CCO |
| Installation | 2-wire |
| Number of zones | 4 |
| Number of zones (max.) | 4 |
| Devices Line (max.) | 25 |
| Battery charger | Yes |
| Exit relay. | 0 |
| Mermaid output. | 0 |
| Ventilation output | 4 |
| Alarm output | 4 |
| Signaling | Led,Display,Acoustically |
| Input voltage (Vac) | 230 |
| Use | Indoor |
| Dimensions - High (mm) | 324 |
| Dimensions - Width (mm) | 418 |
| Dimensions - Deep (mm) | 150 |
