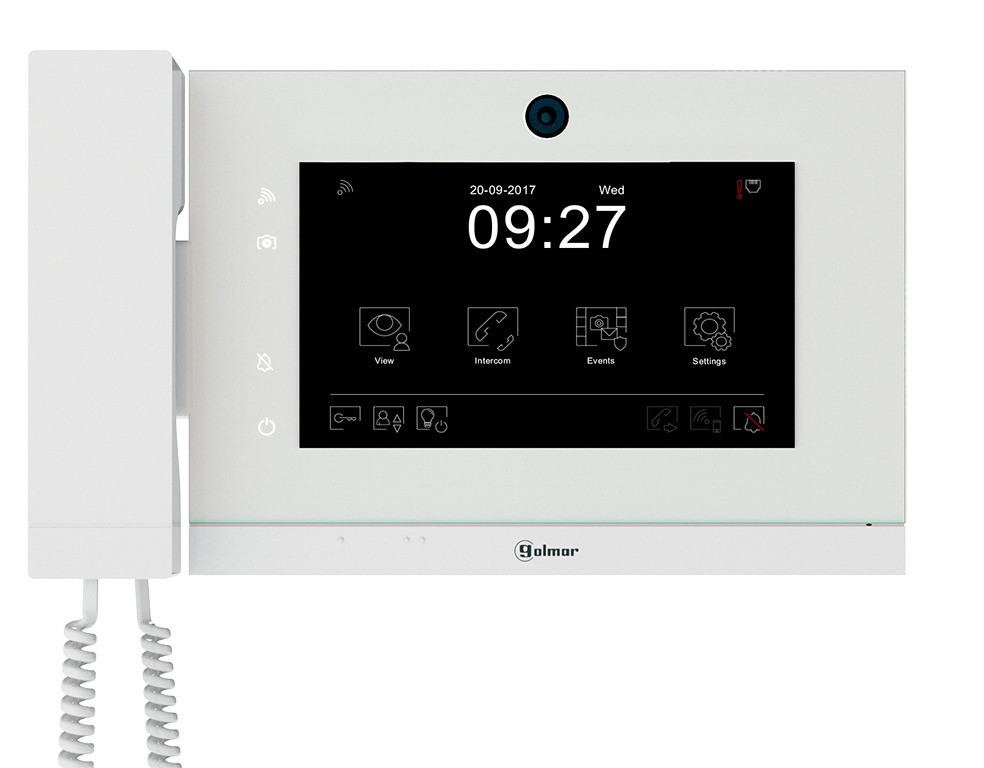

CE-ART 7/G+ guard unit

Reference : CE-ART 7/G+

Product code: 12379703

EAN code : 8429898024608

  • TCP/IP protocol "G+" digital installation.
  • Housing made of white ABS plastic.
  • 7" touch screen.
  • Surface or desktop installation with SOB-UNI support.
  • High efficiency speakers.

Dimensions: 262(W) x 154(H) x 31(D) mm.

More information
  • Virtual keyboard for call dialing.
  • Call to other monitors or concierge units.
  • Image memory and call list.
  • Outdoor panel tracking function and CCTV IP camera tracking.
  • Direct door opening button.
  • Messaging service for short text messages and emergency broadcast messages.
  • Monitoring of ONVIF protocol CCTV cameras (up to 32).
  • Camera for viewing from tenants to janitor during conversation.
  • Notification of alarms that have occurred in apartments.
  • Event registration.
  • Connection via RJ-45 connector.
Type of device Video
Serie ART
Mounting Surface
Audio of communication Dual handset hands-free
Call type Call forwarding,Individual call
Vocal messages Yes
Available languages English,Spanish,Portuguese
Ringtones 6
Speaker power (W) 1.5
Intercom All the installation
Integrated camera No
Integrated WiFi No
Remote Access / App Web
Operation Touch Screen
Inductive loop No
Guidance LEDs Yes
Size (inches) 7
Resolution 1024x600 px
Minimum illumination (lux) 420
Response time (ms.) 25
Number of colors (Mill.) 16.7
Video format HDTVI
Format / Video Compression H.264
Log of calls Yes
Management software Yes
Programming Computer,From the own device
HW platform Android
Protocols TCP / IP
Internal storage 100 images
Memory Image Yes
Volume settings. 1
Input voltage (V) 12Vcc,PoE,18Vcc
Requires additional feeder No
Rest consumption (W) 4.4
Max. consumption (W) 6.5
Installation UTP
Max. (M) 100
Compatibility ONVIF,Golmar,IP SIP,VoIP
Technology IP G +
Functions Do not disturb,Date - On-screen,Auto start,Lift control
Inputs HZ
Outputs Auxiliary ringer,12Vdc
Removable connectors Yes
Built-in microphone Yes
Microphone sensitivity (DB) 40
Certifications CE, ROHS
Degree of protection (IP) 30
Relative humidity work (max.) 90
Relative humidity Work (min.) 10
Maximum working temperature (ºC) 40
Minimum working temperature (ºC) -10
Mounting frame included Yes
Material ABS plastic
Dimensions - Width (mm) 262
Dimensions - High (mm) 154
Dimensions - Deep (mm) 31
Colour White
Weight (gr.) 500
