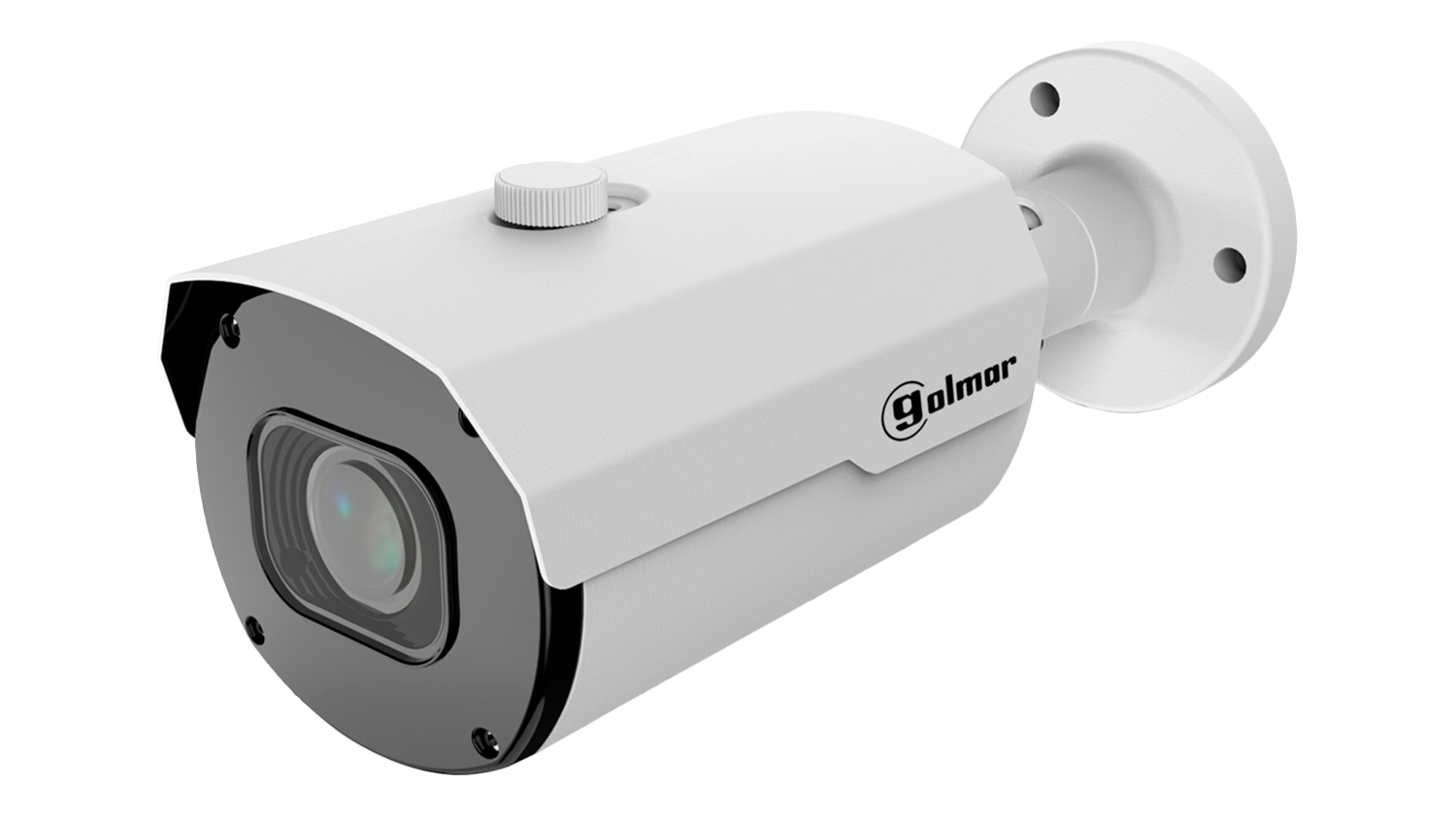

CIP-124B2E 2Mpx camera with 2.8-12mm lens
Reference : CIP-124B2E
Product code: 31692075
EAN code : 8429898024080
- 1/2.7" Progressive CMOS sensor
H.264 / H.265 compression
Proprietary protocol / Onvif 2.6
2.8 to 12mm motorised optics
106° to 35° horizontal angle of view
Infrared illumination with 40m range (4 leds)
IP66 protection rating
Micro SD card slot
Audio terminals
Compatible with C-BASE01, C-BASE02 and C-BASE05
Dimensions: 84(Ø) x 242(D) mm
More information
| Specifications | |
|---|---|
| Type | Bullet |
| Technology | IP |
| Image sensor | 1/2,7" progressive CMOS |
| Max. Resolution | 2Mpx |
| Images by sec. (FPS) | 25 |
| Colour | White |
| Mounting | Wall |
| Lense | Motorized |
| Focal length | 2.8-12mm |
| Zoom (x) | 4 |
| Horizontal field of view (º) | 106 |
| Night vision mode | Day/Night |
| IR distance max. (m) | 40 |
| Additional functions | AWB,BLC,AES,3D-DNR,D-WDR |
| Bitrate | 128Kbps ~ 4Mbps |
| Main Stream (FPS) | 25 fps @ 1080P (1920x1080) |
| Sub Stream (FPS) | 25 fps @ VGA (640x480) |
| Video compression | H.264,H.265 |
| Internal storage | Yes (max 256Gb) |
| Network interface | RJ45 |
| I / O alarms | No |
| I / O audio | 1/1 |
| Built-in microphone | No |
| Built-in speaker | No |
| Integrated WiFi | No |
| Remote Access / App | Web,App GolmarView,VMS Pro |
| Compatibility | C-BASE01, C-BASE-02 and C-BASE05 |
| Degree of protection (IP) | IP66 |
| Material | Aluminium |
| Input voltage (V) | 12Vcc,PoE |
| Included power supply | No |
| Max. consumption (W) | 7 |
| Dimensions - Diameter (mm) | 84 |
| Dimensions - Deep (mm) | 242 |
| Certifications | CE,RoHS |
