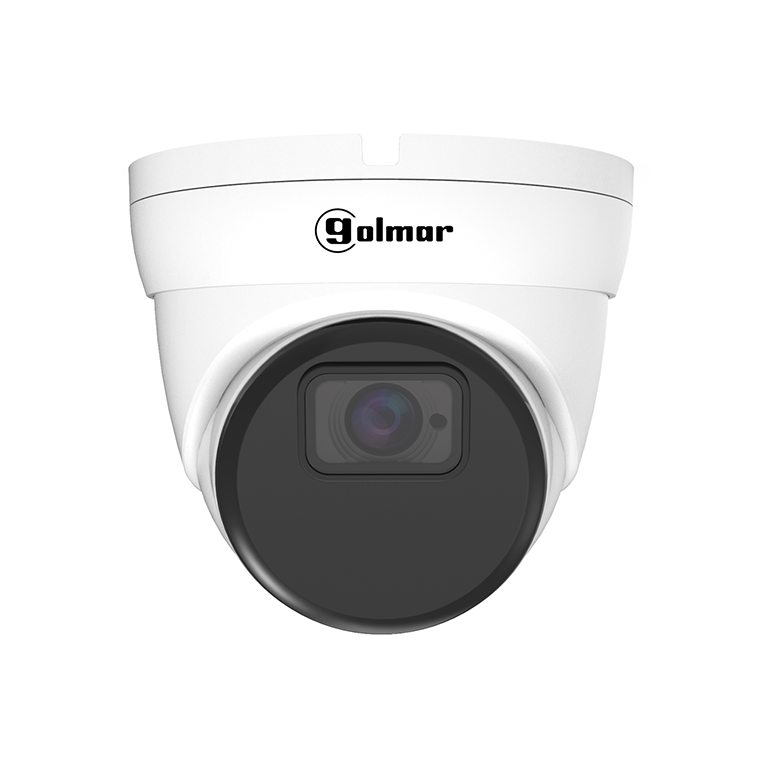

CIP-124D2E 2Mpx camera with 2.8-12mm lens
Reference : CIP-124D2E
Product code: 31692070
EAN code : 8429898024073
- 2Mpx PoE dome with 2.8 to 12mm lense
1/2.7" progressive CMOS sensor
H.264 / H.265 compression
Proprietary protocol / Onvif
2.8 to 12mm autofocus motorized lense
106° to 35° horizontal angle of view
Infrared illumination with 40m range
IP66 protection rating
Micro SD card slot
Audio terminals
Power-Out function
Compatible with docking station C-BASE02 and C-BASE04
Dimensions: 135(Ø) x 127(H) mm
More information
| Specifications | |
|---|---|
| Type | Dome |
| Technology | IP |
| Max. Resolution | 2Mpx |
| Colour | White |
| Mounting | Ceiling |
| Lense | Motorized |
| Focal length | 2.8-12mm |
| Zoom (x) | 4 |
| Night vision mode | Day/Night |
| IR distance max. (m) | 40 |
| WDR | No |
| Additional functions | AWB,BLC,AES,3D-DNR,D-WDR |
| Bitrate | 128Kbps ~ 4Mbps |
| Main Stream (FPS) | 1080P (1920x1080) |
| Sub Stream (FPS) | VGA (640x480) |
| Video compression | H.264,H.265 |
| Internal storage | Yes (max 256Gb) |
| Network interface | RJ45 |
| I / O alarms | No |
| I / O audio | 1/1 |
| Built-in microphone | No |
| Built-in speaker | No |
| Integrated WiFi | No |
| Remote Access / App | Web,App GolmarView,VMS Pro |
| Degree of protection (IP) | 66 |
| Input voltage (V) | 12Vcc,PoE |
| Included power supply | No |
| Max. consumption (W) | 7 |
| Dimensions - High (mm) | 127 |
| Dimensions - Diameter (mm) | 135 |
| Certifications | CE,RoHS |
