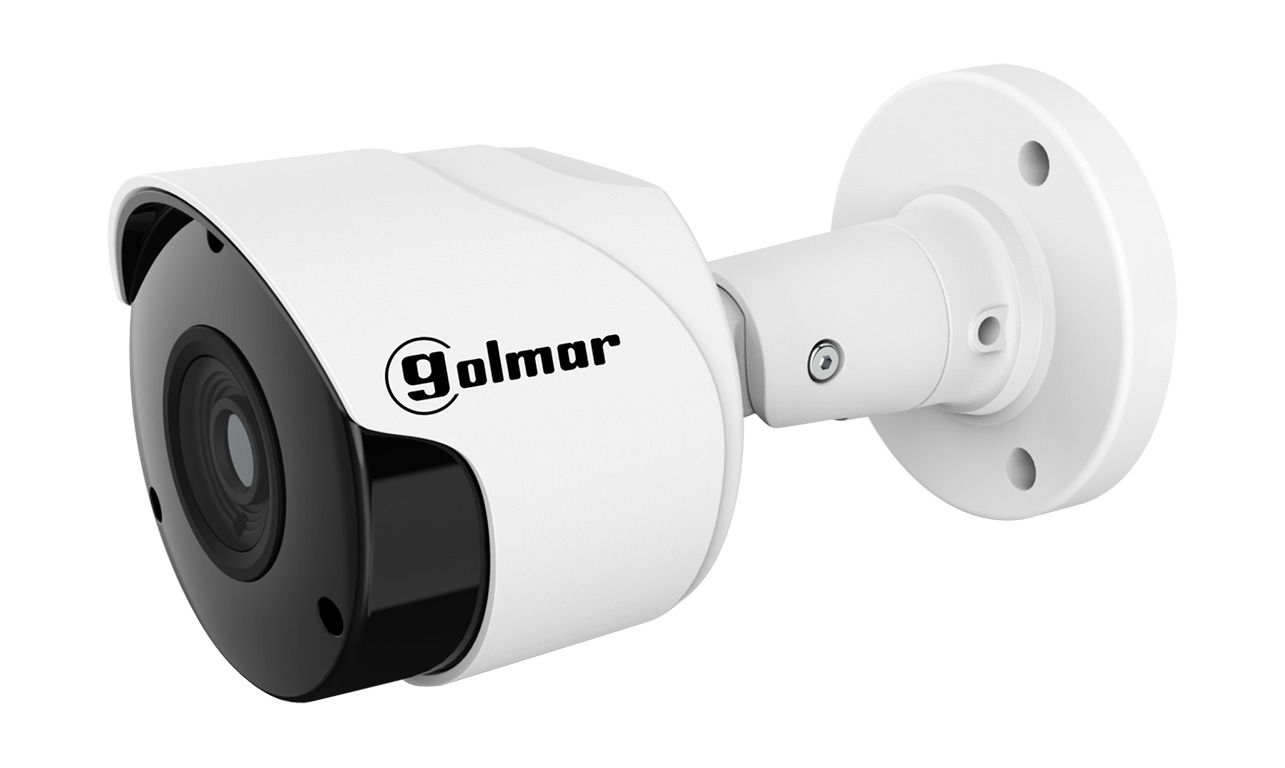

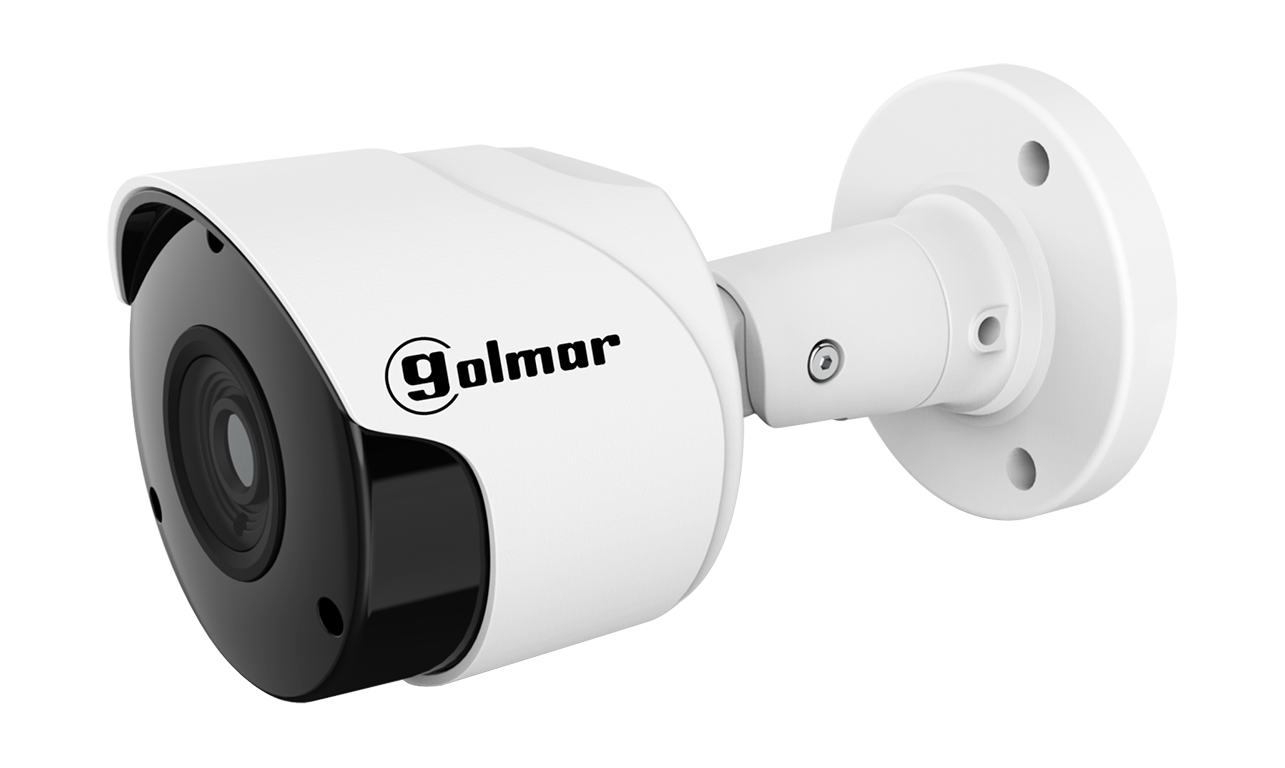

CIP-21B2E IP camera bullet PoE type, 2Mpx
Reference : CIP-21B2E
Product code: 31691050
EAN code : 8429898018553
- 1/2.7" Progressive CMOS sensor
H.264 / H.265 compression
Proprietary protocol / Onvif 2.6
2.8mm fixed lense
103° horizontal angle of view
Infrared illumination with 30m range (18 SMD LEDs)
IP66 degree of protection
Compatible with sockets C-BASE01, C-BASE02 and
C-BASE05
Dimensions: 70(Ø) x 138(D) mm
More information
| Resolution | 2MP 1920(H)×1080(V) | |
| Image Sensor | 1/2.7" Progressive CMOS | |
| Min. Illumination | Color 0.1lux @ F1.2(AGC ON) ; B/W 0 lux @ IR ON | |
| Shutter | 1/5 ~ 1/20000s | |
| Slow shutter | Support | |
| Lens | 2.8 mm H.FOV: 103° | |
| Day & Night | IR cut filter with auto switch | |
| WDR | Digital WDR | |
| Video Compression | H.265/H.264 | |
| Video bit rate | 256Kbps ~ 8Mbps | |
| Stream | Dual | |
| Frame Rate | Mainstream (1~25fps) 1080P(1920x1080), 960P(1280x960), 720P(1280x720) Substeam (1~20fps) VGA(640x480),QVGA(320x240) |
|
| Image Settings: | Flip mode, Saturation, Brightness, Contrast, Hue, Sharpness adjustable | |
| BLC | Support | |
| Privacy Mask | Support | |
| Video Analytics | N/A | |
| Protocols | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,PPPoE, SMTP,NTP,UPnP,SNMP,HTTPS,FTP, |
|
| System Compatibility | ONVIF( Ver 2.6) | |
| Interface | RJ45 10M / 100M Ethernet interface x1 | |
| Led | 18pcs(SMD) | |
| IR Range | Up to 30m | |
| SD storage | no | |
| Alarm Trigger | no | |
| Audio | no | |
| Video Output: | no | |
| Reset Button | no | |
| PoE | yes | |
| Water Proof | IP 66 | |
| Power Supply | DC 12V/POE | |
| Consumption | ≤ 7W | |
| Dimension | Ø70 X138mm | |
| Weight | appr. 225g | |
| Storage Temperature | -30～+60°C | |
| Operating Temperature | -30～+55°C | |
