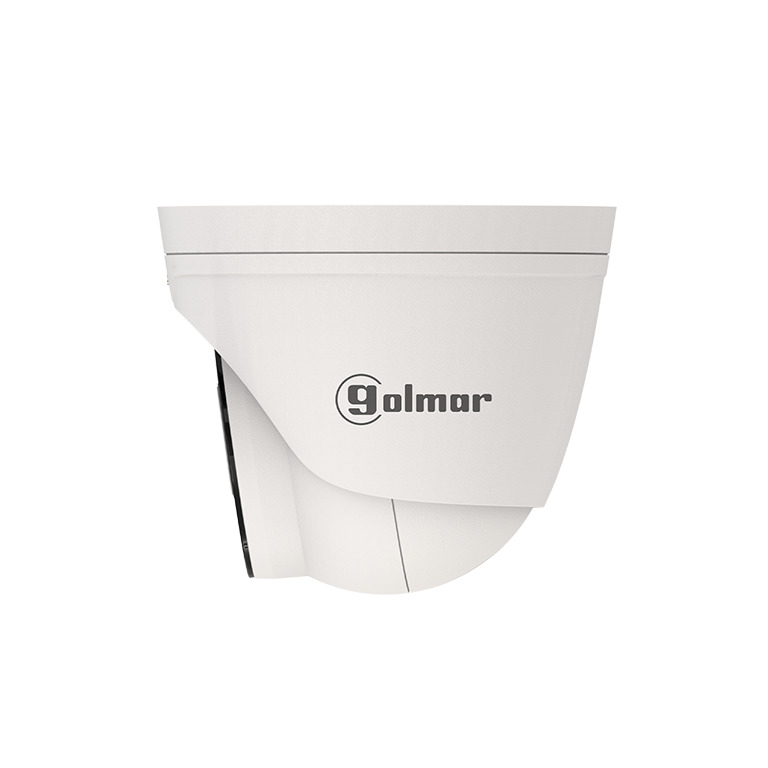

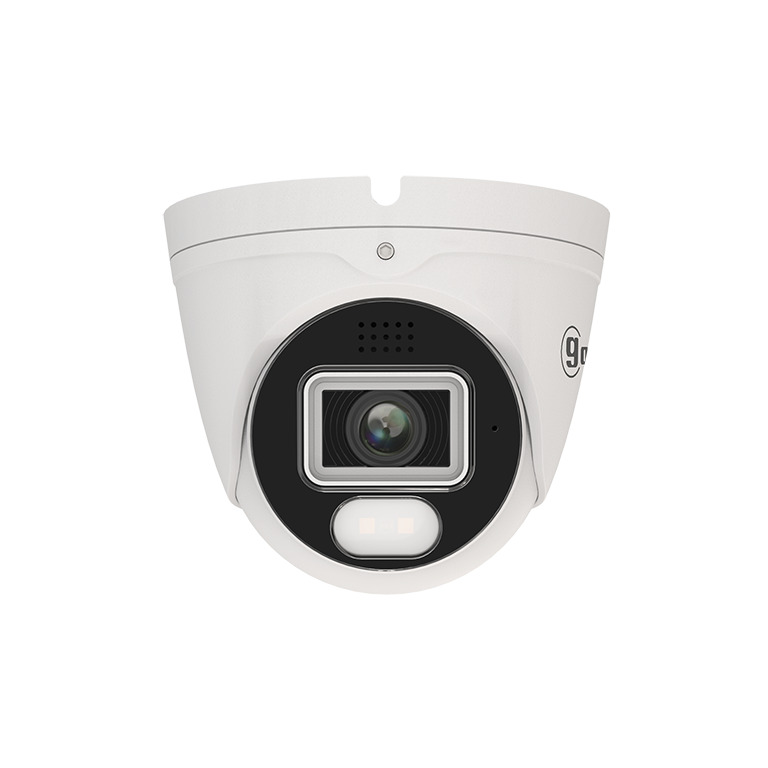

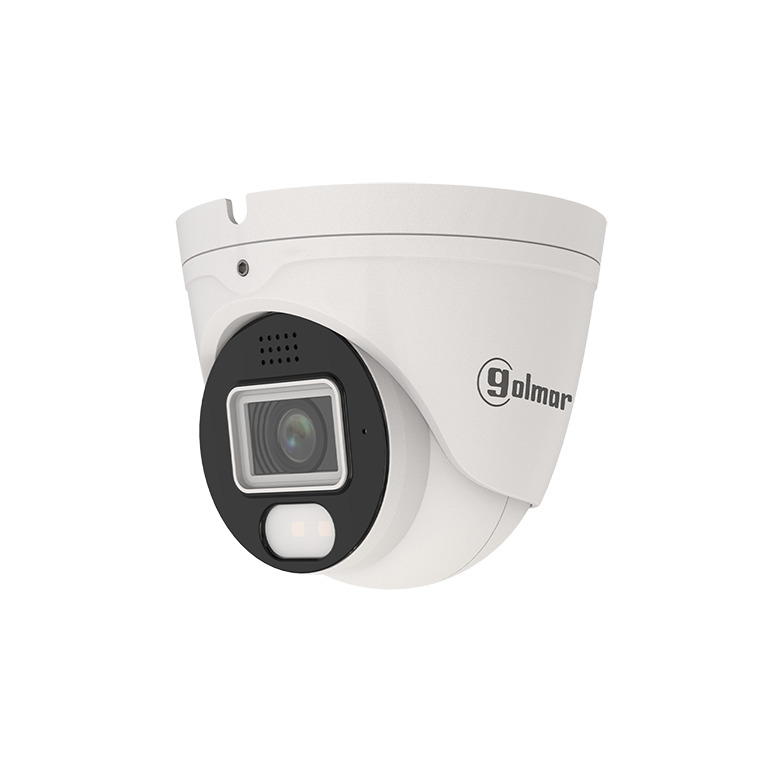

CIP-21D4DU 4Mpx ultra low light camera with 2.8mm lens
Reference : CIP-21D4DU
Product code: 31692054
EAN code : 8429898028149
- 4Mpx Utra Low Light Dome
2.8mm F1.0 lense
Minimum illumination 0.0005 lux (F1.0, AGC ON)
1/1.8" Progressive CMOS Sensor
H.265 / H.264 Compression
Proprietary protocol / Onvif
Fixed 2.8mm lense with 112° horizontal angle of view
25m visible white light illumination
IP67 protection rating
Micro SD card slot
Built-in microphone and speaker
120dB WDR function
Red and blue deterrent light
Compatible with deep bases C-BASE01 and C-BASE02
Dimensions: 100(Ø) x 90(H) mm
More information
| Specifications | |
|---|---|
| Type | Dome |
| Technology | IP |
| Max. Resolution | 4Mpx |
| Images by sec. (FPS) | 25 |
| Colour | White |
| Mounting | Ceiling |
| Lense | Fixed |
| Focal length | 2,8 mm |
| Max. Aperture ratio | F 1,0 |
| Horizontal field of view (º) | 112 |
| Vertical field of view (º) | 61 |
| Minimum illumination (lux) | Color 0.0005 Lux (F1.0,AGC ON) B/W 0 lux @ IR ON |
| Night vision mode | Full Color |
| White light distance (m) | 25 |
| WDR | Yes |
| Additional functions | AWB,BLC,AES,3D-DNR |
| Bitrate | 256Kbps ~ 8Mbps |
| Video compression | H.264,H.265 |
| Video Analysis | LCD,PID,PD,VD,FD,SOD,CC,CD,QD,HM |
| Internal storage | Yes (max 256Gb) |
| Network interface | RJ45 |
| I / O alarms | No |
| Built-in microphone | Yes |
| Built-in speaker | Yes |
| Integrated WiFi | No |
| Remote Access / App | Web,App GolmarView,VMS Pro |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| Compatibility | C-BASE01 and C-BASE02 |
| Degree of protection (IP) | IP67 |
| Material | Aluminium |
| Maximum working temperature (ºC) | 55 |
| Minimum working temperature (ºC) | -30 |
| Relative humidity work (max.) | 95% |
| Input voltage (V) | 12Vcc,PoE |
| Included power supply | No |
| Dimensions - High (mm) | 98 |
| Dimensions - Diameter (mm) | 115 |
| Certifications | CE, RoHS |
