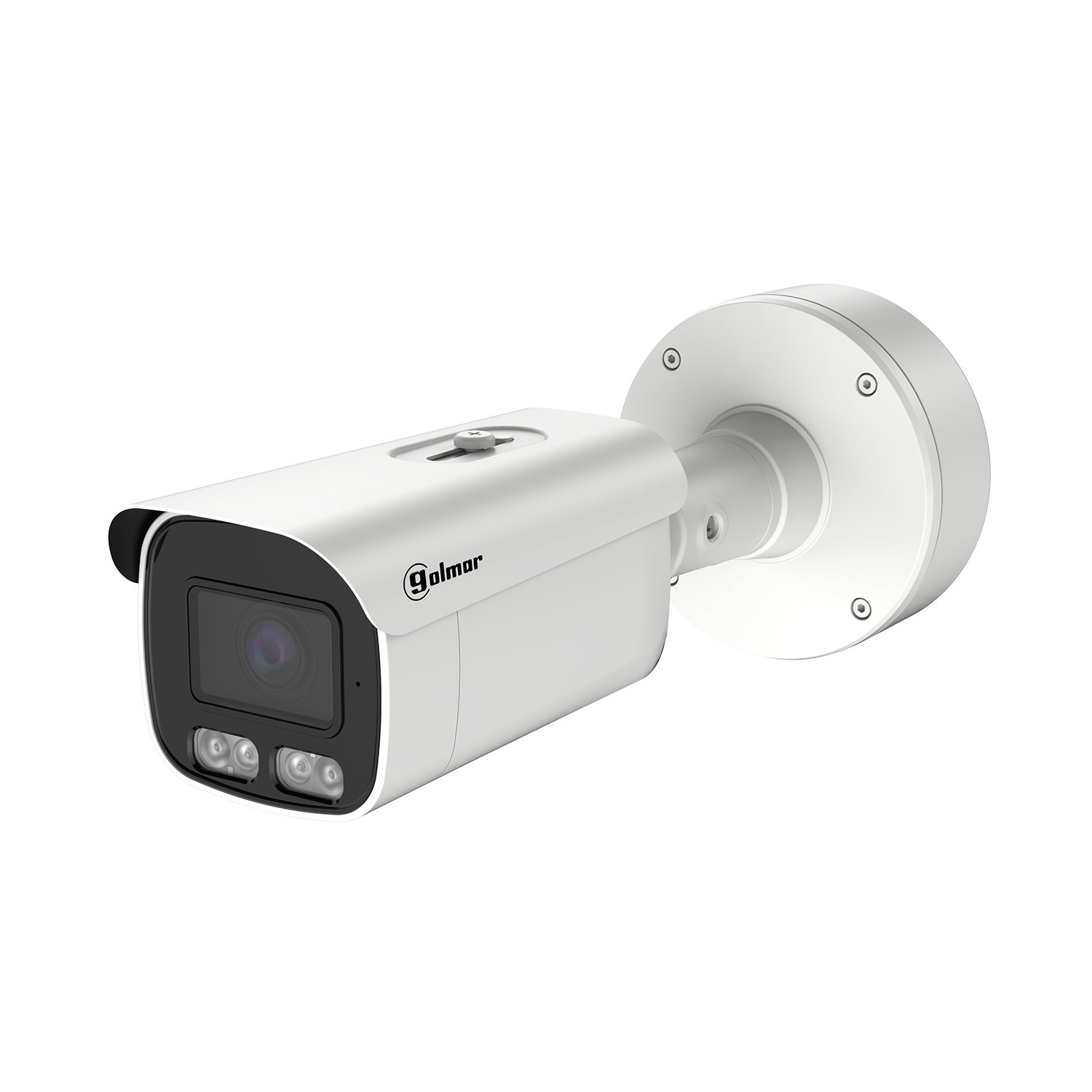

CIP-24B5VDA 5Mpx vandal-proof camera with motorized lens
Reference : CIP-24B5VDA
Product code: 31691075
EAN code : 8429898020822
- 1/2.7" progressive CMOS sensor
- H.265 / H.264 compression
- Proprietary protocol / Onvif (S/G/T profile)
- 2.8 to 12mm autofocus motorised optics
- 113° to 35° horizontal angle of view
- Advanced video analytics (perimeter, crossing line, pedestrian and face detection, crowd and queue detection...)
- Infrared illumination with 35m range
- Visible light illumination up to 30m
- IP67 degree of protection
- Vandal protection IK10
- Micro SD card slot
- Built-in microphone and speaker
- Connection base included
- Dimensions: 84(Ø) x 242(D) mm
More information
| Specifications | |
|---|---|
| Type | Bullet |
| Technology | IP |
| Max. Resolution | 5Mpx |
| Images by sec. (FPS) | 30 |
| Colour | Blanco |
| Mounting | Pared,Techo |
| Lense | Motorizada |
| Focal length | 2,8 - 12 mm |
| Zoom (x) | 4 |
| Max. Aperture ratio | F1.2 |
| Horizontal field of view (º) | 113(W) - 35(T)° |
| Vertical field of view (º) | 59(W) - 20(T)° |
| Night vision mode | Full Color |
| White light distance (m) | 30 |
| IR distance max. (m) | 35 |
| WDR | Yes |
| Additional functions | AWB,BLC,AES,DNR,3D-DNR |
| Bitrate | 256Kbps ~ 8Mbps |
| Main Stream (FPS) | 5MP(2880x1620), 4MP(2592x1520), 3MP(2304x1296), 1080P(1920x1080), 960P(1280x960), 720P(1280x720) |
| Sub Stream (FPS) | 720P(1280x720), VGA(640x480), QVGA(320x240) |
| Video compression | H.264,H.265 |
| Audio compression | Blanco |
| Video Analysis | LCD,PID,PD,VD,FD,SOD,CC,CD,QD,HM |
| Internal storage | Sí (máx 256Gb) |
| Network interface | RJ45 |
| I / O alarms | 30 |
| I / O audio | 30 |
| Built-in microphone | Yes |
| Built-in speaker | Yes |
| Remote Access / App | Web,App GolmarView,VMS Pro |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| Compatibility | Blanco |
| Degree of protection (IK) | 10 |
| Degree of protection (IP) | 67 |
| Material | 5MP(2880x1620), 4MP(2592x1520), 3MP(2304x1296), 1080P(1920x1080), 960P(1280x960), 720P(1280x720) |
| Maximum working temperature (ºC) | 60 |
| Minimum working temperature (ºC) | -35 |
| Relative humidity work (max.) | 95% |
| Input voltage (V) | 12Vcc,PoE |
| Certifications | CE, RoHS |
