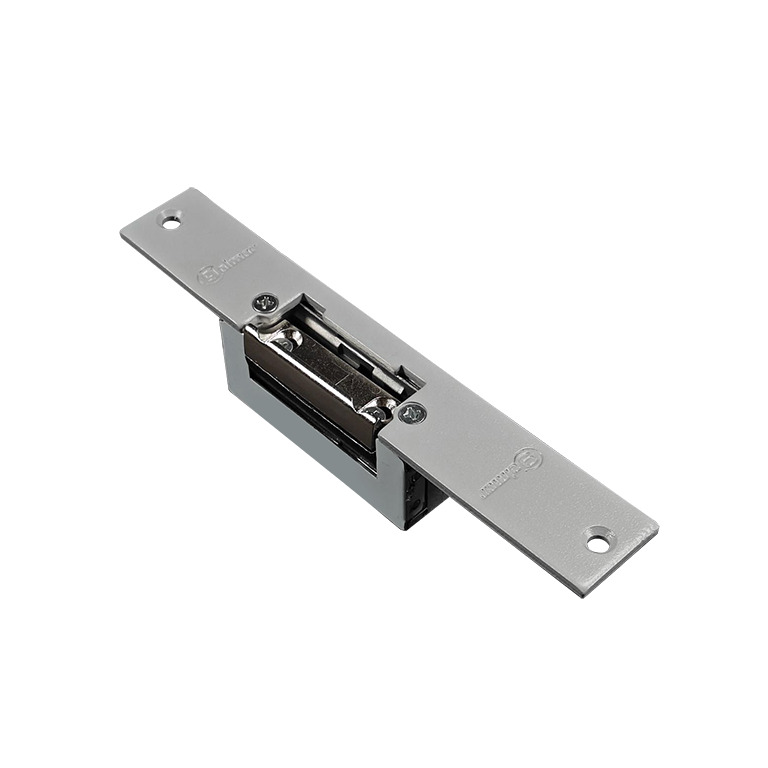

CV-14P/UNI lock release

Reference : CV-14P/UNI

Product code: 20600154

EAN code : 8429898015323

  • Standard operation, which only enables the door to be opened while the lock release push button of the apartment unit is pressed.
  • Stainless steel medium size shield.
  • Casing manufactured in 2mm. thick pressure injected light alloy, with a height of 67mm. only.
  • Adjustable bolt on all models, allowing 3 mm. precision.
  • Dual operation voltage from 8 to 12V a.c. (750mA consumption) or d.c. (300mA consumption).

More information
  • Dimensions:
Shield Mechanism
