• Access control and door locks

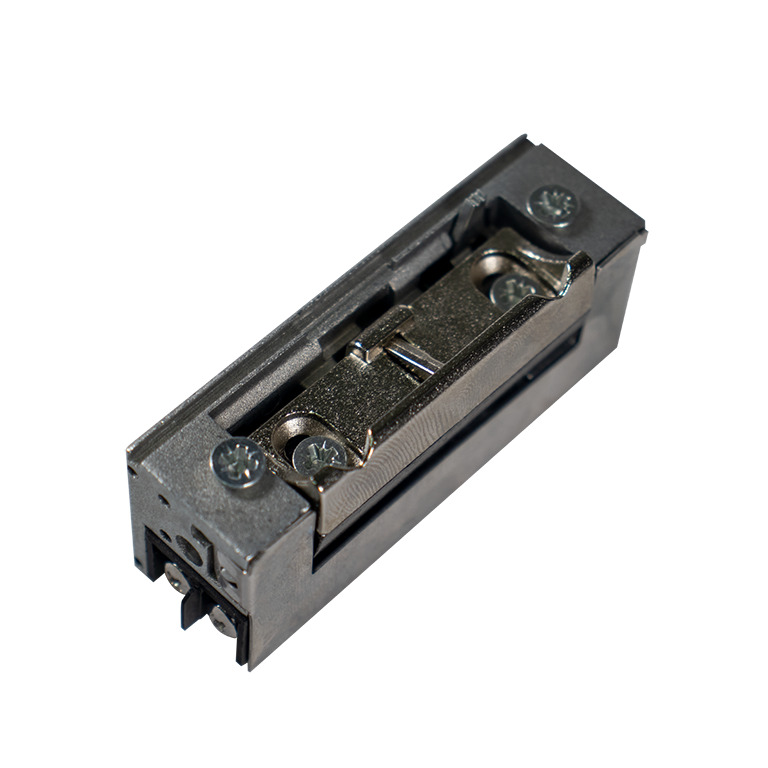

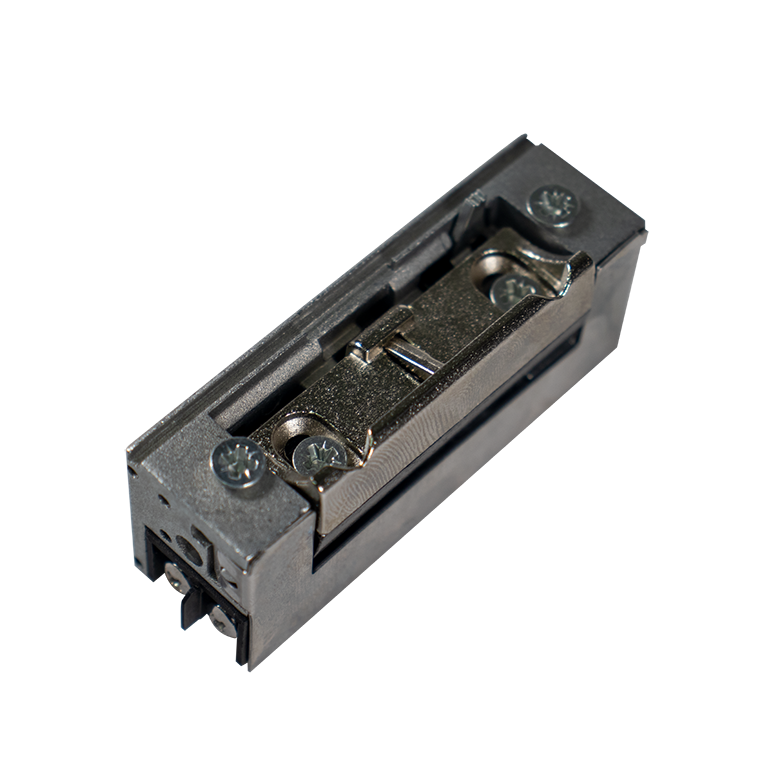

CV-24P/UNI/SF lock release

Reference : CV-24EP/UNI/SF

Product code: 20600255

EAN code : 8429898025049

  • Automatic operation, which enables the door to be opened with one press of the lock release push button of the apartment unit, and becomes locked again once the door is closed.
  • Shield not included.
  • Casing manufactured in 2mm. thick pressure injected light alloy, with a height of 67mm. only.
  • Adjustable bolt, allowing 3 mm. precision.
  • Dual operation voltage from 8 to 12V a.c. (750mA consumption) or d.c. (300mA consumption).

More information
  • Dimensions:
