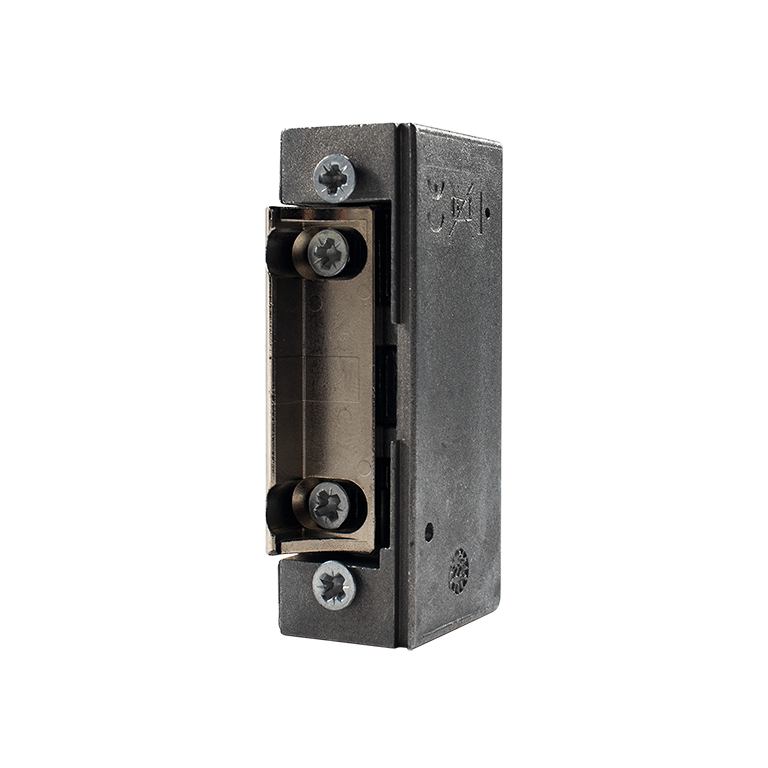

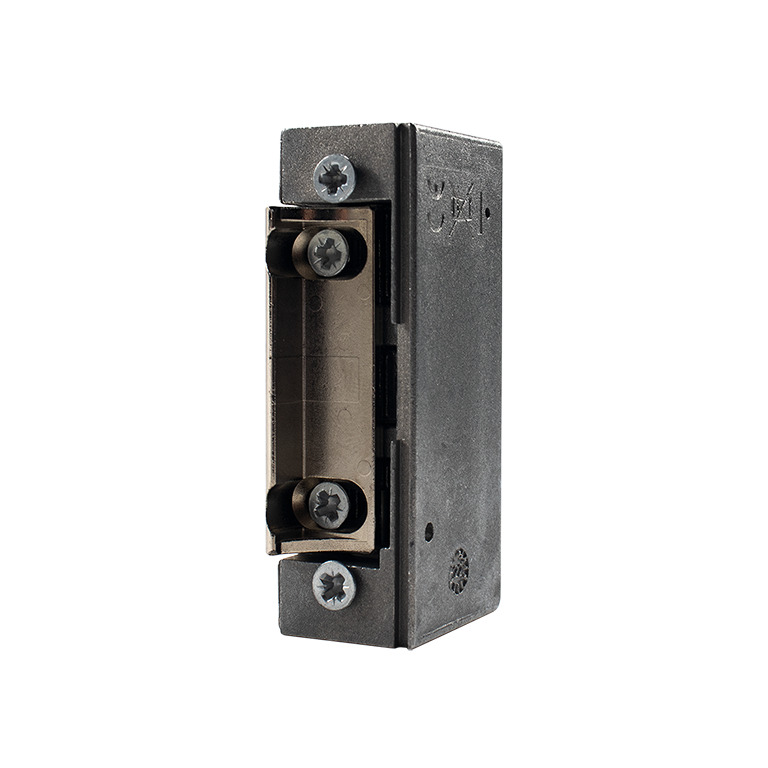

CV-34/DC/SF lock release
Reference : CV-34P/DC/SF
Product code: 20600353
EAN code : 8422463171103
- Standard reversed operation, the door lock release is locked while the power is on. When the power is off, the latch is unlocked automatically, allowing the door to open.
- Without shield.
- Casing manufactured in 2mm. thick pressure injected light alloy, with a height of 90mm.
- Adjustable bolt on all models, allowing 3 mm. precision.
- Operation voltage from 8 to 12V d.c. (300mA consumption).
Mechanical operating mode:
The lock release is closed while the coil is active (powered).
As soon as the electric lock is not supplied with tension, the latch is unlocked automatically, allowing the door to open.
- Dimensions:
