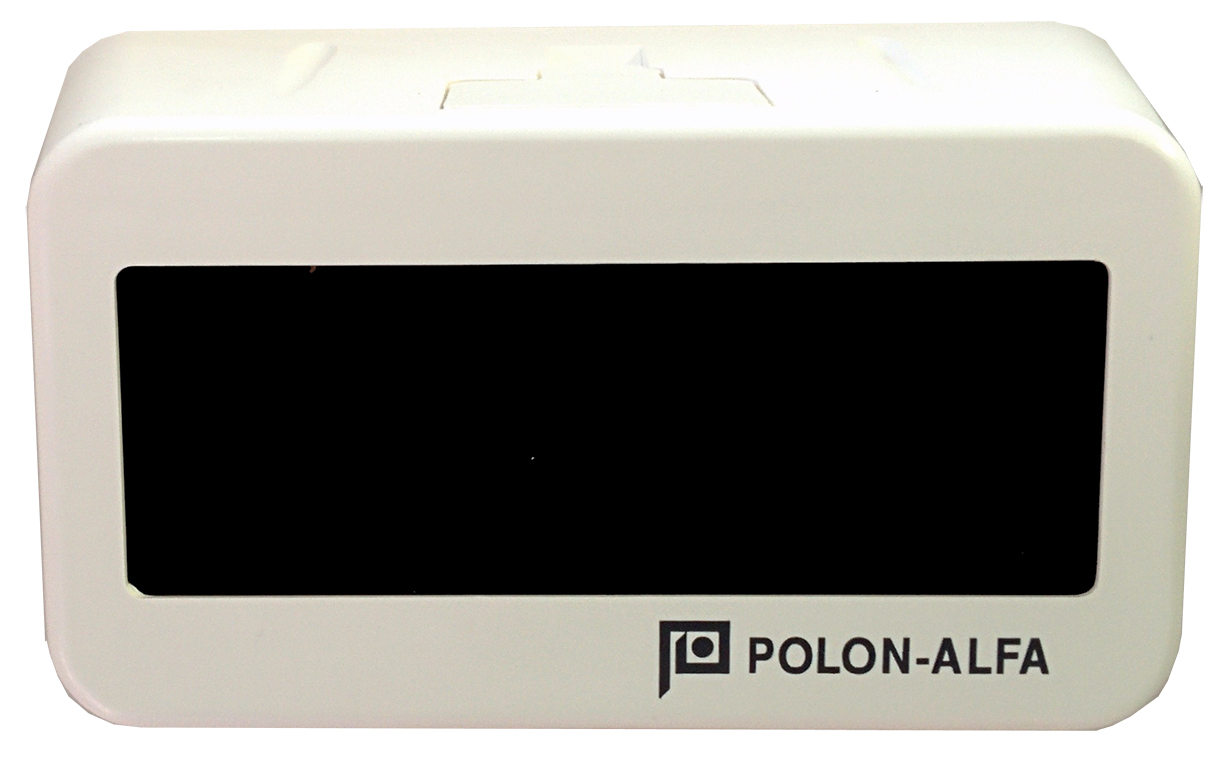

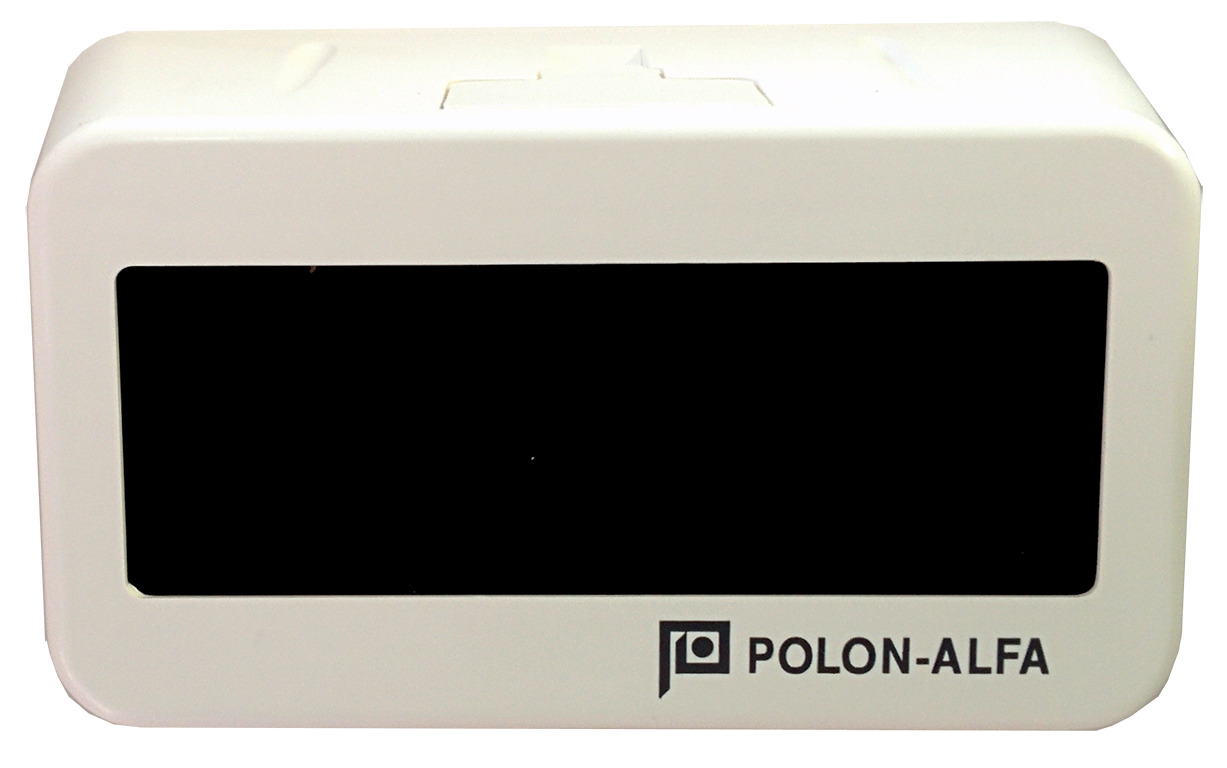

50 m linear smoke detector
Reference : DETLIN50M
Product code: 21151051
EAN code : 8429898026930
- Linear smoke detector with infrared beam and 50 m range
- Certified according to EN 54-12: CPD 1438/CPD/0219
- Integrated transmitter and receiver, operating with a prismatic reflector on the opposite side (includes 1 or 4 units depending on version)
- Incorporates a laser pointer that allows the beam to be visualized and adjusted with total precision in a simple and efficient way, even across very narrow spaces
- Up to 50 or 100 m range (depending on version) and 7.5 m lateral protection (according to EN 54-14)
- Supply voltage: 9.5 to 28 VDC
- Requires alarm resistor
- Weight: 350 g
- Dimensions: 150 (W) x 80 (H) x 80 (D) mm
More information
| Specifications | |
|---|---|
| Installation | 4 hilos |
| Technology | Convencional |
| Serie | CCG,FAP500 |
| Type | Barrera Líneal |
| Reading / coverage distance (m) | 80 |
| 80 | |
| Signaling | 1 |
| Action indicator output | Yes |
| Relay contacts | Yes |
| Type Function | Con central |
| Use | Interior |
| Manufactured according to Norma. | 80 |
| Dimensions - High (mm) | 80 |
| Dimensions - Width (mm) | 150 |
| Dimensions - Deep (mm) | 80 |
| Weight (kg.) | 0.35 |
