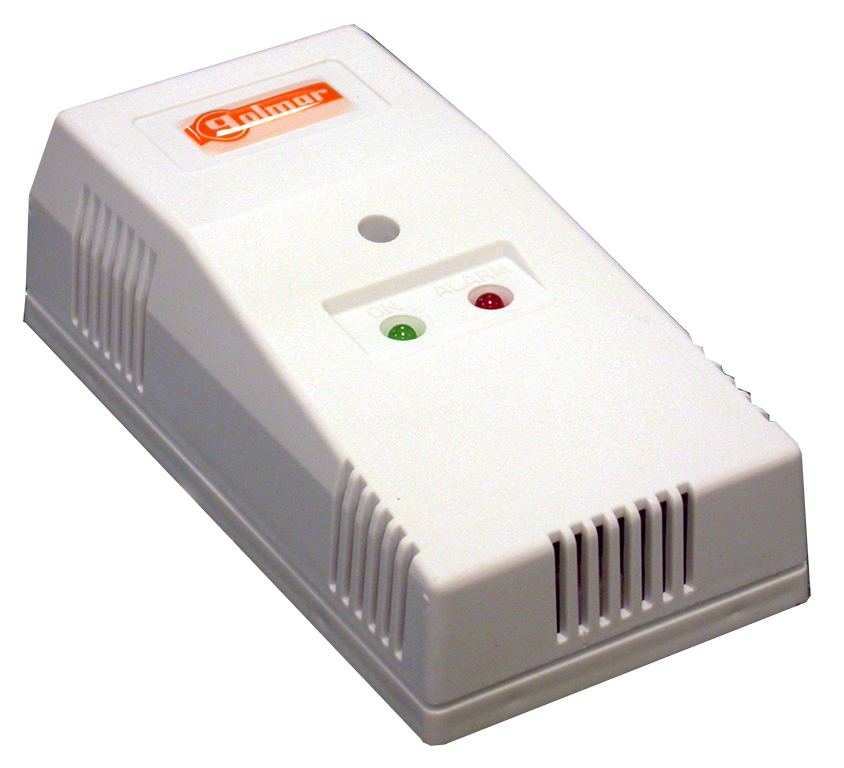

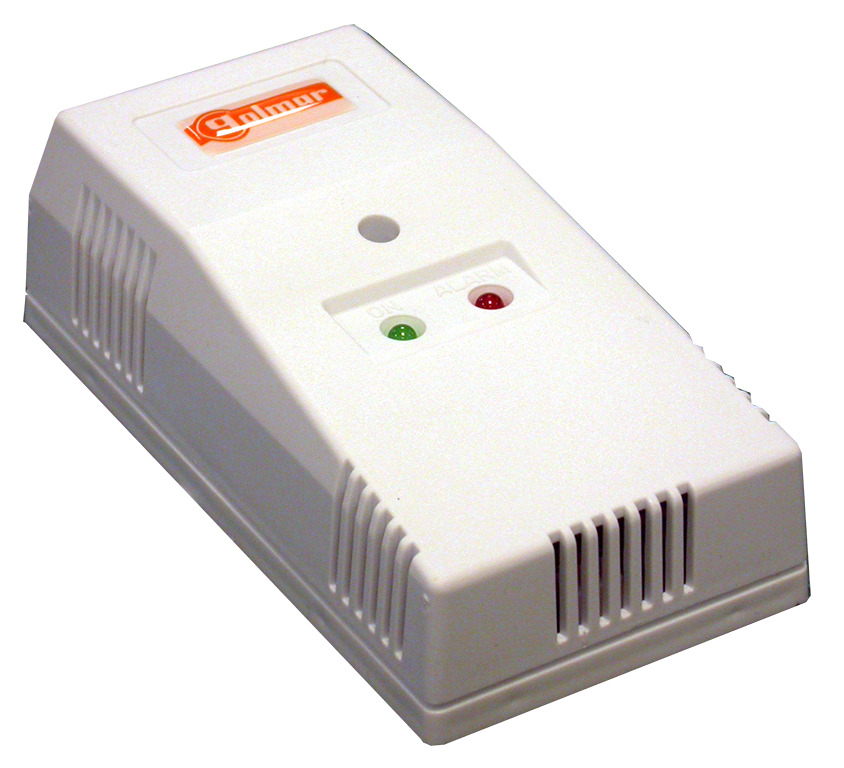

Standalone gas detector
Reference : DGA
Product code: 21123003
EAN code : 8429898026404
- Certified in accordance with EN 50194
- White ABS plastic finish
- Supply voltage: 230 Vac
- Installation height: 20 cm from the floor for heavy gases and 20 cm from the ceiling for light gases
- Coverage area: 25 m²
- Alarm output via volt-free relay and buzzer
- 9 Vdc auxiliary output (maximum consumption 100 mA)
- Bi-colour LED: red (alarm), green (standby)
- Dimensions: 70 (W) x 140 (H) x 50 (D) mm
More information
| Specifications | |
|---|---|
| Installation | 2 hilos |
| Technology | Cableado |
| Type | Gas |
| Reading / coverage distance (m) | 50 |
| 50 | |
| Signaling | 1 |
| Action indicator output | Yes |
| Relay contacts | Yes |
| Integrated camera | No |
| Installation height | Interior |
| Type Function | Autónomo |
| Use | Interior |
| Voltage | Interior |
| Certifications | Interior |
| Manufactured according to Norma. | 50 |
| Dimensions - High (mm) | 140 |
| Dimensions - Width (mm) | 70 |
| Dimensions - Deep (mm) | 50 |
