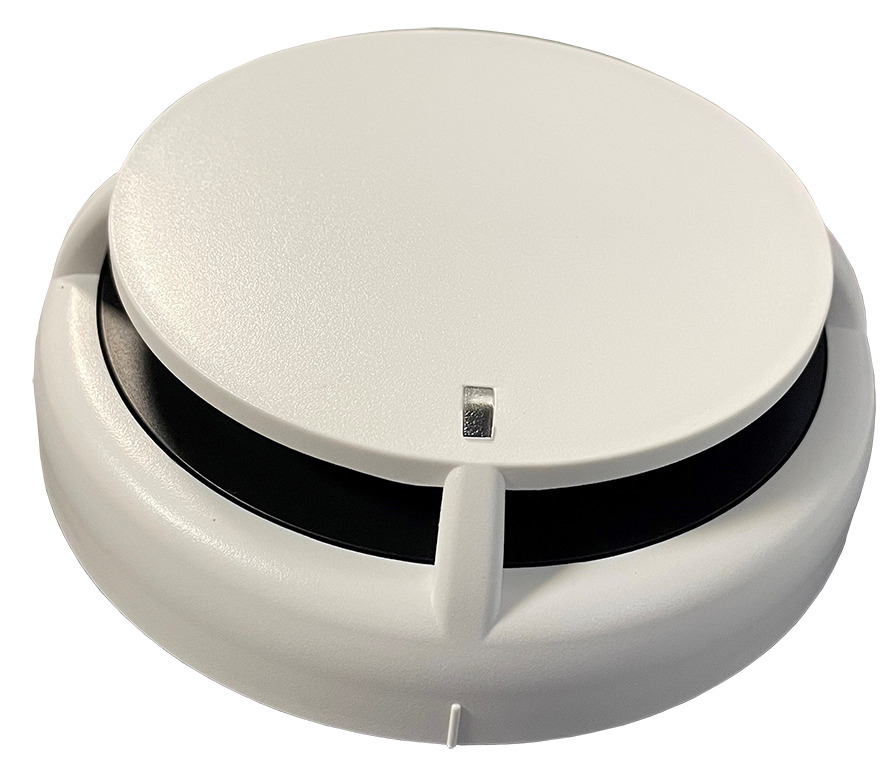

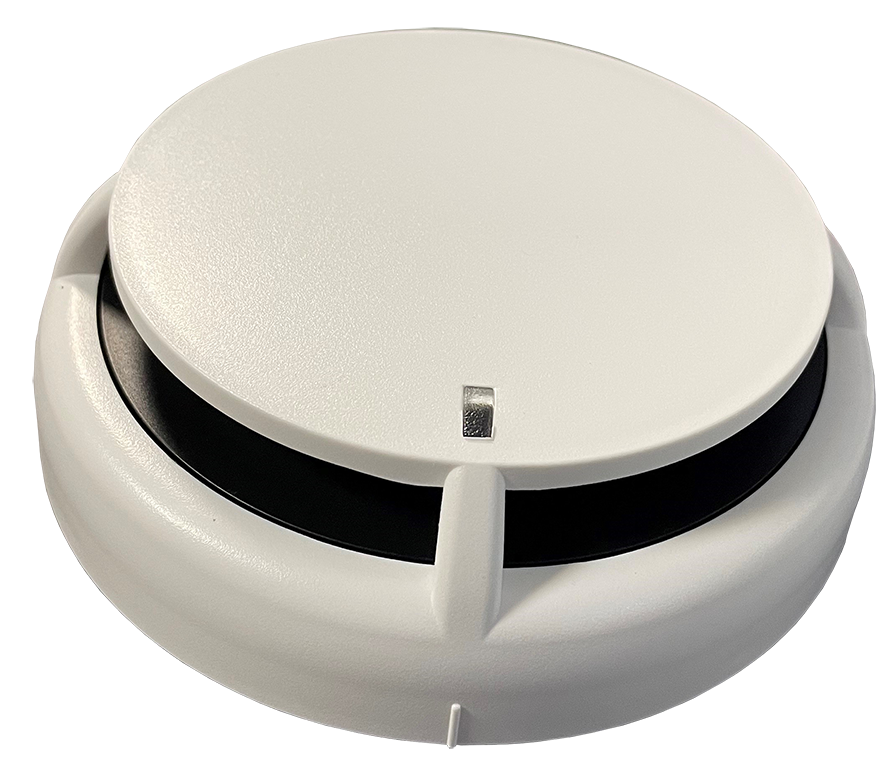

Conventional Optical Smoke Detector Series 50
Reference : DH50
Product code: 21121106
EAN code : 8429898026466
- Optical smoke detector
- Manufactured according to EN 54-7 standard
- Coverage area: 60m² (EN 54-14 standard)
- Power supply voltage: 12 to 30VDC, non-polarized
- Average standby consumption: 35µA at 18VDC
- Average alarm consumption: 30mA at 18VDC
- Operation indication: flashing red LED (one flash every 10 sec)
- Contamination indication: flashing red LED (two flashes every 10 sec)
- Alarm indication: steady red LED
- Output for remote indicator
- Supplied without base
- Product certified by AENOR
- Weight: 74g
- Dimensions: 110(Ø) x 32(H) mm
More information
| Specifications | |
|---|---|
| Installation | 2-wire,4-wire |
| Technology | Conventional,Wired |
| Serie | CCG,Range 50 |
| Type | Optical |
| To | Optical detector |
| Action indicator output | Yes |
| Relay contacts | No |
| Incorporates base | No |
| Type Function | by control panel |
| Use | Indoor |
| Dimensions - High (mm) | 32 |
| Dimensions - Diameter (Ø) | 110 |
