• CCTV
  • Type of device : DVR
  • Resolution : 2Mpx
  • Resolution : 5Mpx
  • Technology : Analog
  • Other features : Video analysis

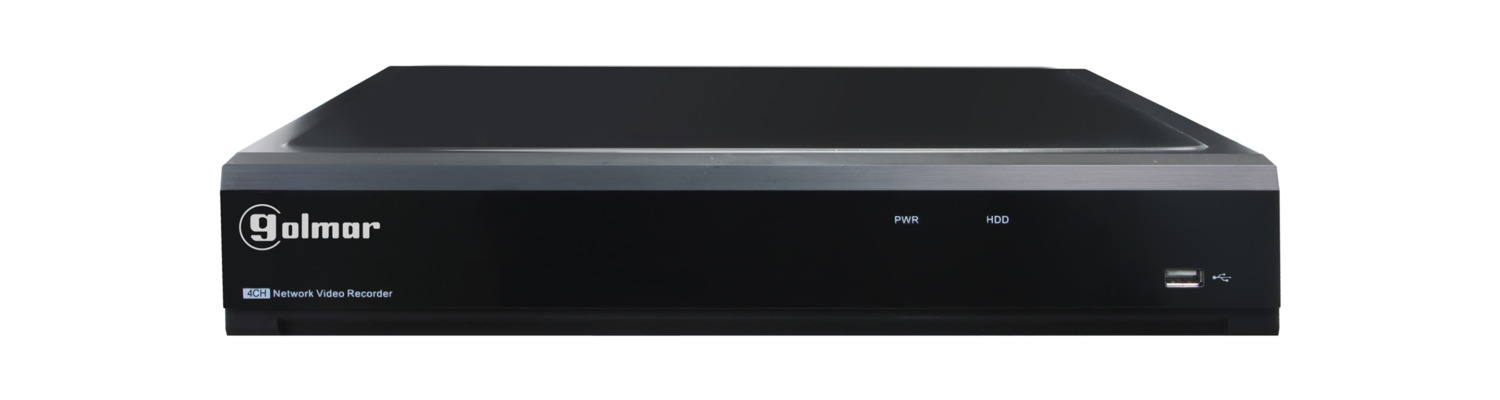

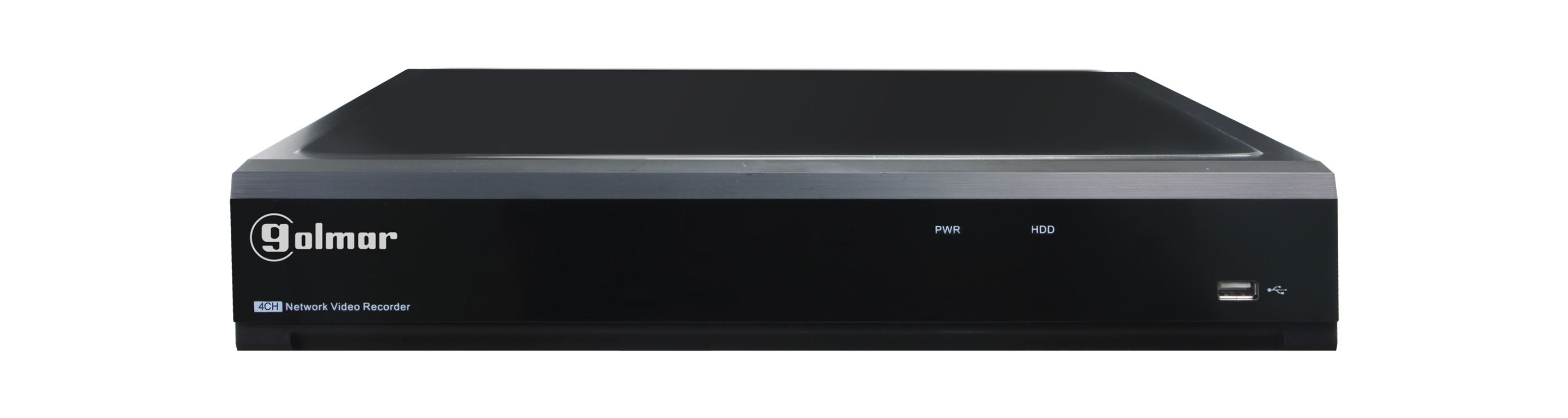

DVR-104P5 digital recorder for 4 cameras

Reference : DVR-104P5

Product code: 31600965

EAN code : 8429898024028

  • 5-in-1 digital recorder for 4 cameras
    Supports analogue inputs AHD, CVI, TVI, CVBS
    Supported analogue resolution CVBS, 1Mpx, 2Mpx, 5Mpx
    Analogue recording resolution 5Mpx Lite
    IP resolution 5MPx
    Video compression H.265
    Maximum 6 channels (4 + 2)
    HDMI / VGA / BNC output
    4E/1S alarm
    4E/1S RCA audio
    Telemetry via coaxial UTC and RS-485
    With intelligent video analysis
    Supports 1 hard disk
    1Tb disk included
    GolmarView App
    VMS Pro software
    Dimensions 300 x 50 x 227 (W x H x D) mm

More information
Type DVR
Video compression format H.265 / H.264
Audio compression format G.711a
Video format AHD / CVI / TVI / CVBS
Analogue video channels 4
IP video channels 2 (up to 6 by disabling analogue channels)
Hybrid configuration Yes
Video outputs HDMI, VGA, CVBS
PoE ports No
Compatible IP cameras Golmar, ONVIF
Refresh recordings 5MPx-Lite@12fps, 1080p@15fps, 720p@25fps
Maximum input bandwidth 8-24Mbps (additional 4Mbps per disconnected analogue camera)
Maximum output bandwidth 48Mbps
Recording method Programmable, motion detection, alarms, PIR
Video analysis (VA) Analogue channels: Perimeter Intrusion, Crossing Line, Pedestrian, Sound, Tampering
IP Channels: Perimeter intrusion, crossing line, pedestrian, vehicle, stationary object, face, counter, sound, tampering
Face recognition No
Synchronous playback Yes
PTZ control Yes
RS-485 Yes
I/O Audio 4E/1S RCA
Alarms 4E/1S
USB 2 x USB 2.0
Network interface RJ45
Hard disk included 1Tb
Disk Bays 1
Free disk bays 0
Remote access GolmarView App, VMS Pro PC software
Operating temp. 0°C~+40°C
Power Consumption 15W
Power consumption 12Vdc / 2A (included)
Dimensions 300 x 227 x 53 mm (W) x (D) x (H)
Weight 1,4Kg
