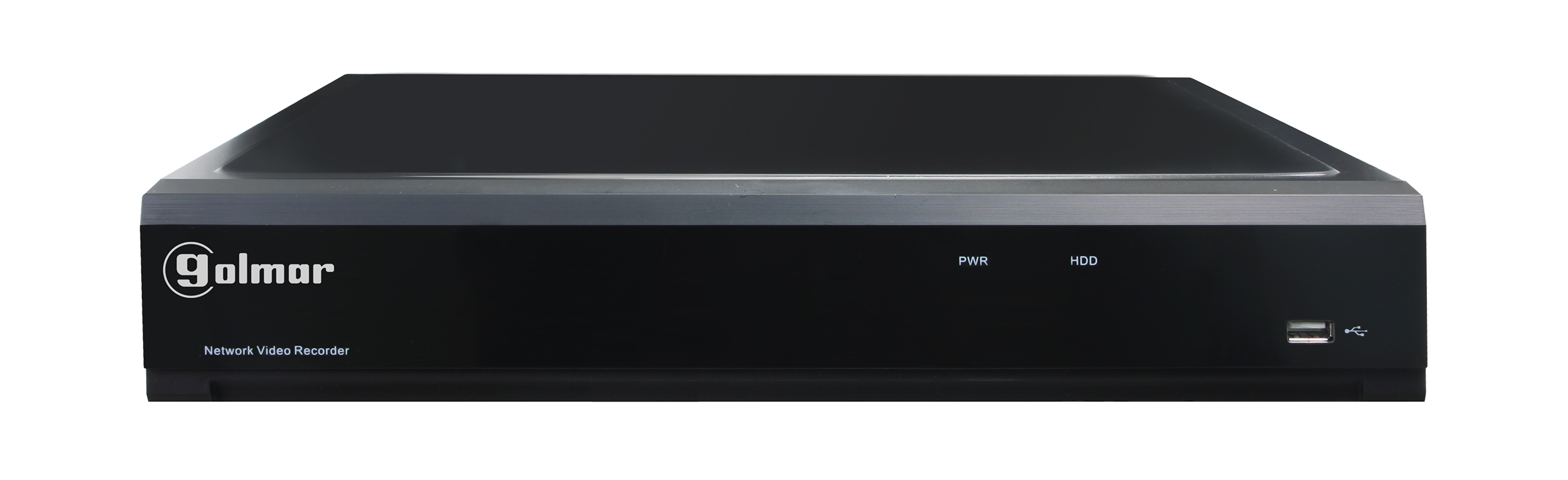

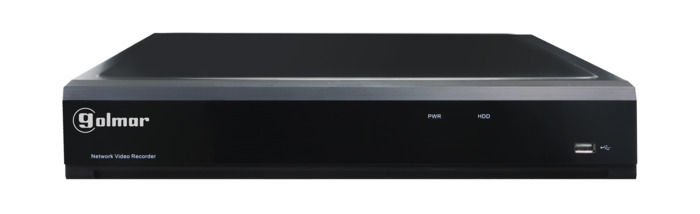

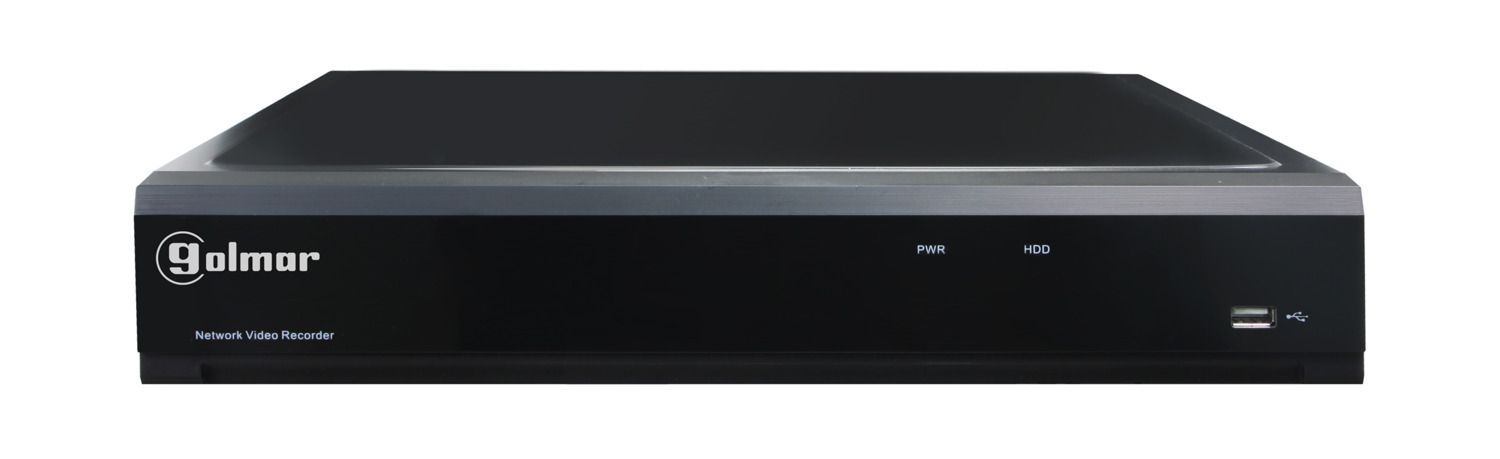

DVR-116R 4K digital recorder for 16 cameras

Reference : DVR-116R

Product code: 31600975

EAN code : 8429898025315

  • Admite entradas analógicas AHD, CVI, TVI y CVBS
    Resoluciones analógicas admitidas: CVBS, 1Mpx, 2Mpx,
    5Mpx y 4K (8Mpx)
    Resolución de grabación analógica: 4K
    Resolución IP: 4K
    Compresión de vídeo H.265
    Máximo 24 canales (16 + 8)
    Salidas HDMI / VGA / BNC
    16 entradas y 1 salida de alarma
    16 entradas y 1 salida de audio mediante conectores RCA
    Telemetría por coaxial UTC y RS-485
    Análisis de vídeo inteligente
    Admite hasta 2 discos duros
    Incluye disco duro de 2Tb
    App GolmarView
    Software VMS Pro
    Dimensiones: 375(An) x 50(Al) x 340(P) mm

More information
Type DVR
Video compression H.264,H.265
Audio compression G.711a
Analog video channels 16
IP video channels 8 (up to 24 by disabling analog channels)
Max. Resolution (MPx) 8
Hybrid architecture Yes
Video outputs HDMI, VGA, CVBS
Compatible IP cameras ONVIF,Golmar
Refreshment recordings 8MPx@10fps, 5Mpx@15fps, 4MPx@20fps, 1080p@25fps , IP@25fps
Maximum input bandwidth (Mbps) 64
Maximum output bandwidth (Mbps) 192
Recording method Manual,Scheduled,Motion detection,Alarmas
Video Analysis LCD,PID,PD,VD,FD
Face recognition Yes
Synchronous playback. Yes
Control PTZ. Yes
RS-485 Yes
I / O audio 16/1
I / O alarms 16/1
USB 2 x USB2.0, 1 x USB3.0
Network interface RJ45
Hard disk included (TB) 2
Disc Bays. 2
Free disk bays 1
Remote Access / App Web,App Golmarview,VMS Pro
Dimensions - High (mm) 53
Dimensions - Width (mm) 375
Dimensions - Deep (mm) 340
Relative humidity work (max.) 90%
Max Disk Memory (TB) 8
Included power supply Yes
Input voltage (V) 12Vcc
