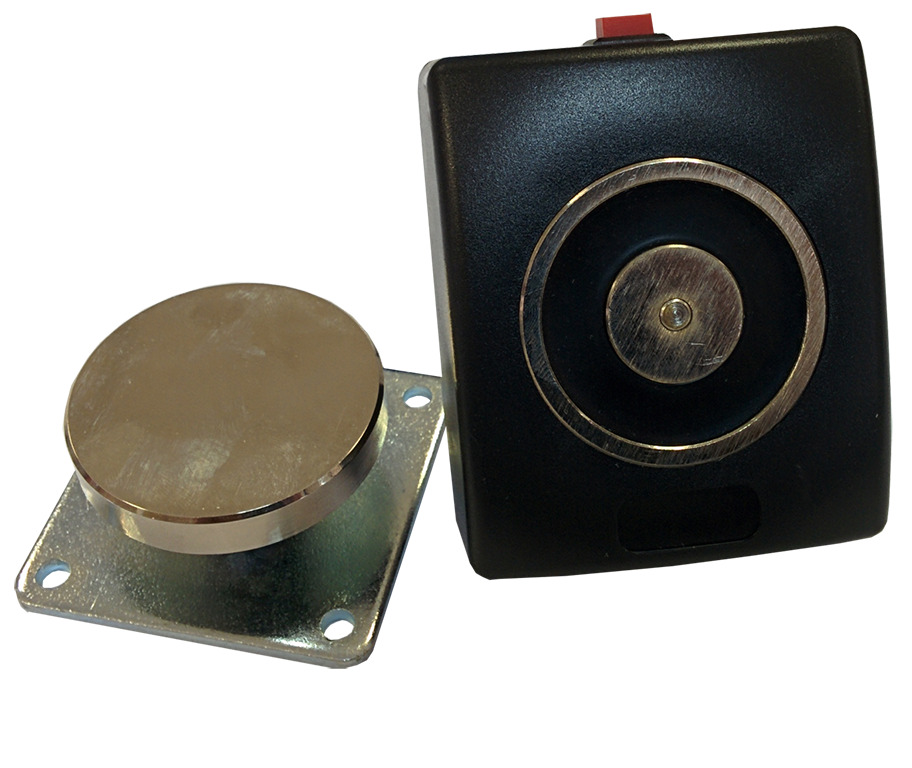

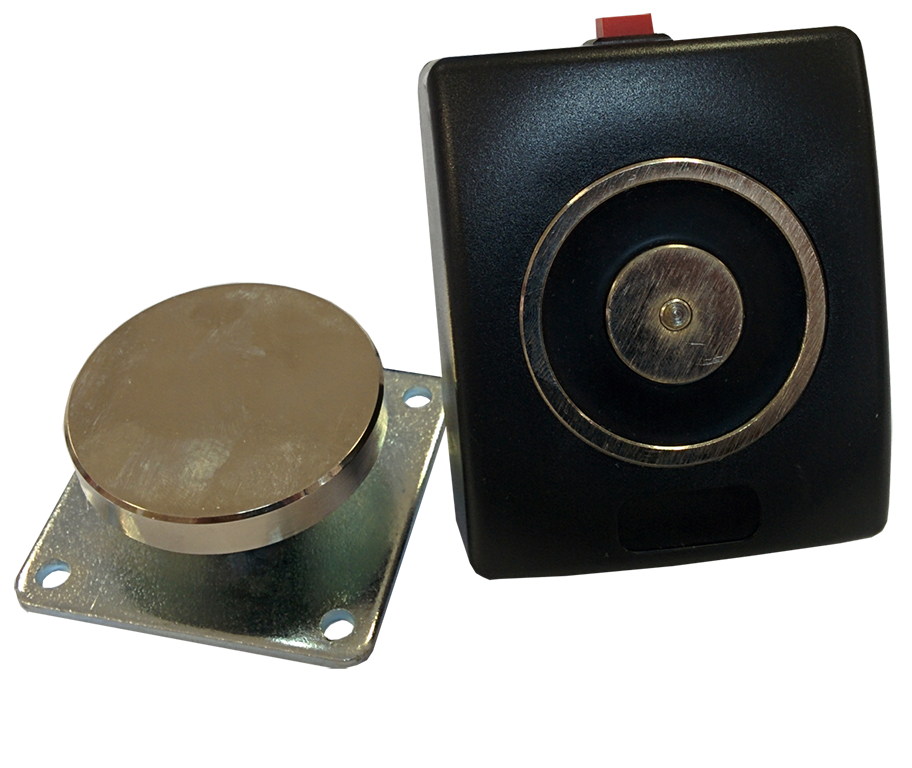

Electroimán con desbloqueo 55Kg
Reference : E/403OP
Product code: 21161408
EAN code : 8054752881396
More information
| Specifications | |
|---|---|
| Input voltage (V) | 24Vcc |
| Unlocking | Yes |
| Modo de funcionamiento | Normal |
| Maximum retention force (N) | 550 |
| Reverse performance | No |
| Includes Shield | Yes |
| Shield type | Short |
| Max. consumption (W) | 1.68 |
| Retainer Dimensions - Height (mm) | 90 |
| Retainer Dimensions - Width (mm) | 75 |
| Retainer Dimensions - Depth (mm) | 35 |
| Dimensions Anchorage - High (mm) | 65 |
| Dimensions Anchorage - Width (mm) | 65 |
| Dimensions Anchorage - Deep (mm) | 53 |
