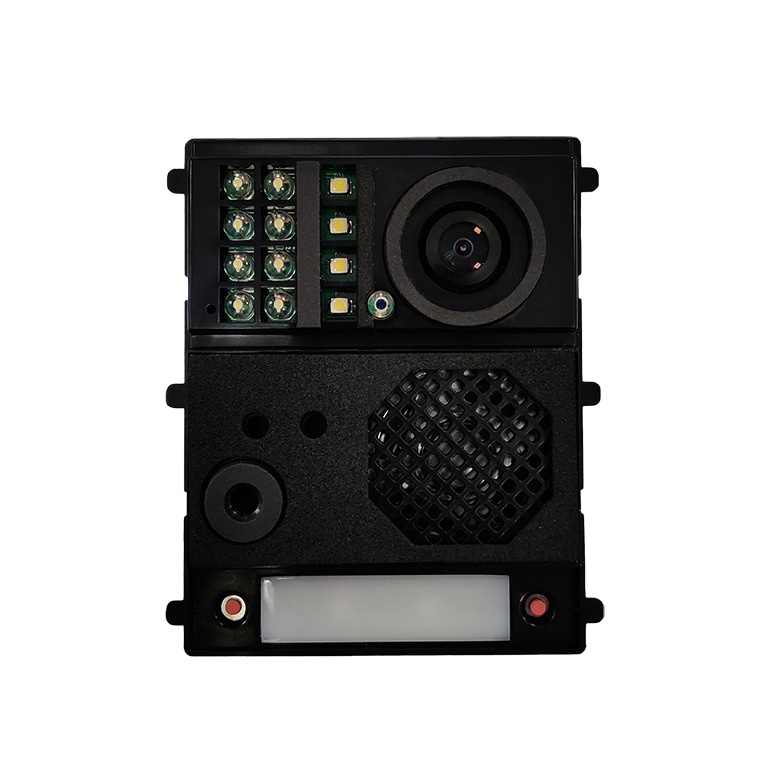

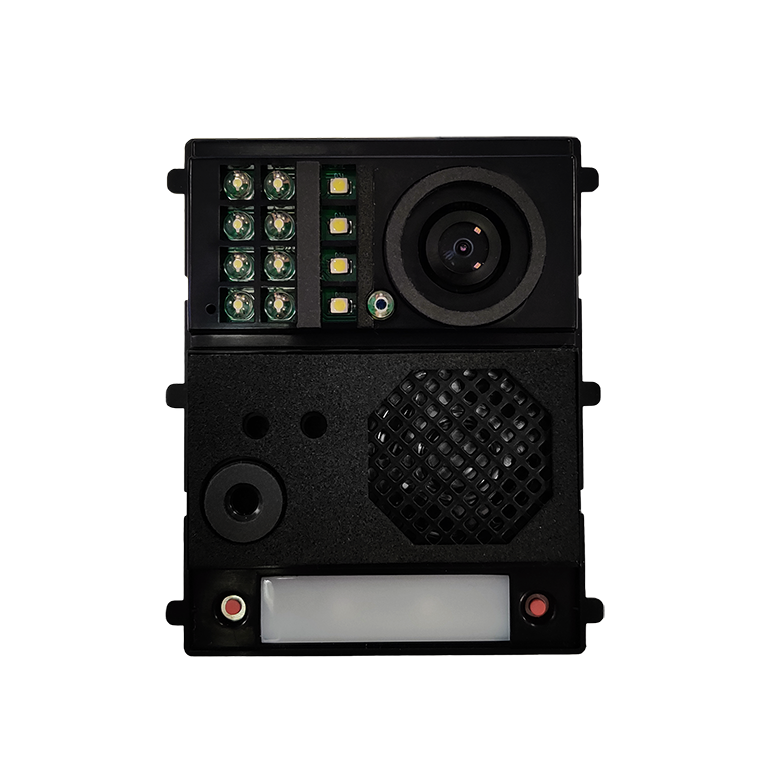

EL632/G+/48 IP DUAL POE sound module with camera

Reference : EL632/G+/48

Product code: 12325632A

EAN code : 8429898024615

  • For Nexa push buttons door panels.
  • Digital IP "G+" installation with TCP/IP protocol.
  • Wide-angle camera and LED lighting controlled by light sensor.
  • Privacy on audio, video and door open progresses.
  • Prompt messages (language selectable) and coloured icons acknowledge the system status (call in progress, in communication, lock is activated or the system is busy).
  • Connection to push button modules using small flat cables provided with the modules.
  • Opening of two different doors from the same panel.
  • Removable terminal connector for easy wiring.
  • Includes two push buttons.
  • Compatible with PoE power supply standard ieee 802.3af.

For EL632/G+ model click here.

More information

The necessary components for a system of these characteristics are:

  • Use one EL632/G+/48 video module per panel.
  • In compositions with more than 2 pushbuttons, add one EL610D 10P module for every 10 pushbuttons until the desired number of pushbuttons is obtained (max. 132 pushbuttons).
  • Add one FA-G+ power supply unit for every 8 devices (outdoor panels, monitors...).
  • Make the distribution to the different devices using D4L-G+/PoE distributors with four outputs.
  • For distribution of the devices in IN/OUT to use injectors DCP/G+, accompanied of power supply FA-DC48/G+ and switches of Ethernet DCS/G+ in monitors.
  • Choose ART 7/G+/48 DUAL POE video units or ART 7W/G+/48 DUAL POE units with integrated wifi to receive calls through the free G2CALL app (available for Android and IOS).
  • Add ART 7/G+/PCM video units and ART 7W/G+/PCM if you want the indoor unit to have a PCM/G+ private call panel.
  • Use the Device Manager software to search any Golmar IP G+ device in the network.
Type of device Pushbuttons
Audio of communication hands-free
Call type Individual call,Group call
Push button Double
Vocal messages Yes
Available languages English,Spanish,Portuguese
Speaker power (W) 1
Integrated camera Yes
Pan & Tilt. Yes
Sensibility (lux) 7
Horizontal field of view (º) 130
Vertical field of view (º) 70
Compatibility ONVIF,Golmar,VoIP SIP,SIP
Remote Access / App Web
Operation Mechanical Push Button
Number of buttons 2
I / O audio Microphone,Speaker
Inductive loop No
Guidance LEDs Yes
Minimum illumination (lux) 0.1
Backlumination management Yes
Images by sec. (FPS) 25
Video format HDTVI
Format / Video Compression H.264
Main Stream (FPS) 720P
Sub Stream (FPS) VGA
Log of calls Yes
Management software Yes
Programming Computer,From the own device
HW platform Linux
Protocols TCP/IP
Volume settings. Yes
Input voltage (V) 12Vcc,PoE,18Vcc
Requires additional feeder No
Rest consumption (W) 2.8
Max. consumption (W) 5.8
Installation UTP
Max. (M) 100
Technology IP G +
Functions Call to concierge,Addressbook creation,RTSP streaming
Number of door release relays 2
Video input No
Microphone sensitivity (DB) 105
Relative humidity work (max.) 90
Relative humidity Work (min.) 10
Maximum working temperature (ºC) 60
Minimum working temperature (ºC) -20
Material Plastic
Dimensions - Width (mm) 81
Dimensions - High (mm) 98
Dimensions - Deep (mm) 39
Colour Black
Weight (gr.) 200
