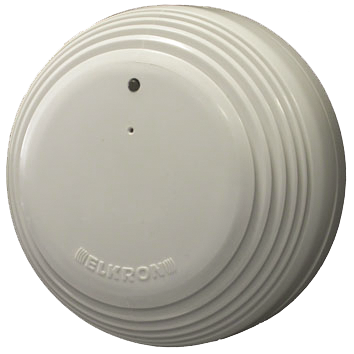

Analogue optical detector
Reference : FDO500
Product code: 80SD4800121
EAN code : 8033959746448
- For FAP541, FAP544EVO, FAP548EVO control panels
- Smoke detector
- Manufactured in accordance with EN 54-7
- Coverage area: 60 m² (EN 54-14 Standard)
- Short-circuit protection
- Supply voltage: 20 Vdc (modulated)
- Average standby current: 250 µA at 20 Vdc
- Average alarm current: 2 mA at 20 Vdc
- Remote indicator output
- Bi-colour LED: red (alarm), green (standby)
- Operating temperature: 0 °C to 50 °C
- Maximum relative humidity: 93%
- Supplied without base
- Unit certified by EVPU
- Weight: 70 g
- Dimensions: 90 (Ø) x 31 (H) mm
More information
| Specifications | |
|---|---|
| Installation | 4 hilos |
| Technology | Analógico |
| Serie | FAP500 |
| Type | Óptico |
| To | Det. Óptico |
| Signaling | 1 |
| Action indicator output | Yes |
| Relay contacts | No |
| Integrated camera | No |
| Installation height | Interior |
| Incorporates base | No |
| Type Function | Con central |
| Use | Interior |
| Voltage | Interior |
| Certifications | Interior |
| Dimensions - High (mm) | 31 |
| Dimensions - Diameter (Ø) | 90 |
| Weight (kg.) | 0.07 |
