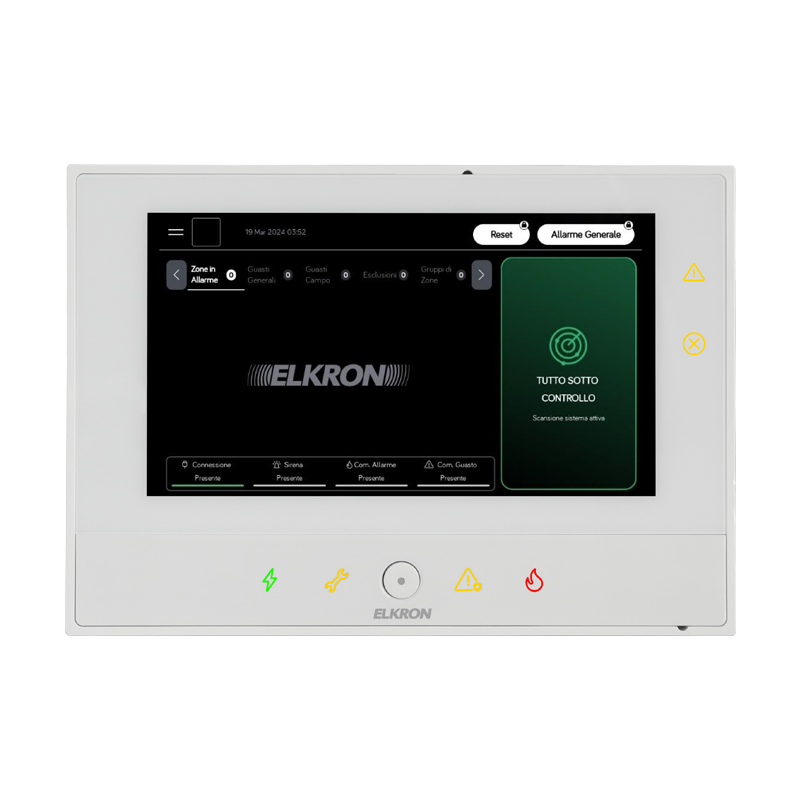

Digital-Touch Analog Repeater Panel
Reference : FKP500T
Product code: 80KP5600121
EAN code : 8034034448400
- Remote repeater panel for event display
- For FAP500 Series analogue control panels
- 4 x 40 backlit display
- Repeater LEDs for alarm, power supply and exclusion
- Connection to the control panel via RS485 protocol, 2-wire, with a maximum distance of 1,200 m
- RS232 / 485 module required, not included (80IT1410121)
- Available on request
- Power supply: 24 V, +10 / -15%
- Maximum consumption: 185 mA at 24 Vdc
- Relay output: 1 A / 30 V, resistive load
- Operating temperature: -5 °C to 40 °C
- Maximum relative humidity: 95%
- Dimensions: 202 (W) x 142 (H) x 24 (D) mm
- IP30 protection rating
More information
| Specifications | |
|---|---|
| Serie | FAP500 |
| Installation | 4 hilos,2 hilos BUS |
| Technology | Analógico |
| Comunication Type | BUS,RS232/485 |
| Signaling | Led,Pantalla,Acústicamente |
| Input voltage (Vac) | 24 |
| Mounting | Superfície,Empotrado |
| Use | Interior |
| Dimensions - High (mm) | 202 |
| Dimensions - Width (mm) | 142 |
| Dimensions - Deep (mm) | 22 |
