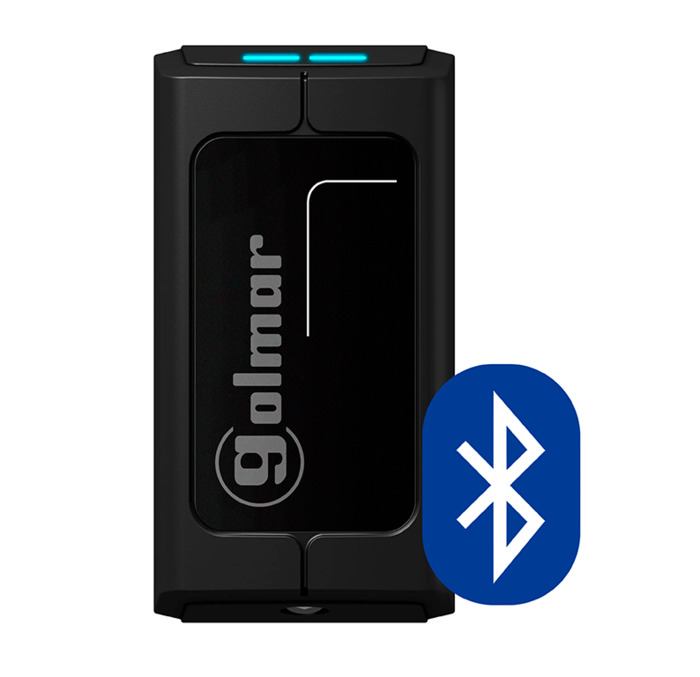

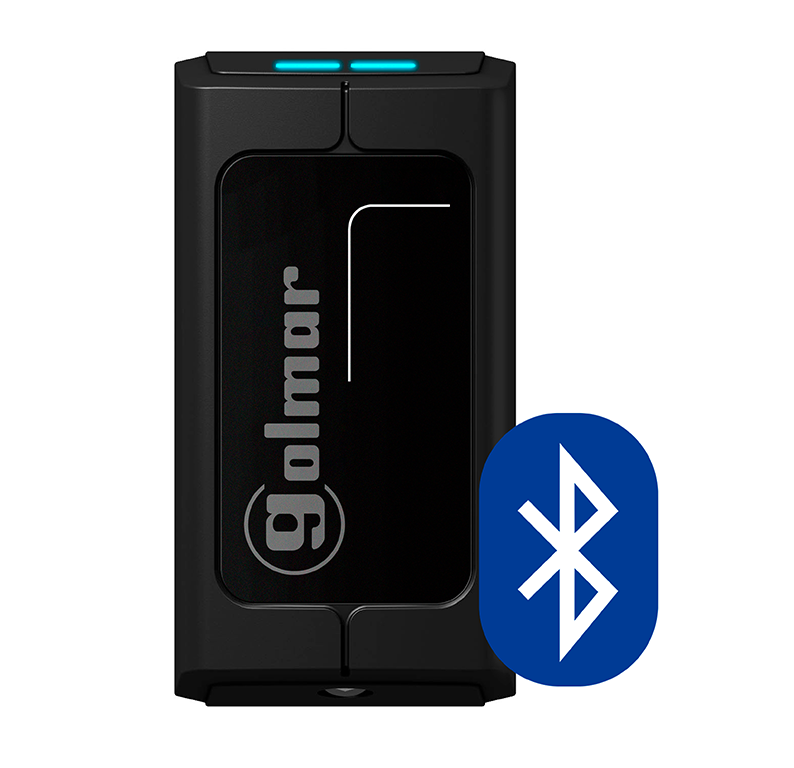

GM-IPOP 40 proximity and Bluetooth wall-mounted reader
Reference : GM-IPOP 40
Product code: 20720004
EAN code : 8429898021140
- Water-proof and vandal-proof 13.56MHz proximity reader and 2SAFE technology.
- Integrates BLE technology that allows the user to access via smartphone (requires the purchase of "PUNTOS BLE" (BLE POINTS)). The application for its use is K-APP available on Android and IOS.
- For IP OPENER and EASYGATE controllers.
- Suitable with CARDDOOR MF+, TAGDOOR MF+, ISOPROX, KEYPROX SE, GM-WEIPOP and GM-WEIPOP MF+ cards and keyfobs.
- Degree of protection IK10 and IP65 (provided installation instructions are complied with)
- Outdoor wall installation
Promotional video "Access via Bluetooth".
Promotional video "Bluetooth Management".
Dimensions: 47(W) x 90(H) x 23(D) mm
More information
| Specifications | |
|---|---|
| Technology | 2SAFE |
| Type Function | Slave |
| Reading / Detection Type | Proximity,Bluetooth |
| RFID Frequency (MHz) | 13.56 |
| RFID Reading /coverage distance (cm) | 4 |
| Use | Outdoor,Indoor |
| Mounting | Surface |
| Incorporates base | Yes |
| State LEDs | Yes |
| Input voltage | 12Vdc |
| Powered by controller | Yes |
| Degree of protection (IK) | 10 |
| Degree of protection (IP) | 65 |
| Maximum working temperature (ºC) | 60 |
| Minimum working temperature (ºC) | -20 |
| Dimensions - High (mm) | 90 |
| Dimensions - Width (mm) | 47 |
| Dimensions - Deep (mm) | 23 |
| Weight (gr.) | 65 |
