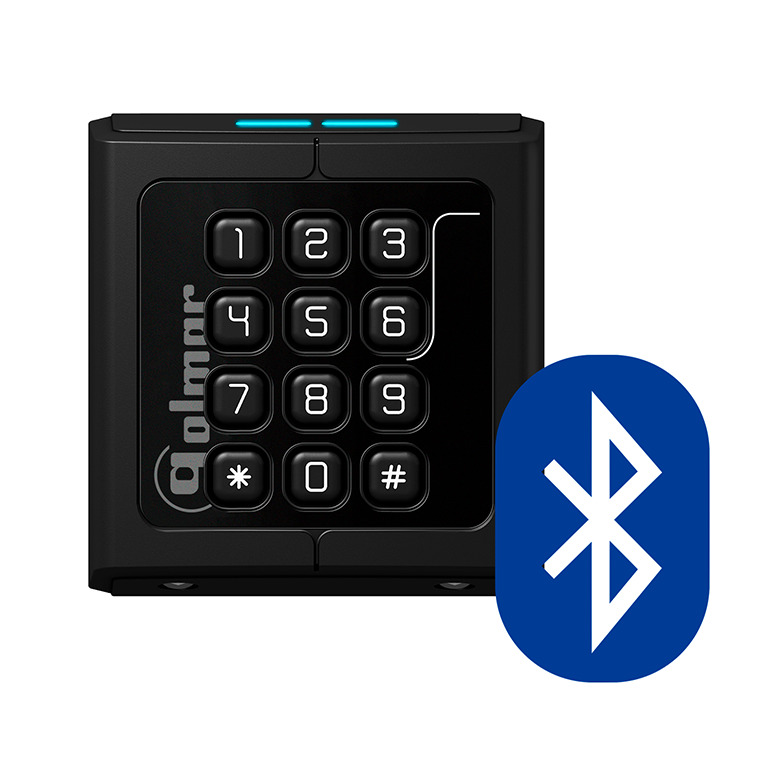

GM-IPOP 80D proximity, PIN and Bluetooth wall-mounted reader

Reference : GM-IPOP 80D

Product code: 20720006

  • Water-proof and vandal-proof keypad with 13.56MHz proximity reader and 2SMART technology.
  • Integrates BLE technology that allows the user to access via smartphone (requires the purchase of "PUNTOS BLE" (BLE POINTS)). The application for its use is K-APP available on Android and IOS.
  • For IP OPENER and EASYGATE controllers.
  • Suitable with CARDDOOR MF +,TAGDOOR MF+, GM-WEIPOP, ISOPROX and KEYPROX cards and keyfobs.
  • IP65 and IK10 protection ratings
  • Outdoor wall installation

    Promotional video "Access via Bluetooth".

   Promotional video "Bluetooth Management".

Dimensions: 85(W) x 90(H) x 25(D) mm

More information
Technology 2smart
Type Function Slave
Reading / Detection Type PIN,Proximity,Bluetooth
RFID Frequency (MHz) 13.56
RFID Reading /coverage distance (cm) 4
Use Outdoor,Indoor
Mounting Surface
Incorporates base Yes
State LEDs Yes
Input voltage 12Vdc
Powered by controller Yes
Colour Black
Material Plastic
Degree of protection (IK) 10
Degree of protection (IP) 65
Maximum working temperature (ºC) 60
Minimum working temperature (ºC) -20
Dimensions - High (mm) 90
Dimensions - Width (mm) 85
Dimensions - Deep (mm) 25
Weight (gr.) 85
