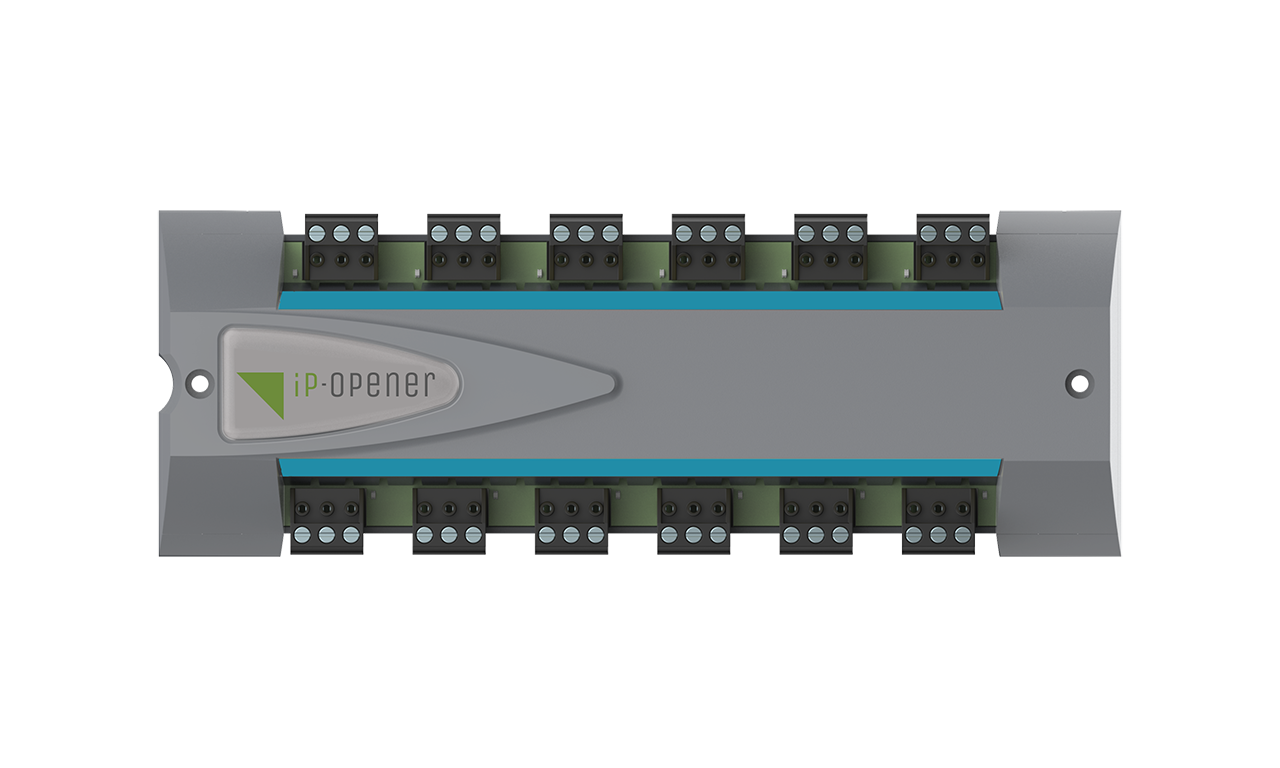

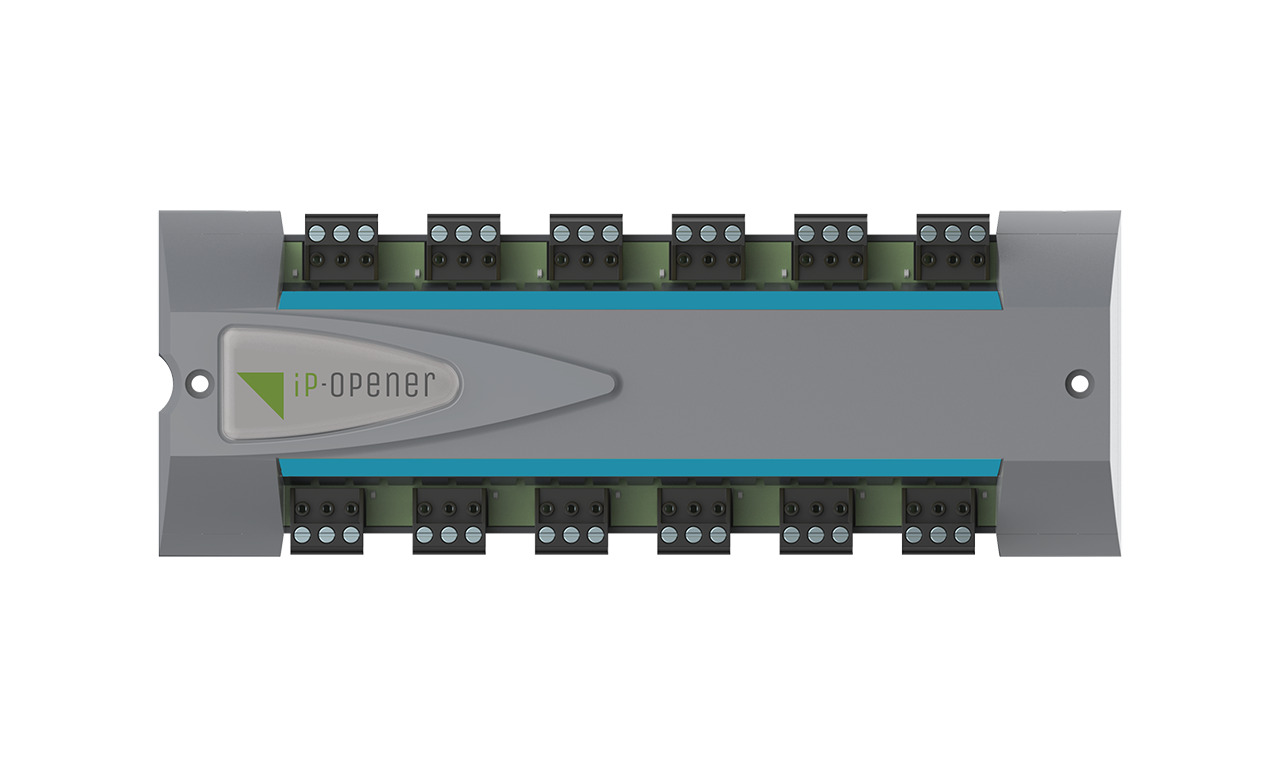

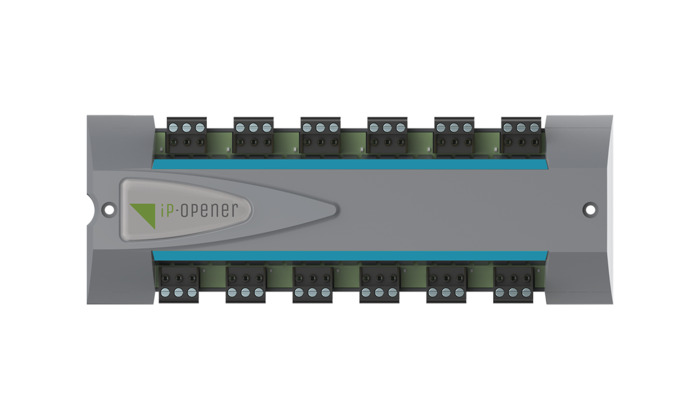

12 relay expander card GM-IPOP-EXP12S
Reference : GM-IPOP-EXP12S
Product code: 20780212
EAN code : 8429898021072
- 12 output expander module
- 48VDC/1A or 24VDC/5A output relays
- Plug-in installation on the controller
Dimensions: 198(W) x 70(H) x 26(D) mm
More information
| Specifications | |
|---|---|
| Use | Indoor |
| Maximum working temperature (ºC) | 50 |
| Minimum working temperature (ºC) | -20 |
| Dimensions - High (mm) | 70 |
| Dimensions - Width (mm) | 198 |
| Dimensions - Deep (mm) | 26 |
| Weight (gr.) | 142 |
Downloads
INSTALLATION MANUAL | GM·IPOP·CONFIGURATION | REV 0223 | English
INSTALLATION MANUAL (2) | GM-IPOP-CONNECTION | REV 0124 | English
USER MANUAL | IPOP-END-USER-MANAGEMENT.pdf | REV 0124 | English
USER MANUAL (2) | APPLICATION·NOTE·IP·OPENER | REV 0124 | English
SOFTWARE | GM·IPOP·IPSEARCH | REV 0121 |
certificate CERTIFICADO_-_GM·IPOP·EXP12S_·_GM·IPOP·EXP12E_·_GM·IPOP·10S·RS485_·_GM·IPOP·10E·RS485.pdf
