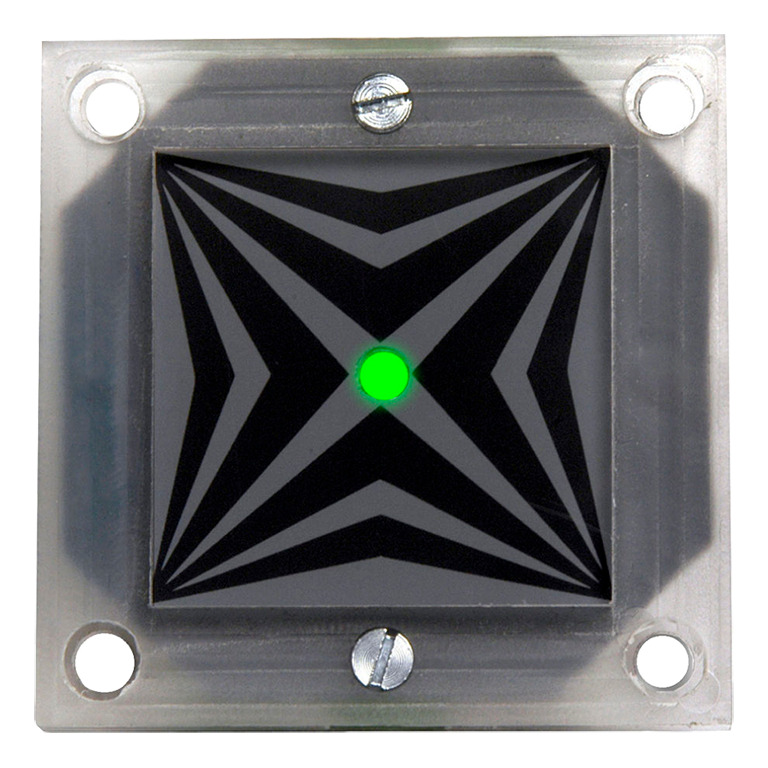

GM-IPOP-SQ40 reader for 40x40mm informative windows
Reference : GM-IPOP-SQ40
Product code: 20720022
- 13.56MHz proximity reader with 2SMART technology.
- Integrates BLE technology that allows the user to access via smartphone (requires the purchase of "PUNTOS BLE" (BLE POINTS)). The application for its use is K-APP available on Android and IOS.
- For IP OPENER and EASYGATE controllers.
- Suitable with CARDDOOR MF +,TAGDOOR MF+, GM-WEIPOP, ISOPROX and KEYPROX cards and keyfobs.
- Installation on outdoor panels with standard 40x40mm informative windows
Promotional video "Access via Bluetooth".
Promotional video "Bluetooth Management".
Dimensions: 60(W) x 60(H) x 16(D) mm
Dimension of reading area: 40(W) x 40(H) x 2(D) mm
More information
| Specifications | |
|---|---|
| Technology | 2smart |
| Type Function | Slave |
| Reading / Detection Type | Proximity,Bluetooth |
| RFID Frequency (MHz) | 13.56 |
| RFID Reading /coverage distance (cm) | 4 |
| Use | Outdoor,Indoor |
| Mounting | Embedded |
| Display | No |
| Expandable | No |
| Antenna | No |
| Incorporates base | Yes |
| Incorporates cover/front panel | No |
| State LEDs | Yes |
| Input voltage | 12Vdc |
| Powered by controller | Yes |
| Maximum working temperature (ºC) | 50 |
| Minimum working temperature (ºC) | -20 |
| Dimensions - High (mm) | 60 |
| Dimensions - Width (mm) | 60 |
| Dimensions - Deep (mm) | 16 |
| Special dimensions (mm) | Dimensión zona de lectura: 40(An) x 40(Al) x 2(P) mm |
| Weight (gr.) | 52 |
