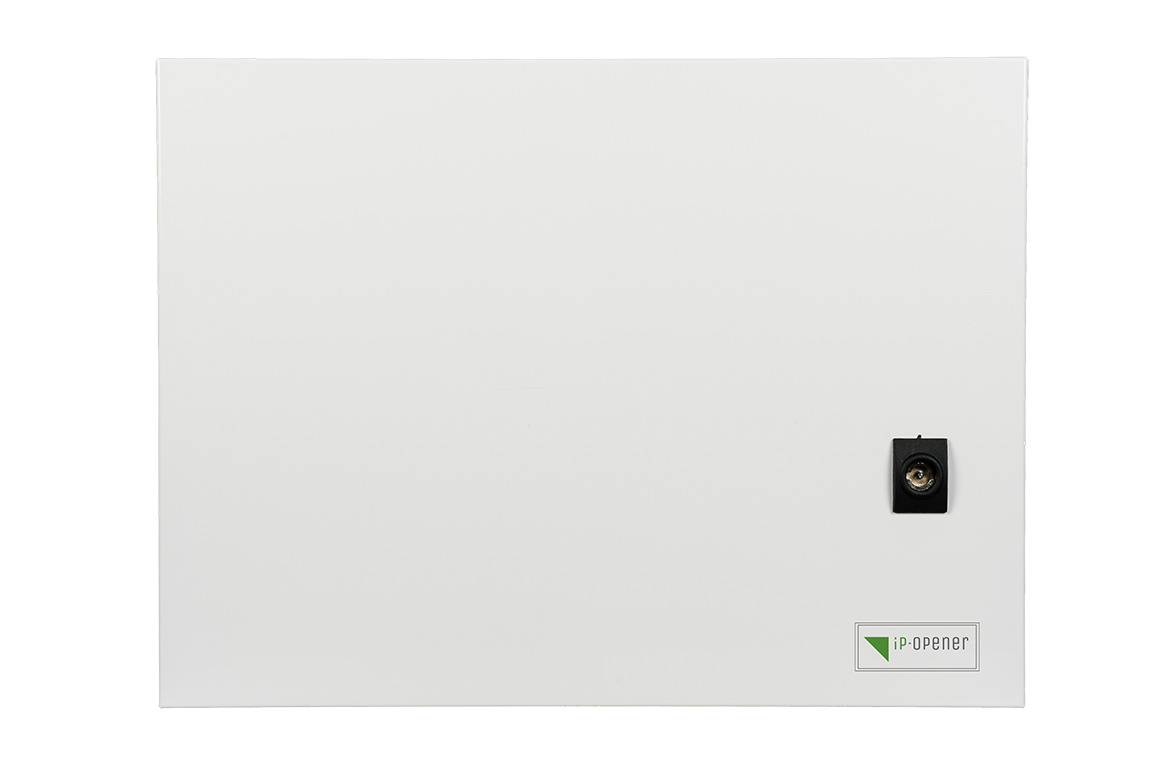

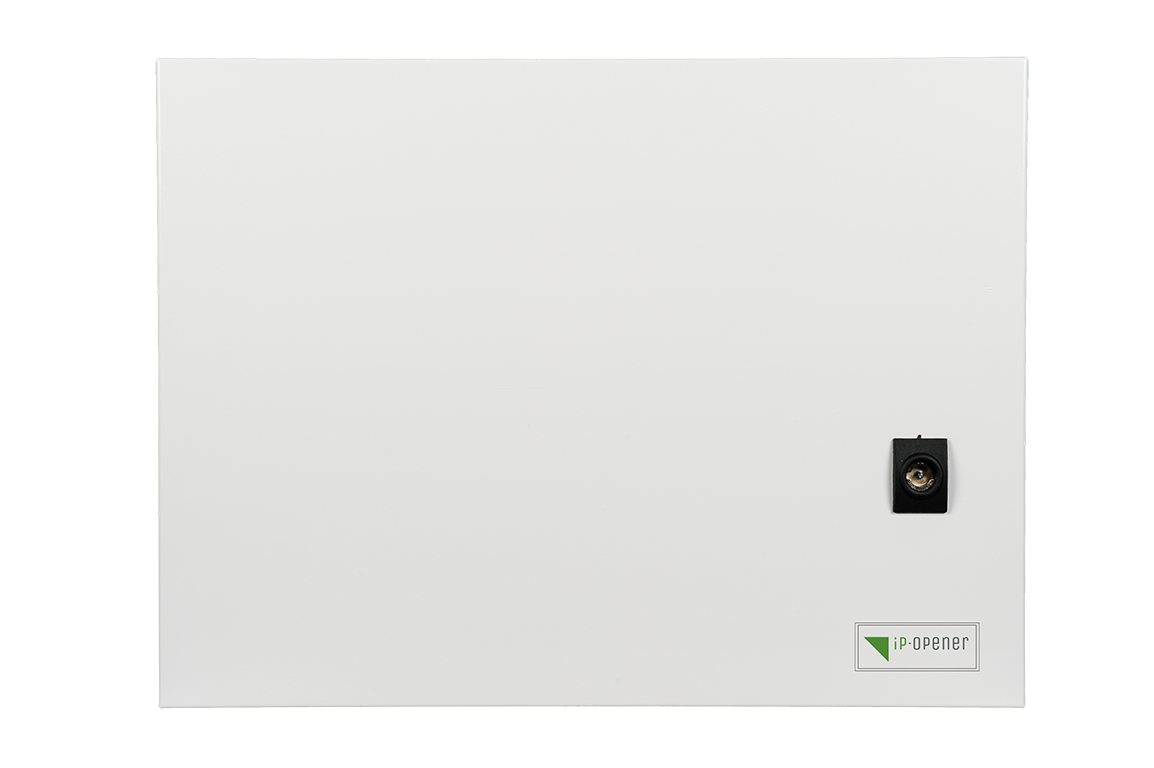

GM-PSIPOP-M metal cabinet with power supply for iP Opener controllers
Reference : GM-PSIPOP-M
Product code: 20700023
EAN code : 8429898027968
- Metal cabinet with lock
- To accommodate 2 controllers and 2 expander modules
- Incorporates 12Vdc/3.5A power supply unit
- Allows to house a BAT-7A battery
- Tamper
- Weight: 5400gr
Dimensions: 456(W) x 342(H) x 100(D) mm
More information
| Specifications | |
|---|---|
| Input voltage (Vac) | 230 |
| Output voltage (Vdc) | 12 |
| Adjustable output voltage | Yes |
| Output current (A) | 3.5 |
| Ground terminal | Yes |
| Electrical protection | Short circuit,Overvoltage |
| With backup battery | Yes |
| Batteries included | No |
| Battery charger | Yes |
| Dimensions - High (mm) | 342 |
| Dimensions - Width (mm) | 456 |
| Dimensions - Deep (mm) | 102 |
| Weight (gr.) | 5400 |
