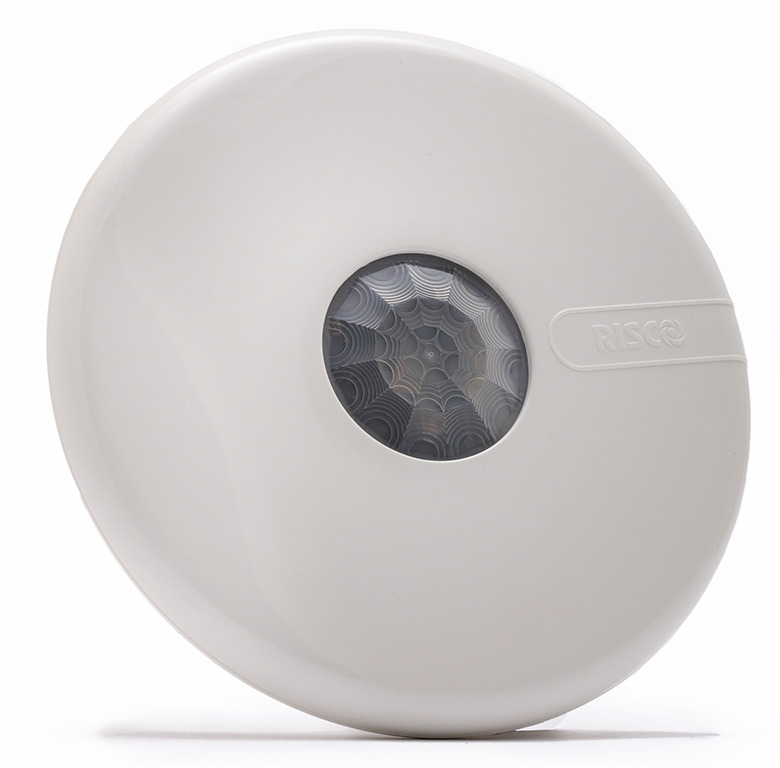

Grade 3 Dual Technology Ceiling Detector
Reference : GOLUNAR-DTG3
Product code: RK150DTG300
EAN code : 848584006403
- Detection Technology: Dual Infrared and Microwave
- Selectable triple EOL resistor via jumper
- True temperature compensation
- 360° coverage with Fresnel len
- Indoor installation
- Detection range: 12 meters
- Recommended installation height: 2.80 to 4.00 meters
- Power supply: 9 to 16 VDC
- Maximum current consumption: 15 mA
- Dimensions: 135 mm (Ø) x 27 mm (D)
More information
| Specifications | |
|---|---|
| Installation | 4 hilos |
| Technology | Cableado |
| Serie | LightSys + |
| Type | Doble IR |
| Coverage | 360 |
| Integrated camera | No |
| Installation height | Interior |
| Type Function | Con central |
| Use | Interior |
| Voltage | Interior |
| Colour | 360 |
| Certifications | Interior |
| Grade of security | Grado 3 |
| Dimensions - High (mm) | 27 |
| Dimensions - Diameter (Ø) | 135 |
