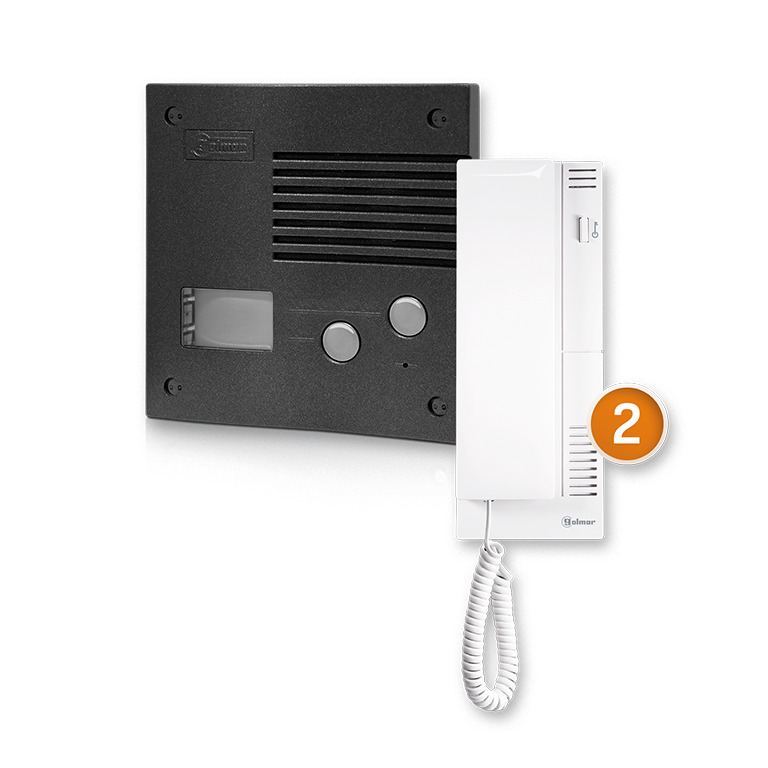

K-202 GRF two ways audio kit
Reference : K-202 GRF
Product code: 11242024B
EAN code : 8429898015507
4+n analogue installation.
Composed of:
- PE-295/2 GRF two push buttons audio door panel.
- M embedding box.
- 2 units of Tekna T-500 telephone with electronic call.
- TF-104 transformer.
Up to 3 telephones in the same villa.
To be used with 12Va.c. lock releases.
More information
Door panel characteristics:
- Vandal resistant (IK-09) and weatherproof (IP-44) door panel.
- 4+n analogue installation.
- Curved front of 2.5mm. thick injected aluminium in graphite finish.
- 4mm. thick polycarbonate card holding window.
- Double walled sound grille that prevents access to the sound circuit.
- Electronic call with acoustic acknowledgement signal at the door panel.
- Security screws with special key.
- Two stainless steel push buttons.
- Dimensions:
- External: 144(W) x 144(H) mm.
- Embedded: 131(W) x 131(H) x 45(D) mm.
Telephone characteristics:
- Casing manufactured in ABS RAL9003 white colour.
- Detachable telephone cord with connectors.
- Wall mounting with multiple fixing points.
- Electronic call.
- Dimensions: 85(W) x 218(H) x 54(D) mm.
