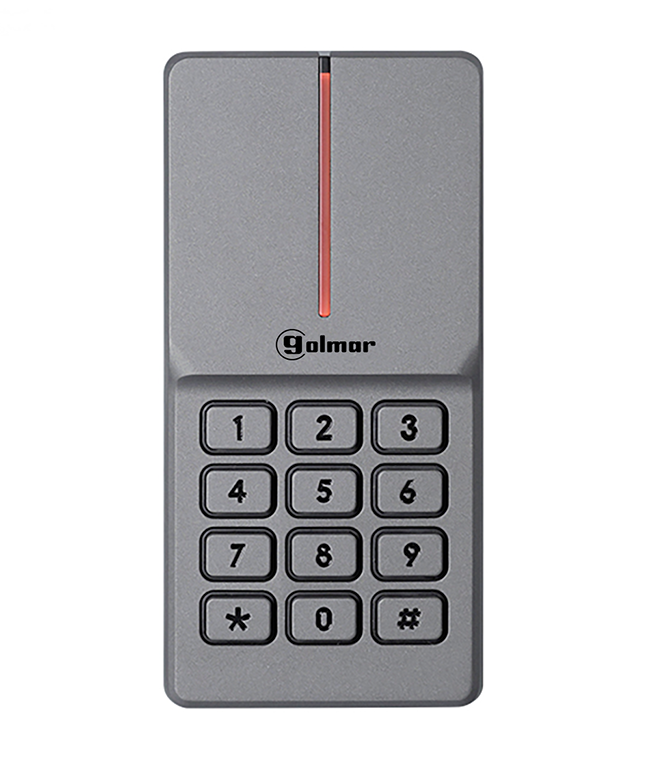

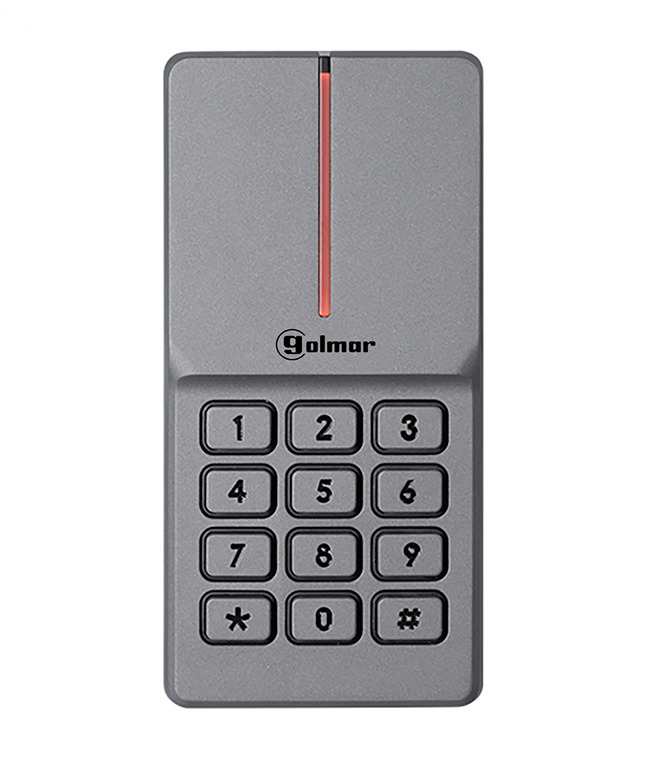

KEYBUS SE keypad and proximity reader
Reference : KEYBUS SE
Product code: 20720001
EAN code : 8429898024448
- Keypad with dual proximity reader and Wiegand 26 technology
- For IP OPENER, WCONTROL controllers or standalone operation
- Capacity for 2000 users
- Dual frequency band (13.56MHz and 125KHz)
- Suitable with PROKEY ID, TAGKEY ID, CARDDOOR MF+, TAGDOOR MF+, ISOPROX and KEYPROX SE cards and keyfobs
- Three-contact output relay (C, NO and NC)
- Wall installation with IP68 protection rating
- Stand-alone mode requires 12Vdc power supply.
Dimensions: 83(W) x 170(H) x 26(D) mm
More information
| Specifications | |
|---|---|
| Technology | wiegand |
| Type Function | Standalone,Slave |
| Reading / Detection Type | PIN,Proximity |
| RFID Frequency (KHz) | 125 |
| RFID Frequency (MHz) | 13.56 |
| RFID Reading /coverage distance (cm) | 2 |
| Use | Outdoor,Indoor |
| Max. Users | 2000 |
| Mounting | Surface |
| Signaling | Led |
| Relay contacts | Yes |
| Incorporates base | Yes |
| State LEDs | Yes |
| Input voltage | 12Vdc |
| Degree of protection (IP) | 68 |
| Maximum working temperature (ºC) | 60 |
| Minimum working temperature (ºC) | -20 |
| Dimensions - High (mm) | 170 |
| Dimensions - Width (mm) | 83 |
| Dimensions - Deep (mm) | 26 |
| Weight (gr.) | 610 |
