CCTV kit KIT-2DHVR2E with 2 domes

Reference : KIT-2DHVR2E

Product code: 31600908

EAN code : 8429898025384

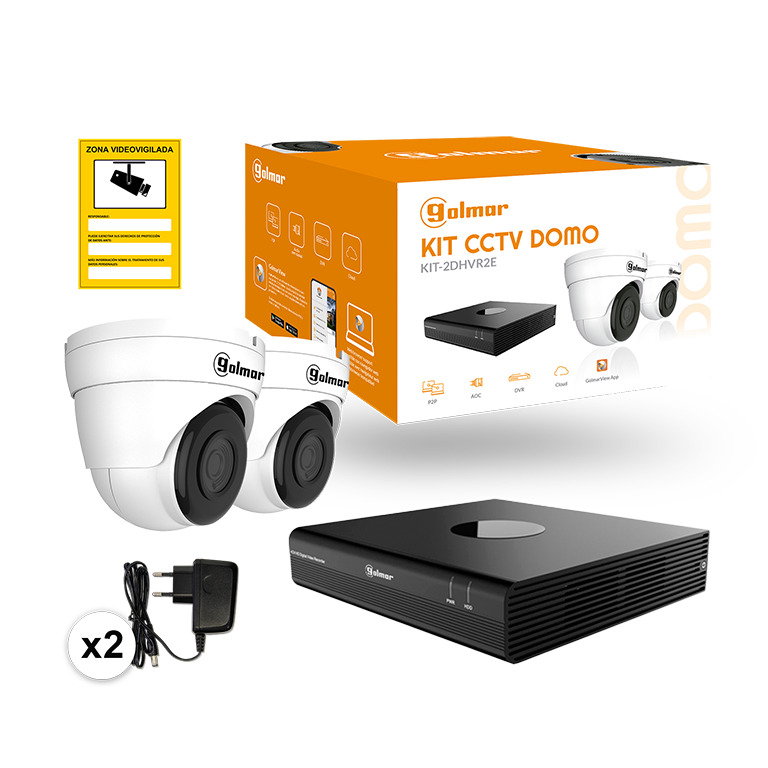

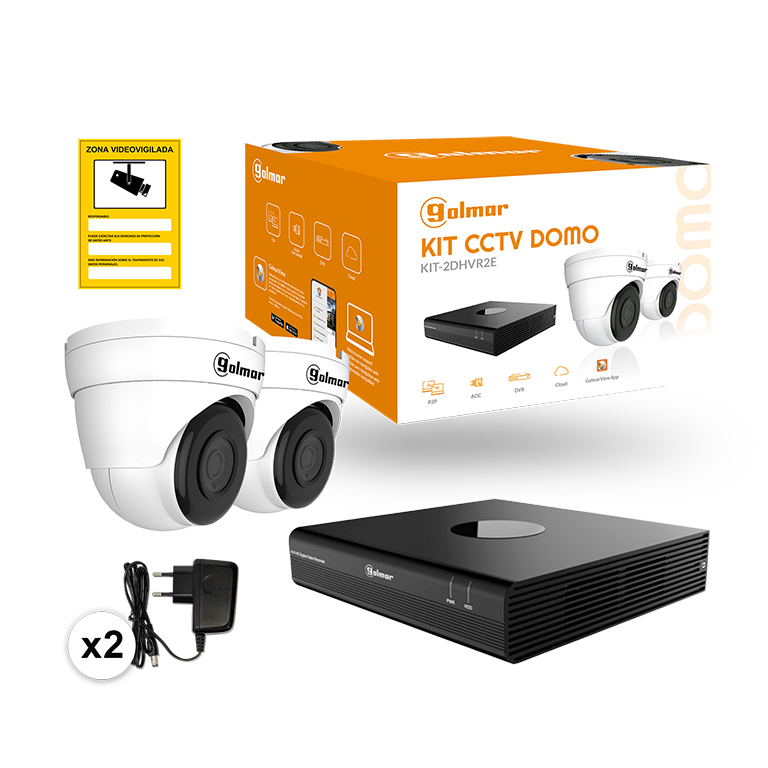

  • Kit consists of:

    4-channel hybrid DVR with AOC technology
    (audio over coaxial)
    2 x cameras AHD4-21D2E (31600705) dome type
    with microphone and AOC technology
    2 x 12Vdc/1A power supplies
    1 x CCTV-ADH sign
    DVR only supports 1 hard disk
    1Tb disk included
    Compatible with GolmarView App
    Compatible with VMS Pro software
    Not compatible with web browsers

More information
DVR Features
Type DVR
Video compression format H.264 / H.265
Audio compression format G.711a
Video format HDTVI / HDCVI / AHD / CVBS
Analogue video channels 4
IP video channels 1
Hybrid configuration Yes
Video outputs 1 x HDMI
PoE ports No
Supported IP cameras Golmar, ONVIF
Refresh recordings (per channel) 5MP-Lite:20fps
4MP-Lite: 25fps
1080P / 720P: 25fps
IP: 25fps
Maximum input bandwidth 4Mbps - 20Mbps (plus 4Mbps per channel override)
Maximum output bandwidth 32Mbps
Recording method Manual, programmed, motion detection
Video analysis (VA) No
Face recognition No
Synchronous playback Yes
PTZ control Yes
UTC Yes
RS-485 No
I/O Audio No
AOC Audio Yes
Alarms No
USB 2 rear
Network interface RJ45
Hard disk included 1Tb (supports up to 10Tb)
Disk Bays 1
Free disk bays 0
Remote access GolmarView, VMS Pro App for PC
Operating temp. -10°C~+50°C
Power Consumption 12W
Power consumption 12Vdc / 2A included
Dimensions 230 x 215 x 47mm
Weight 1Kg
Remote access GolmarView, VMS Pro App for PC
Operating temp. -10°C~+50°C
Power Consumption 12W
Power consumption 12Vdc / 2A included
Dimensions 230 x 215 x 47mm
Weight 1Kg
