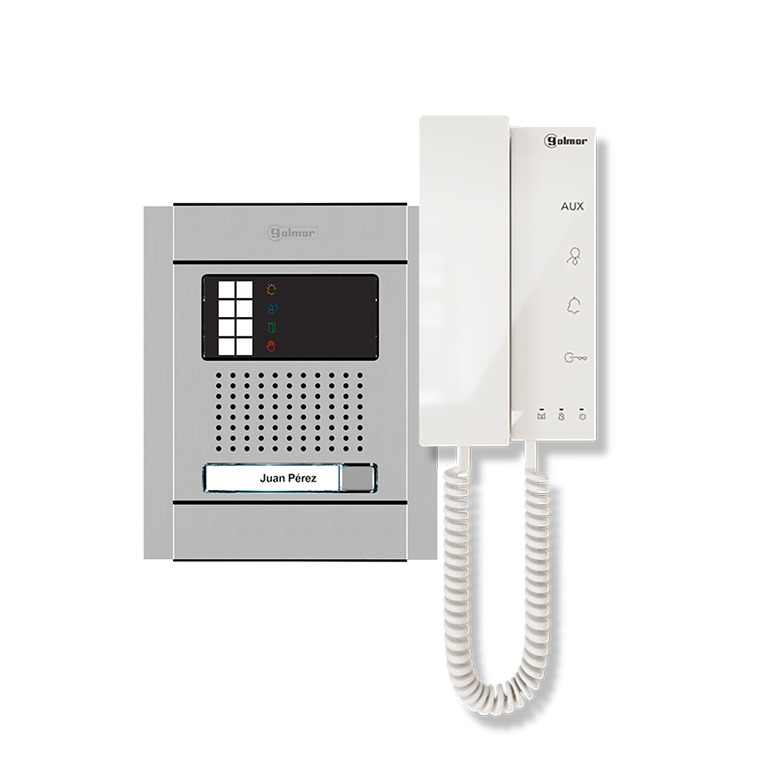

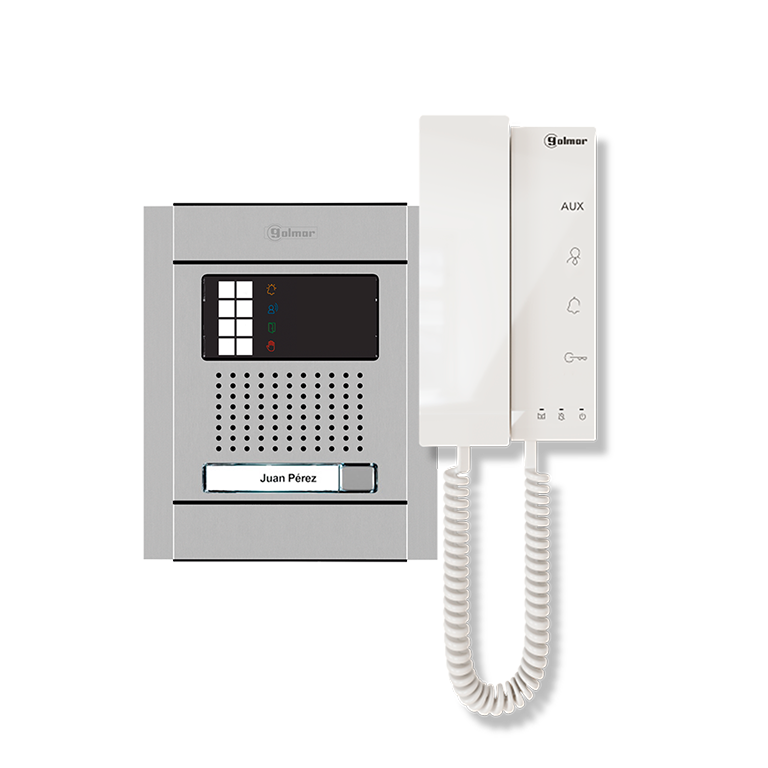

N4101/T-ART 1P one way audio kit

Reference : N4101/T-ART

Product code: 12404101

EAN code : 8429898022901

Nexa audio door phone kit with 2-wire technology.

Composed of:



Supports up to 4 panels using the DPM-G2+ switch and 4 units in the same apartment without additional power.

Use with 12V DC electric lock release.

More information

Characteristics of the telephone:

  • Casing manufactured in ABS RAL9003 white colour.
  • Detachable telephone cord with connectors.
  • Privacy on audio and door open progresses.
  • Input for door bell apartment push button.
  • Different call reception tones depending where the call is coming from.
  • Two positions call volume regulator with on-off function.
  • Possibility to automatically activate the lock when a call is received.
  • Additional push button can be used to activate a second lock connected to the door panel, to intercom within the same apartment and to activate the staircase lights when using a SAR-GB2 digital relay unit.
  • Output for activation of a SAR-12/24 relay unit during call reception.



Dimensions: 85(W) x 221(H) x 56(D) mm.



Characteristics of the panel:

  • Extruded aluminium door panel.
  • Vocal messages and colour icons to indicate the different states of the system (call in progress, in communication, door opening or occupied system).
  • Privacy on audio and door open progresses.
  • Relay outputs for activation of two doors.

Dimensions: 128(W) x 256 (H) mm.
