Kit comunitario de vídeo para 22 viviendas N5222/ART 4 XLITE 22P
Reference : N5222/ART 4 XLITE
Product code: 12415222

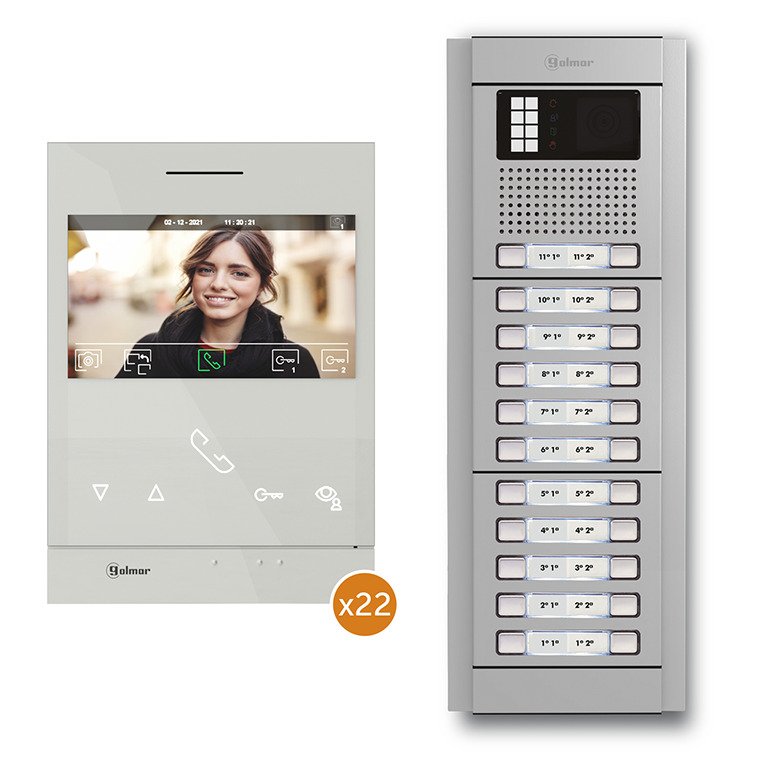

Video pack with digital installation "G2+" for 22 apartments.
Composed of:
- N1000/AL grille module.
- N3210/AL pushbutton module.
- EL632/G2+ camera module.
- EL610D 10P pushbutton electronic module.
- Assembling set N6003/AL.
- Embedding box CEV-90.
- Power supply FA-G2+.
- ART 4 XLITE/G2+ hands-free monitors.
- D4L-G2+/SMALL video distributors.
Supports up to 4 panels using the DPM-G2+ switch and 4 units in the same apartment without additional power.
Use with 12V DC electric lock release.
Characteristics of the panel:
- Extruded aluminium door panel.
- Wide-angle colour camera (104°).
- LED lighting controlled by digital image processing.
- Vocal messages and colour icons to indicate the different states of the system (call in progress, in communication, door opening or occupied system).
- Privacy on audio, video and door open progresses.
- Relay outputs for activation of two doors.
Dimensions: 128(W) x 358 (H) mm.
ART 4 XLITE/G2+ MONITOR
Hands-free monitor for surface installation.
4.3" screen with capacitive navigation buttons.
High efficiency loudspeaker.
Audio communications, video and secret door opening.
Video-spy functions, auto-start, and do not disturb.
Intercommunication with other units of the apartment selectively.
Selectable ring tones.
Connection to the entrance door push button, which saves the use of the doorbell.
Output to auxiliary call repeater.
Dimensions: 110(W) x 155(H) x 14(D) mm.
Up to 4 monitors in the same apartment without additional power supply.
