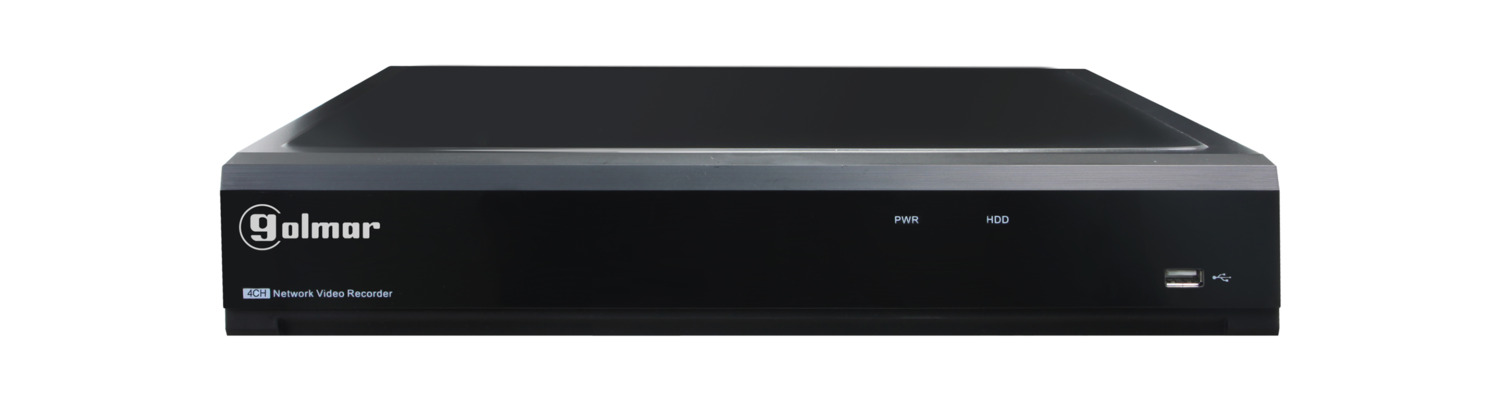

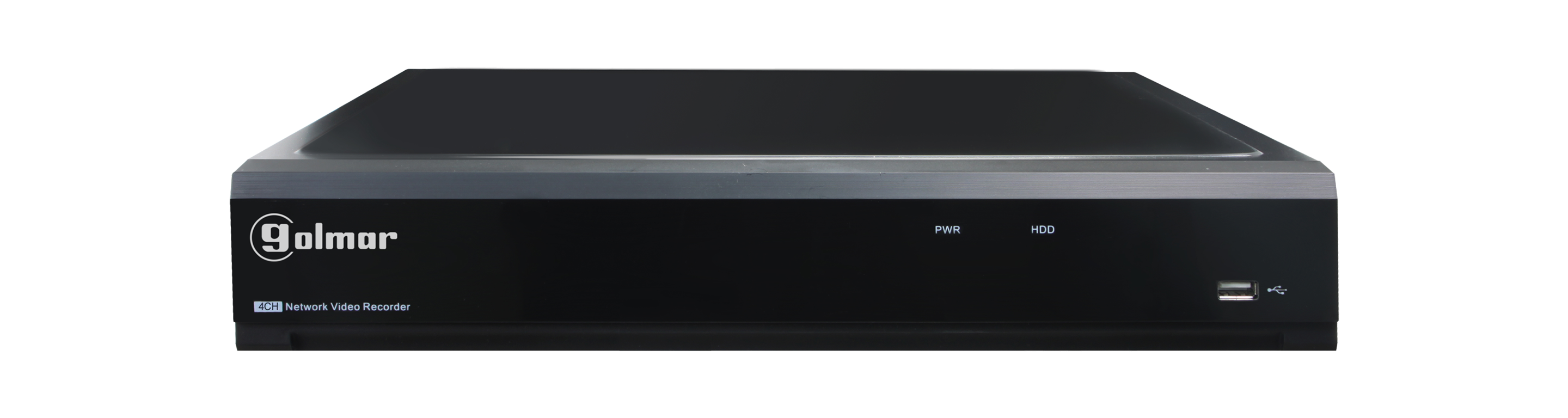

NVR-204P PoE 4ch professional recorder

Reference : NVR-204P

Product code: 31601045

EAN code : 8429898024059

  • 4 IP video channels
    Incorporates 4 rear PoE ports
    Maximum resolution: 4K
    Bandwidth: 50 Mbps
    VGA and HDMI outputs (4K)
    Advanced video analytics
    1 SATA port
    1Tb hard drive included
    GolmarView App
    VMS Pro software
    Dimensions: 300(W) x 53(H) x 227(D) mm

More information
Type NVR
Video compression format H.265/ H.264
Audio compression format G.711a
IP video channels 4
Hybrid configuration No
Video Outputs HDMI / VGA
PoE ports 4
Compatible IP cameras Golmar, ONVIF
Refresh recordings 4K: 45fps, 4MPx: 90fps, 2MPx: 180fps
Maximum input bandwidth 50Mbps
Maximum output bandwidth 64Mbps
Recording method Manual, programmed, motion detection, VA
Video analysis (VA) Yes
Face recognition No
Synchronous playback Yes
PTZ control Yes
I/O Audio RCA audio output
Alarms 4E / 1S
Network interface RJ45
Hard disk included 1Tb (supports up to 8Tb)
Disk Bays 1
Free disk bays 0
Remote access Web Browser, GolmarView App, VMS Pro for PC
Operating temp. 0°C ~ +40°C
Power Consumption 57 W max.
Power consumption 48Vdc / 1.2A
Dimensions 300 x 227 x 53 mm
Weight 1Kg
