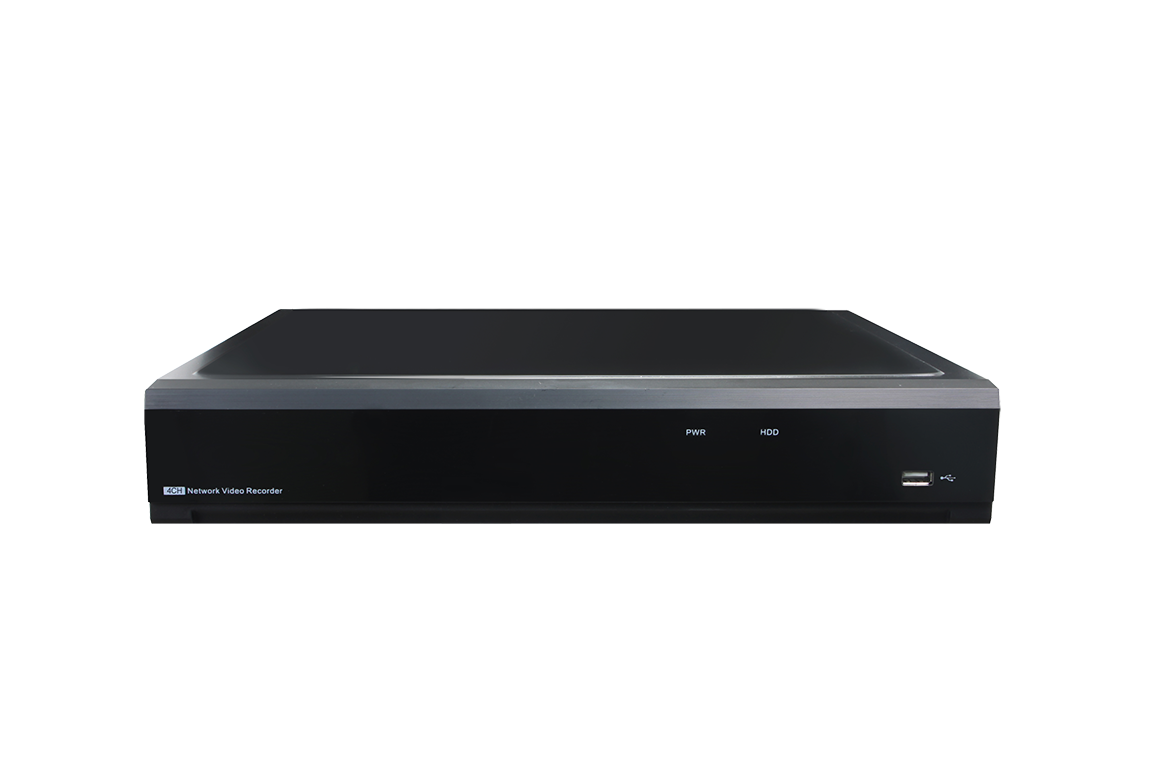

IP recorder NVR-216P 16 PoE channels, 2TB
Reference : NVR-216P
Product code: 31601047
EAN code : 8429898024592
- NVR recorder for 16 IP cameras
16 IP video channels
Built-in 16 rear PoE ports
Maximum resolution: 4K
Bandwidth: 112 Mbps
VGA and HDMI outputs (4K)
Advanced video analytics
2Tb hard drive included
1 free SATA port for expansions
GolmarView App
VMS Pro software
Dimensions: 300(W) x 53(H) x 227(D) mm
More information
| Specifications | |
|---|---|
| Type | NVR |
| Video compression | H.264,H.265 |
| Audio compression | G.711a |
| IP video channels | 16 |
| Max. Resolution (MPx) | 8 |
| Video outputs | HDMI, VGA |
| POE ports | 16 |
| Compatible IP cameras | ONVIF,Golmar |
| Refreshment recordings | 8Mpx@45fps , 4MPx@90fps, 2MPx@180fps |
| Maximum input bandwidth (Mbps) | 112 |
| Maximum output bandwidth (Mbps) | 96 |
| Recording method | Manual,Scheduled,Motion detection,Alarmas |
| Video Analysis | LCD,PID,PD,VD,SOD,FD,CC,CD,QD,HM |
| Face recognition | Yes |
| Synchronous playback. | Yes |
| Control PTZ. | Yes |
| RS-485 | Yes |
| I / O alarms | 16/1 |
| USB | 2 x USB2.0 |
| Network interface | RJ45 |
| Hard disk included (TB) | 2 |
| Disc Bays. | 2 |
| Free disk bays | 1 |
| Remote Access / App | Web,App Golmarview,VMS Pro |
| Maximum working temperature (ºC) | 40 |
| Dimensions - High (mm) | 53 |
| Dimensions - Width (mm) | 300 |
| Dimensions - Deep (mm) | 302 |
| Relative humidity work (max.) | 90 |
| Max Disk Memory (TB) | 8 |
| Included power supply | Yes |
| Input voltage (V) | 48Vcc |
| Weight (gr.) | 1920 |
