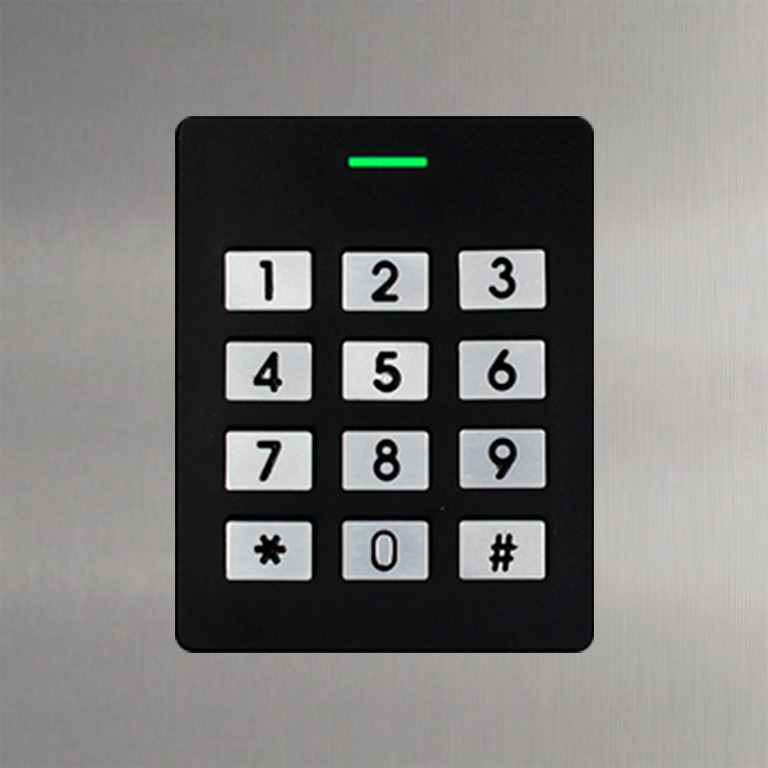

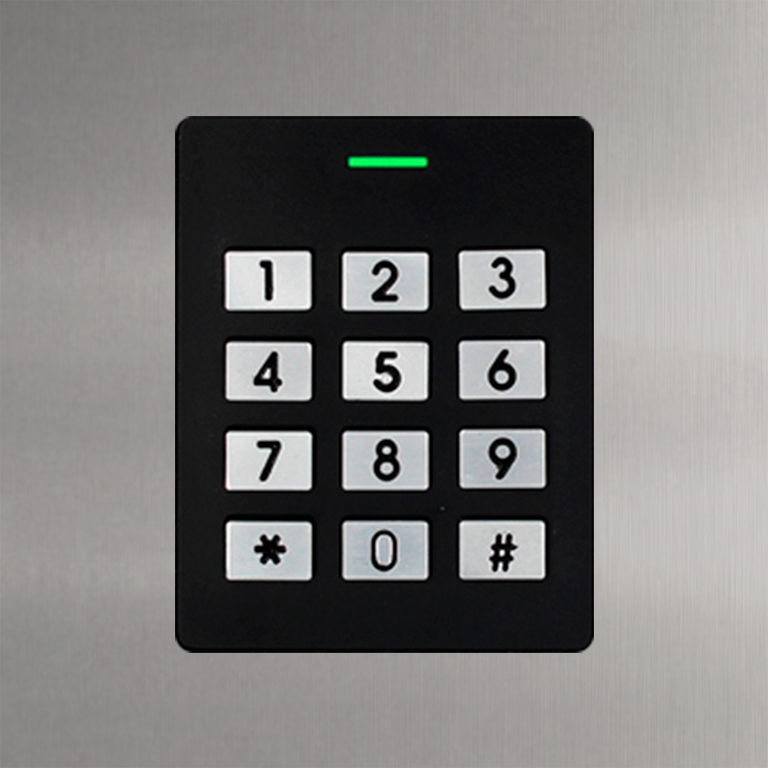

CODEPROX-N reader for Nexa stainless steel panel

Reference : NX3000/CODEPROX-N

Product code: 20700018

EAN code : 8429898025841

CODEPROX-N reader assembled on special NX3000 adapter module.

  • 125KHz waterproof proximity and keypad reader with Wiegand 26 technology
  • For IP OPENER Wiegand controllers or stand-alone operation
  • Capacity for up to 1000 users
  • Admits PROKEY ID and TAGKEY ID cards and fobs
  • Three contact output relay (C, NO and NC)
  • IP66 degree of protection
  • In stand-alone mode requires 12Vdc power supply
Dimensions: 100(W) x 100(H) mm

More information
Specifications
Technology wiegand
Type Function Standalone,Slave
Reading / Detection Type PIN,Proximity
RFID Reading /coverage distance (cm) 6
Use Outdoor,Indoor
Max. Users 990
Mounting Embedded
Incorporates base Yes
State LEDs Yes
Degree of protection (IP) 66
Maximum working temperature (ºC) 60
Minimum working temperature (ºC) -40
Dimensions - High (mm) 62
Dimensions - Width (mm) 48
Dimensions - Deep (mm) 25
Weight (gr.) 343
