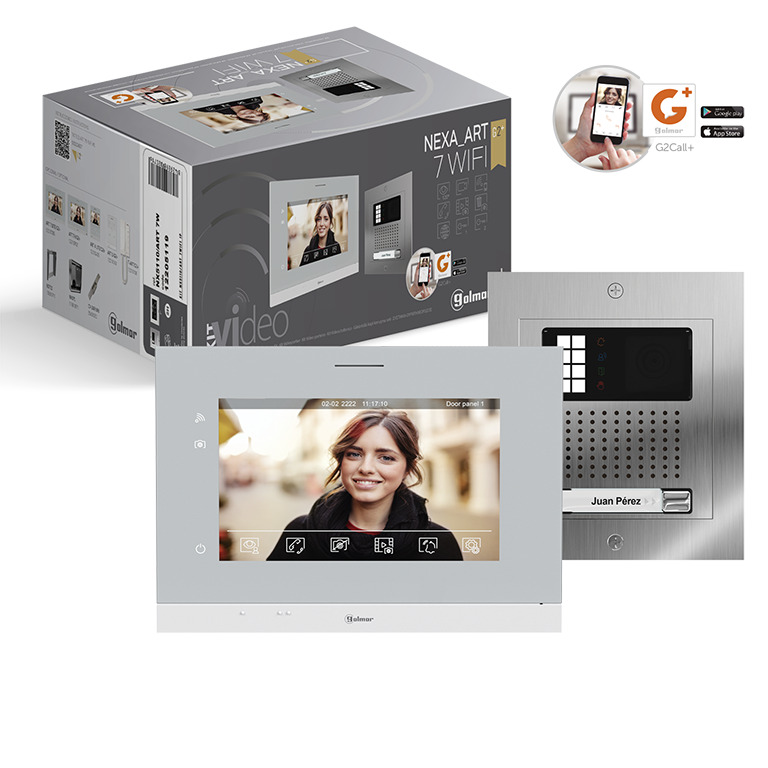

NX5110/ART 7W one line video kit with Wifi
Reference : NX5110/ART 7W
Product code: 12205119
EAN code : 8429898020716
Nexa video door phone kit with 2-wire technology.
Composed of:
- NX1110 one push button grille module.
- EL632/G2+ SE sound module with colour camera.
- NX6001 assembling frame.
- CE610 embedding box.
- ART 7W/G2+ 7" hands-free monitor with Wifi and integrated inductive loop.
- FA-G2+ Power supply.
ART 7W/G2+ MONITOR
Hands-free monitor for surface installation.
7" capacitive touch screen, soft touch buttons.
High efficiency loudspeakers.
Call forwarding through WIFI to smartphones (G2Call+ app, available for Android and IOS).
Audio communications, video and secret door opening.
Video-spy functions, auto-start, doctor mode and do not disturb.
Intercommunication with other units of the house selectively.
Personalization of ring tones.
Connection to the entrance door pushbutton, which saves the use of the doorbell.
Output to auxiliary call repeater.
Image memory, up to 100 photos in internal storage.
Micro SD card slot for video recording.
Functionality of automatic erasure of images after 30 days.
Dimensions: 110(W) x 155(H) x 14(D) mm.
Up to 4 monitors in the same house without additional power.
Power supply FA-G2+.
Use 12V d.c. lock release (does not include lock release).
Recommended lock release: CV-24P/UNI (20600252).
NEXA INOX DOOR PANEL
ANSI 304 stainless steel door panel.
Wide-angle 120º orientable telecamera.
Intensity controlled light emitters through video signal processing.
Voice prompts and coloured icons acknowledge the system status (call in progress, in communication, lock is activated or the system is busy).
Privacy on audio, video and door open progresses.
Two relay outputs for lock and gate activation.
Dimensions:
- External: 134(W) x 148(H) mm.
- Embedded: 125(W) x 140(H) x 56(D) mm.
