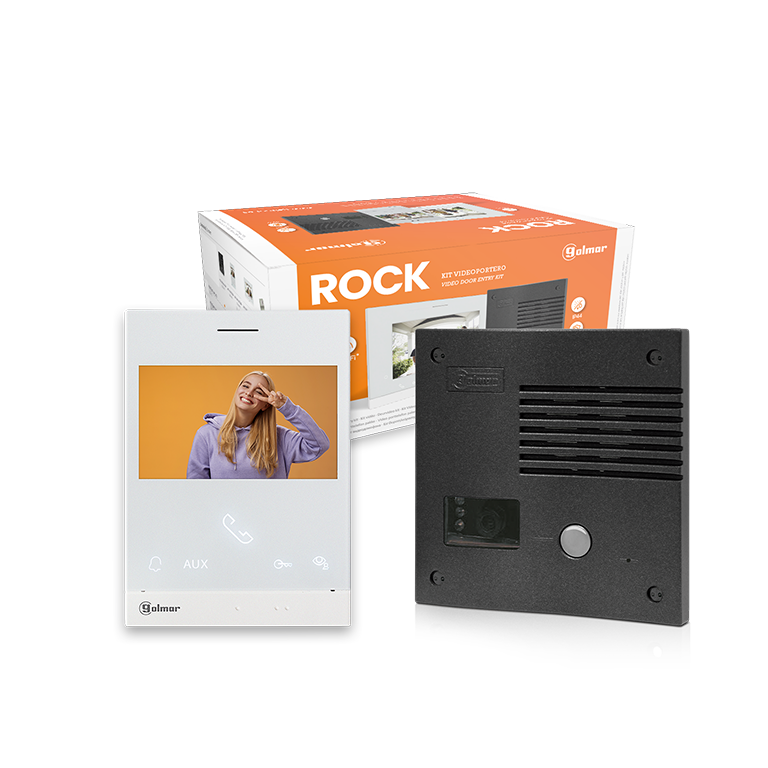

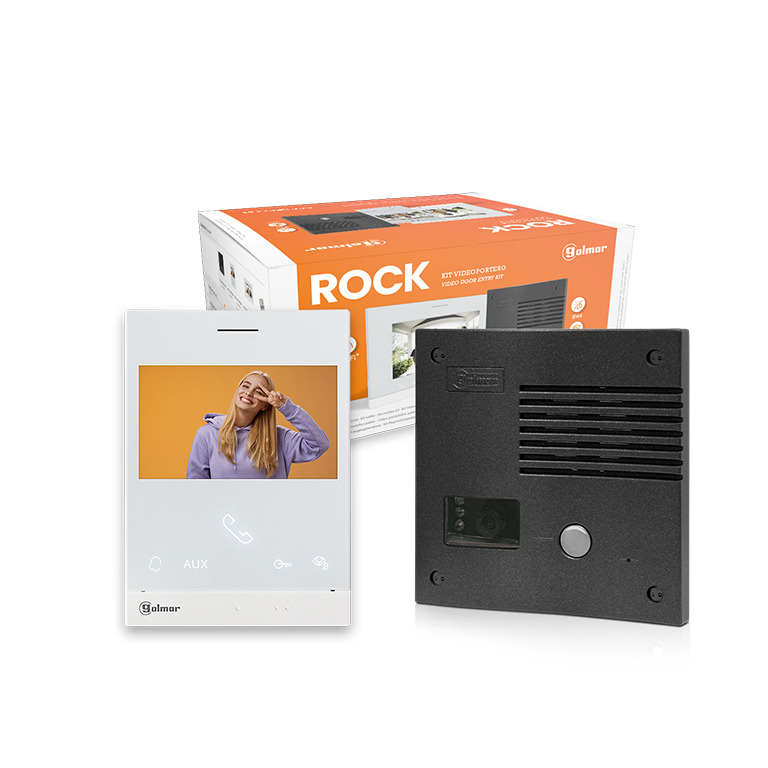

R5110/ART 4 XLITE 1 line video kit

Reference : R5110/ART 4 XLITE

Product code: 12205122

EAN code : 8429898031750

Rock video entry system kit with 2-wire technology.

  • PVS-295/G2+ vandal-resistant entrance door panel with 1 call button.
  • ART 4 XLITE/G2+ hands-free 4.3’ monitor.
  • FA-G2+/LITE power supply.
  • M embedding box.

More information
ART 4 XLITE/G2+ MONITOR
Hands-free monitor for surface mounting.
4.3’ display with capacitive navigation buttons.
High efficiency loudspeakers.
Secret audio, video and door opening communications.
Video spy, auto power-on, Doctor mode and do not disturb functions.
Selective intercommunication with other units in the home.
Personalisation of ring tones.
Connection to the landing door button, which saves the use of the buzzer.
Output to auxiliary buzzer.
Dimensions: 110(W) x 155(H) x 14(D) mm.

R5110/ART 4 XLITE KIT
FA-G2+/LITE power supply included which allows:
1 housing up to 2 monitors and 2 access panels (DPM-G2+ required).
Door opener not included. Recommended:
CV-14P/UNI/SF (20600155)
CV-24P/UNI/SF (20600253)
CV-16P/UNI/SF (20600160)
CV-26P/UNI/SF (20600158)
PVS-295/G2+ ANTI-VANDALISM DOOR PANEL
Manufactured in injected aluminium, graphite colour.
CMOS camera 100º.
Vandal-proof: IK-09 and weatherproof IP-44.
Auto-on LEDs depending on outdoor lighting.
Metallic call button.
Secret audio, video and door opening communication.
Relay output for activation of two doors.
Connection to analogue CCTV camera.
Installation in flush box.
Dimensions: 145(W) x 145(H) x 18(D) mm.
