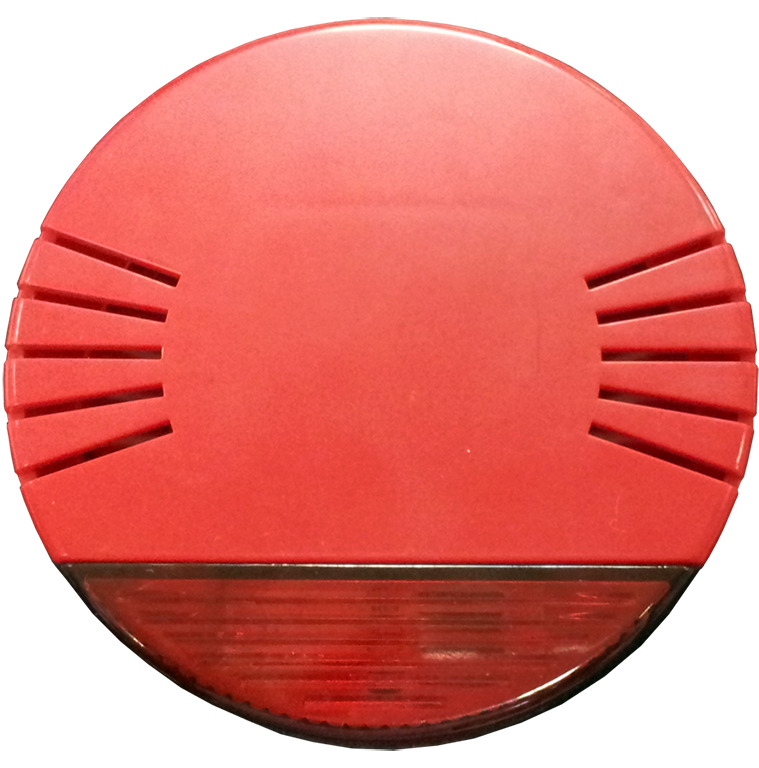

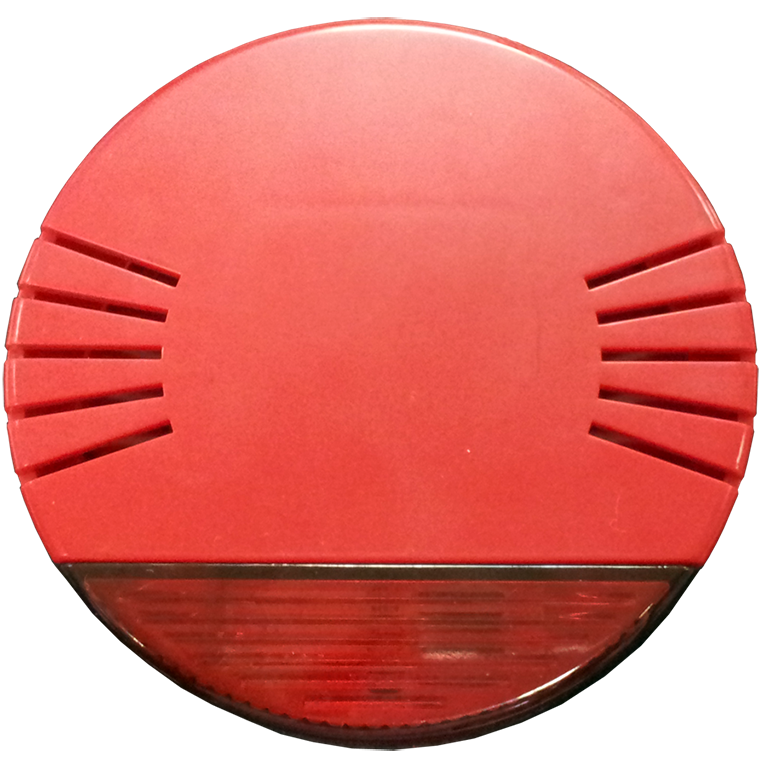

Conventional indoor optical-acoustic siren
Reference : S/4474
Product code: 21141474
EAN code : 8429898026886
- Finished in red heat-resistant ABS plastic
- Sound intensity: 95 dB at 1m
- Selectable acoustic tone
- Power supply: 15 to 30 VDC
- Maximum consumption: 12 mA at 24 VDC
- Certified by Applus
- Dimensions: 110(Ø) x 34(H) mm
More information
| Specifications | |
|---|---|
| Installation | 2 hilos |
| Technology | Convencional |
| Serie | CCG |
| Type of activation | Por la central |
| Signaling | Óptica,Acústica |
| S.P.L. @ with maximum power (db) | 95 |
| Mounting | Pared,Techo,Superficie,Entrada directa |
| Use | Interior |
| Degree of protection (IP) | 21 |
| Dimensions - High (mm) | 34 |
| Weight (kg.) | 0.084 |
