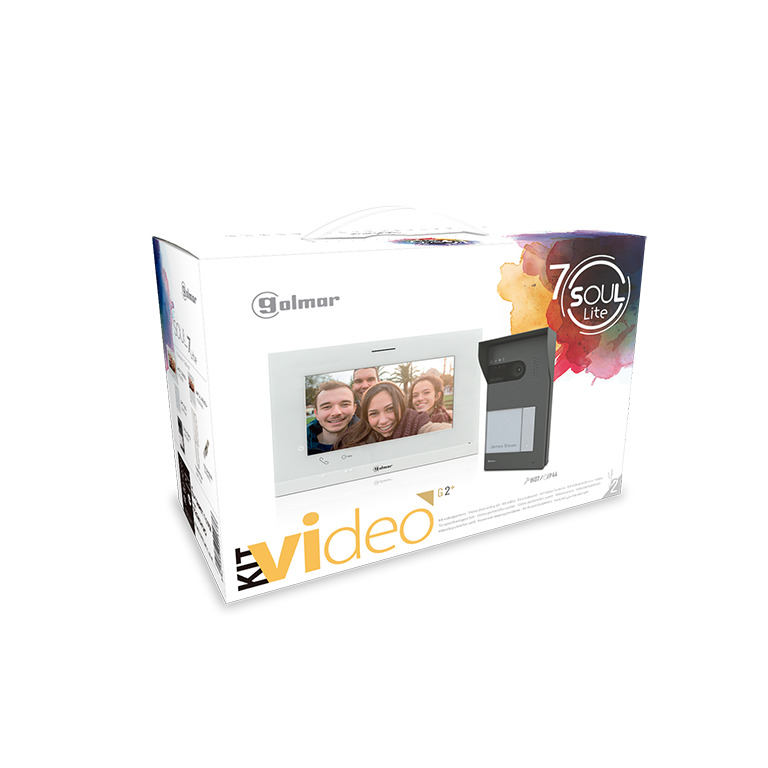

S5110/ART 7 LITE one line video kit
Reference : S5110/ART 7 LITE
Product code: 12205120
EAN code : 8429898022376
Soul video door panel kit with 2-wire technology.
- SOUL/1 LITE vandal-proof outdoor panel for a call button.
- Monitor ART 7 LITE/G2+ 7" hands free.
- Power supply FA-G2+/LITE.
ART 7 LITE/G2+ MONITOR
Hands-free monitor for surface installation.
7" screen with capacitive navigation buttons.
High efficiency loudspeakers.
Audio communications, video and secret door opening.
Video-spy functions, auto-start, doctor mode and do not disturb.
Intercommunication with other units of the house selectively.
Different ring tones selectable.
Connection to the entrance door pushbutton, which saves the use of the doorbell.
Dimensions: 222(W) x 154(H) x 15(D) mm.
Up to 4 monitors in the same house without additional power.
Power supply FA-G2+/LITE.
Use 12V d.c. lock release (does not include lock release).
Recommended lock release: CV-24P/UNI (20600252).
ANTI-VANDAL SOUL-7/LITE PANEL
Zamak front in graphite finish.
CMOS 120º camera.
Vandal resistant (IK-07) and weatherproof (IP-44) door panel.
Auto-start LEDs depending on outdoor lighting.
Color guide icons indicate the different states of the system (call in progress, communication, door opening or occupied system).
Metallic call button.
Secret communication of audio, video and door opening.
Relay output for activation of two doors.
Connection to analog CCTV camera.
Surface installation.
Dimensions: 90(W) x 170(H) x 27(D) mm.
