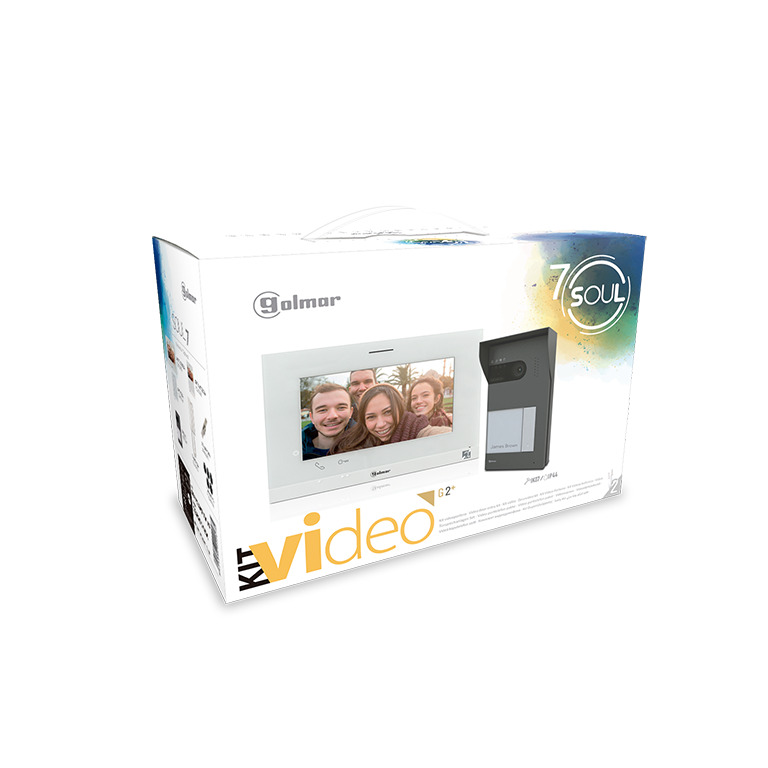

S5110/ART 7H one line video kit

Reference : S5110/ART 7H

Product code: 12205116H

EAN code : 8429898022475

Soul video door panel kit with 2-wire technology.

  • SOUL/1 vandal-proof outdoor panel for a call button.
  • Monitor ART 7H/G2+ 7" hands free with induction loop amplifier.
  • Set of user key chains TAGSET/5 and 2 programming keys.
  • Power supply FA-G2+.

More information

ART MONITOR 7H/G2+
Hands-free monitor for surface installation.
Built in induction loop amplifier, that allows hearing impaired users to activate "T" mode on their hearing aid.
7" screen with capacitive navigation buttons.
High efficiency loudspeakers.
Audio communications, video and secret door opening.
Video-spy functions, auto-start, doctor mode and do not disturb.
Intercommunication with other units of the house selectively.
Different ring tones selectable.
Connection to the entrance door pushbutton, which saves the use of the doorbell.
Output to auxiliary call repeater.
Image memory, up to 100 photos in internal storage. Micro SD card slot for video recording.
Functionality of automatic erasure of images after 30 days.
Dimensions: 222(W) x 154(H) x 15(D) mm.
Up to 4 monitors in the same house without additional power.
Power supply FA-G2+.
Use 12V d.c. lock release (does not include lock release).
Recommended lock release: CV-24P/UNI (20600252).

ANTI-VANDAL SOUL PANEL
Zamak front in graphite finish.
CMOS 120º camera.
Vandal resistant (IK-07) and weatherproof (IP-44) door panel.
Auto-start LEDs depending on outdoor lighting.
Color guide icons indicate the different states of the system (call in progress, communication, door opening or occupied system).
Metallic call button.
Secret communication of audio, video and door opening.
Relay output for activation of two doors.
Connection to analog CCTV camera.
RFID proximity reader for 60 users (includes 2 programming keys and 5 keys for users).
Surface installation.
Dimensions: 90(W) x 170(H) x 27(D) mm.
