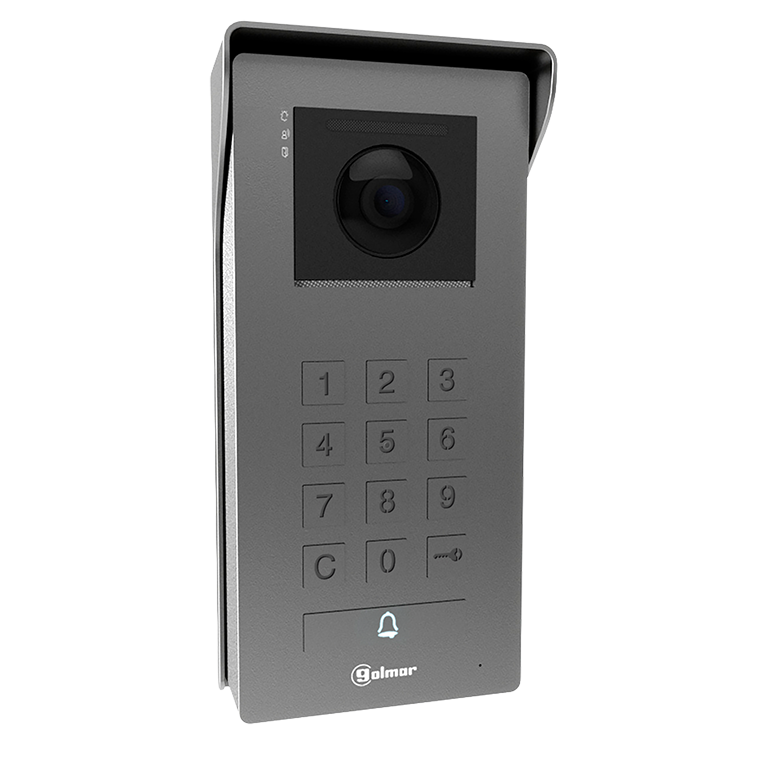

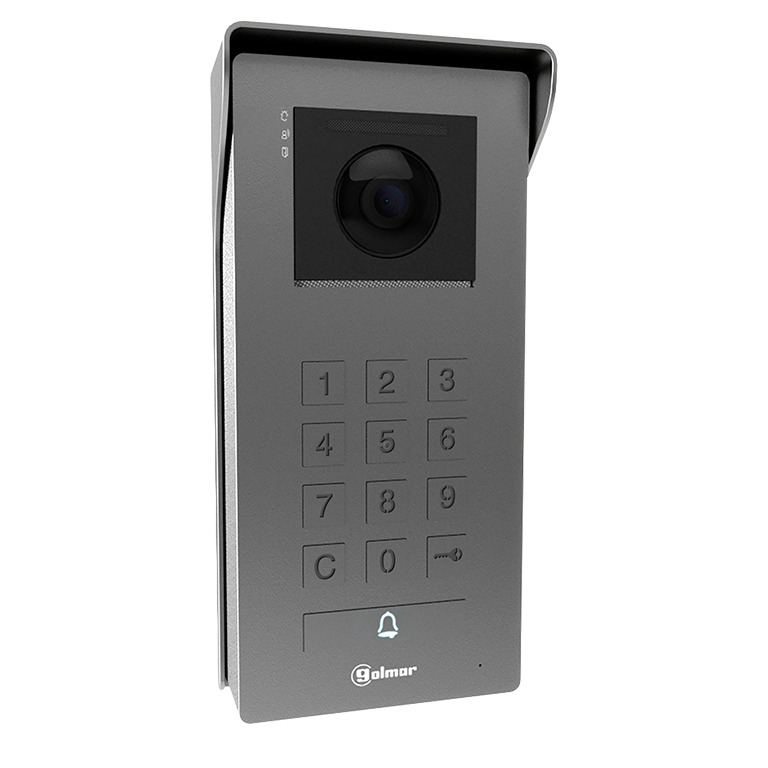

SOUL/ACCESS Coded video panel
Product code: 12225403
- Made of Zamak alloy, graphite color.
- Vandal-proof: IK-07 and IP-54 weatherproof.
- 150º wide angle camera with white auto-on LEDs for night vision.
- LEDs indicating the different states of the system (call in progress, in communication, door opening).
- Backlit metal push buttons with serigraphy of numbers and characters.
- Secret communication of audio, video and door opening process.
- Acoustic confirmation tones when pressing buttons.
- Relay output for the activation of two doors.
- Surface mount.
- Includes rainshield.
Dimensions: 87(W) x 188(H) x 30(D) mm.
- Management of up to 128 appartment address.
- External CCTV camera connection terminals.
- Two relay outputs.
- Removable connection terminals block.
- 40 access PIN codes.
- 8 temporary access PIN codes.
