• CCTV
  • Type of device : Power supplies and accessories

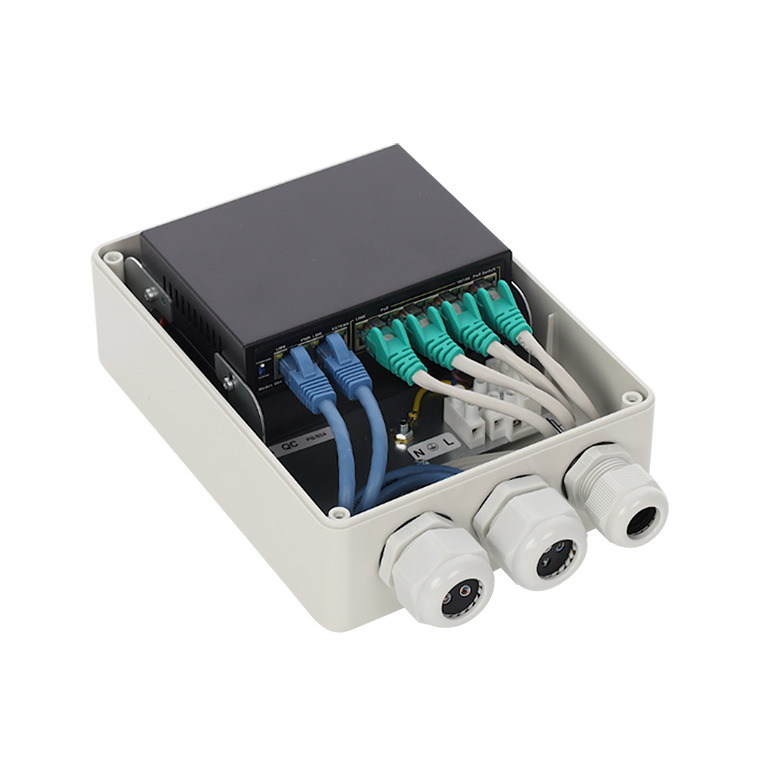

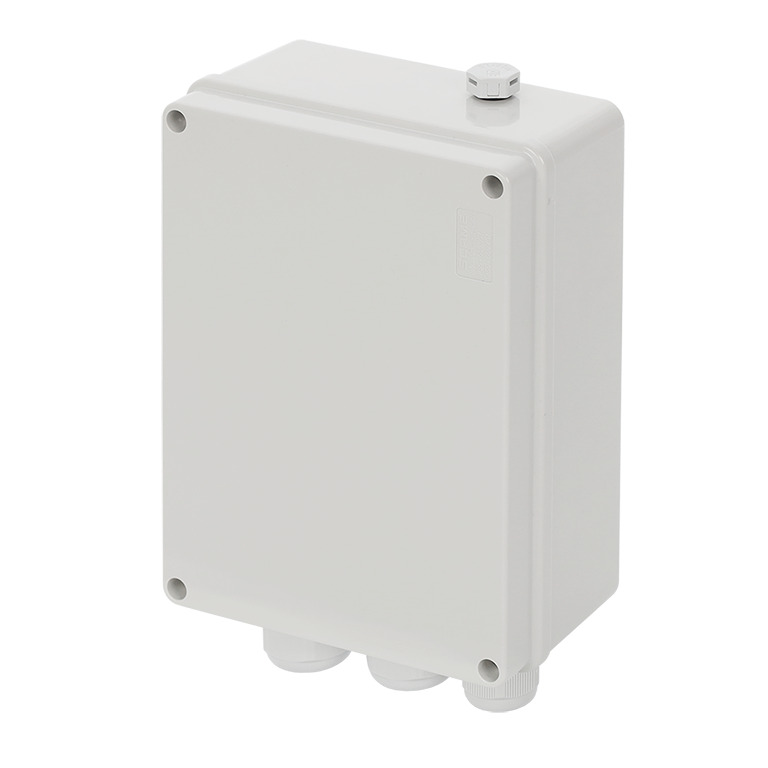

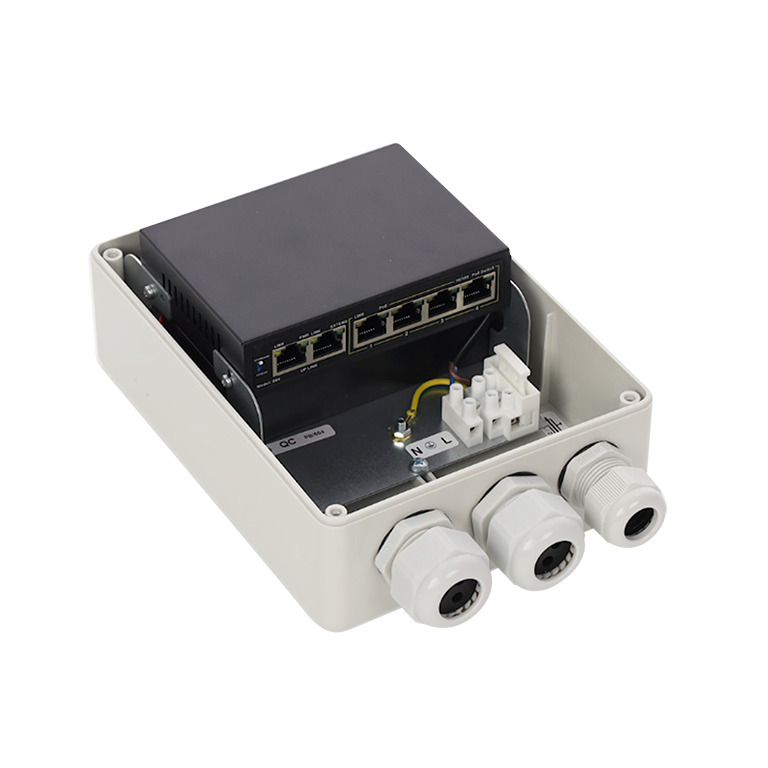

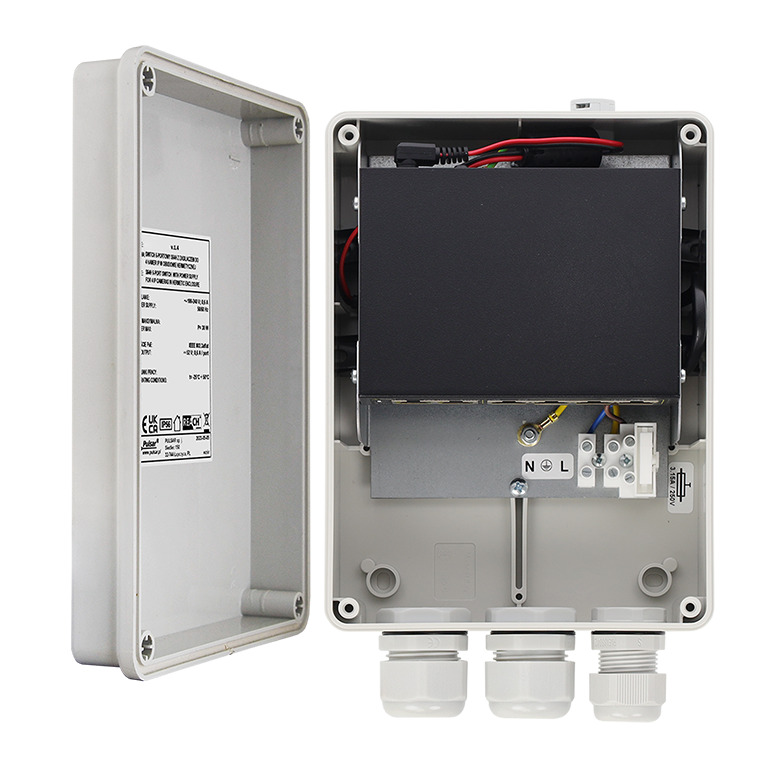

SW-104E 4-Port outdoor PoE switch

Reference : SW-104E

Product code: 31600340

EAN code : 8429898030319

  • 4 x 10/100Mb/s PoE ports
    IEEE 802.3af/at standard
    2 x 10/100Mb/s Uplink ports
    Long distance mode up to 200m
    3 cable glands
    IP56 protection rating
    ABS plastic material
    Operating temperature: -25°C to 50°C (-25°F to 122°F)
    Dimensions 146 (W) x 196 (H) x 78 (D) mm

More information
Network interface RJ45
POE ports 4
Uplink ports 2
SFP ports 0
Tube inputs 3
Material ABS Plástico
Flanges No
Compatibility IEEE 802.3af/at
Supported modes Extended PoE
Electrical protection Short circuit,Overvoltage,Overload
Dimensions - High (mm) 196
Dimensions - Width (mm) 146
Dimensions - Deep (mm) 78
Input voltage (V) 230Vca
Included power supply Yes
