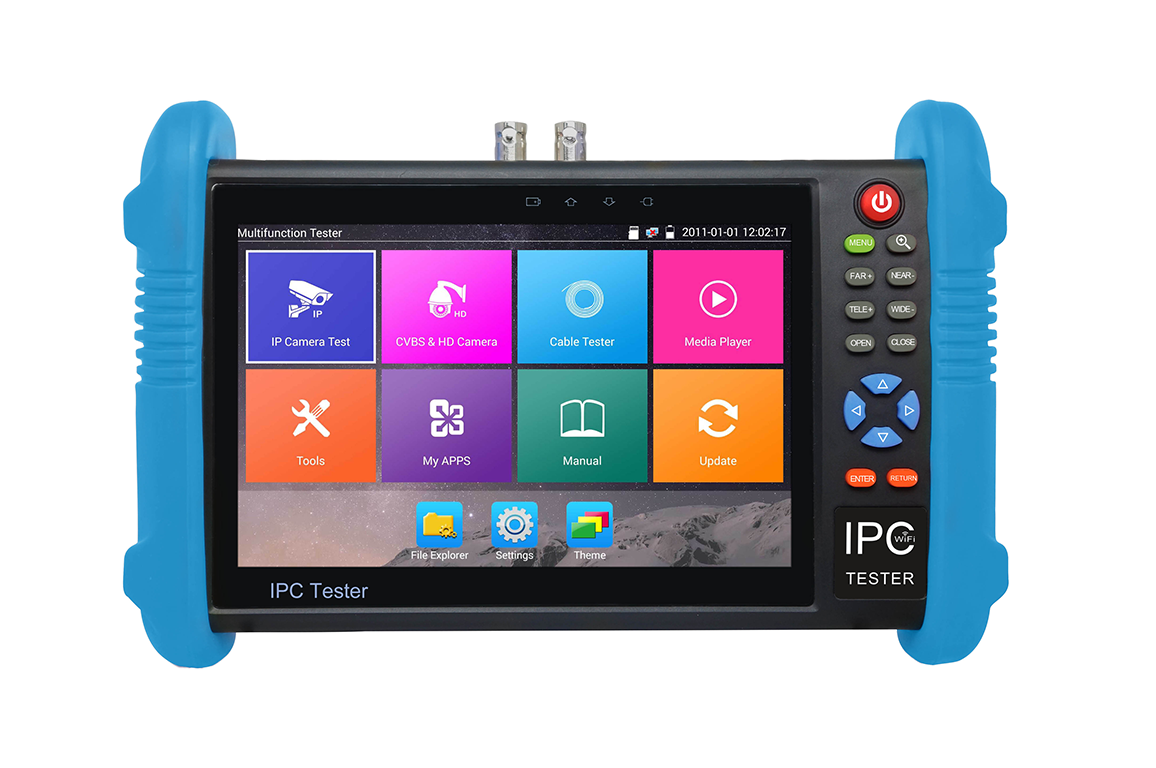

TEST-FULL analogue / IP HDMI installer Monitor

Reference : TEST-FULL

Product code: 31690999

EAN code : 8429898018461

  • Monitor for CCTV installer analog / IP
    Compatible with AHD, CTV, TVI and CVBS
    Compatible with IP cameras up to 4K
    7" touch screen with 1280x800 resolution
    Control of cameras by UTC
    HDMI Input / Output
    Autodetection of IP cameras
    Built-in PoE port
    Cable testing tools
    10h battery life with normal use

More information
Signal  System NTSC / PAL (Auto-Selecting)
Display  New 7 inch IPS touch screen, 1280*800 resolution
IP camera type 4K, H264, H265, Onvif, Onvif PTZ, ACTi, Dahua IPC-HFW2100P, Hikvision, DS-2CD864-E13, Samsung SNZ-5200, Honeywell HICC-2300T
Rapid Video  Auto view the video, create testing report
Hikvision test tool Pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters
Dahua test tool  Dahua camera test, modify the user name, password and IP parameters
Network test FTP Server, Static IP address, DHCP, simultaneously test different segments' IP cameras, Network
bandwidth testing, IP discovery
IP camera apps Support video management software to view IP camera image, such as Hikvision ivms-4500, Dahua, gDMSS HD Lite
RTSP Support RTSP to view IP camera image
LCD adjust Adjustable brightness, contrast, color of LCD
HDMI input 1 channel HDMI input, support 1080P
HDMI signal output 1 channel HDMI output, support 1080P
Network port 10/100/1000M auto adjust, RJ45
Wifi Built in Wifi, speeds 150Mbps, receive wireless camera image etc. Create wifi hotspot
PoE power output PoE 24W power supply to IP camera
Video Input / Output 1 channel BNC input & 1 channel BNC looped output
Video Output Mode 1.0 Vp-p
CVBS loop test The tester send and receive color bar generator signal to check BNC cable
Power Adapter 5V DC, 2A input supply
Power output 12V DC, 2A power output for camera
Audio input 1 channel audio signal input to test pickup device, 1 channel audio signal output to connect headphone
USB power output USB 5V 2A power output to mobile phone
Communication RS485
Baud Rate 150, 300, 600, 1200, 2400, 4800, 9600, 19200bps
Power Saving Features Sleep mode, Battery level indicator
PTZ Address Scanning Scan for local PTZ address over data cables
Rechargeable Battery 6 hours charge, work for 10 hours
Battery 1 pcs Lithium Ion Polymer Battery; 7.4V DC, 5000mAh
Video Display Displays video signal from analog input
Video Signal Color bar generator for monitor testing
Cable Test Checks connections of UTP cables, RJ45 cable TDR test
PTZ Protocol Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, TeleEye etc.
PTZ data Capture Reads and displays commands sent from controllers
Image 4x zoom 4x zoom image display and video out
Photograph Snapshot and save the image as JPG file and screenshot
Video record Video recording and playback from the SD card
Port Finder Find the connected PoE port quickly
IP scan Find out the connected IP camera or network equipment´s IP address
Ping testing Network and Ip camera ping testing
PoE tester PoE voltage testing, PoE port flicker, PoE link monitoring
Night Led Built Led lamp
SD card With 8G Micro SD card, support Micro SD card for recording, max support 32G SD card
Drop-down menu User can select PoE power switch, IP setting, WLAN switch, HDMI IN functions etc in any interface
HD-TVI input 8MP TVI camera test, 3840 x 2160, 15 FPS, image display, zoom, video record and playback, coaxial PTZ
control and call camera OSD menu
HD-CVI input 8MP CVI camera test, 3840 x 2160, 12.5/15 FPS, image display, zoom, video record and playback, coaxial
PTZ control and call camera OSD menu
AHD input 5MP AHD test, 2592 x 1944P, 12.5/20FPS, image display, zoom, video record and playback, coaxial PTZ control and call camera OSD menu
Dimension 240mm x 158mm x 44mm (Tester); 320mm x 290mm x 98mm (Colour box)
Weight 1000g (Tester); 2760g (Tester with spare parts, black package, box)
